Optex DOS-20 - Upper;Lower Limit of Signal Output Range

4-20 mA Setting
16

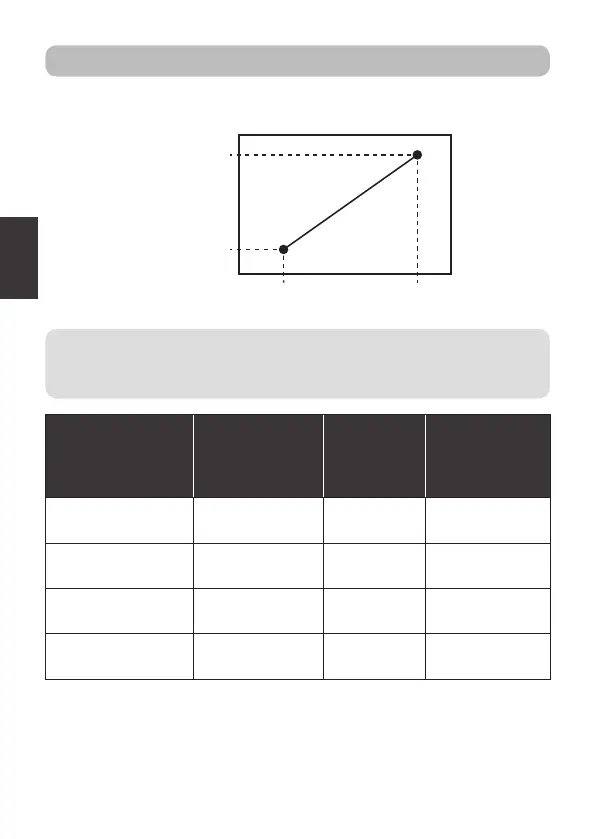

For the item by 4-20 mA signal output, set measurement value to output
at lower limit (Lo, 4 mA) and upper limit (Hi, 20 mA).
20 mA
Signal output
4 mA
Measurement
value at 4 mA
Measurement
value at 20 mA
Output item
[Display]
Factory default
setting
Signal output
range
Lower limit to
Upper limit
Minimum setting
range
Upper limit -
Lower limit
≥
Dissolved oxygen
concentration [DO]
Lower limit: 0.00
Upper limit: 50.00
0.00 to 50.00 2.00
Temperature [Temp.] Lower limit: 0.0
Upper limit: 50.0
0.0 to 50.0 10.0
Dissolved oxygen %
saturation [%Sat.]
Lower limit: 0.0
Upper limit: 200.0
0.0 to 200.0 10.0
Oxygen partial
pressure [O-Press]
Lower limit: 0.0
Upper limit: 150.0
0.0 to 150.0 10.0
For operation, refer to the "Universal Transmitter SC-U1 Operation
Manual", "5.3 4-20 mA Setting", "
◆
Signal output range lower limit"
and "
◆
Signal output range upper limit".
Upper/lower limit of signal output range
The setting unit is based on the display resolution of the item set for the
display item. (For display resolution, refer to “15 Specifications” P.52)
