Opticon
OPI 2201
Specifications Manual
11
Figure 1: Ambient light immunity
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample. Lighting LEDs were kept on
during the test.
PCS: 0.9
Resolution: 0.339 mm
Symbology: QR code
Quiet zone: 90 mm
N/W ratio: 1:2.5
Distance: 150 mm
Angle (see note below): α = 0° β = 75° γ = 0°
Curvature: R = ∞
Power supply voltage: 5.0 V
Direct light or specular reflection from a light source should be prevented from entering
the acceptance area.
Note: α, β and γ respectively represent pitch, skew and tilt. Please see section 8 for how
these values are defined.

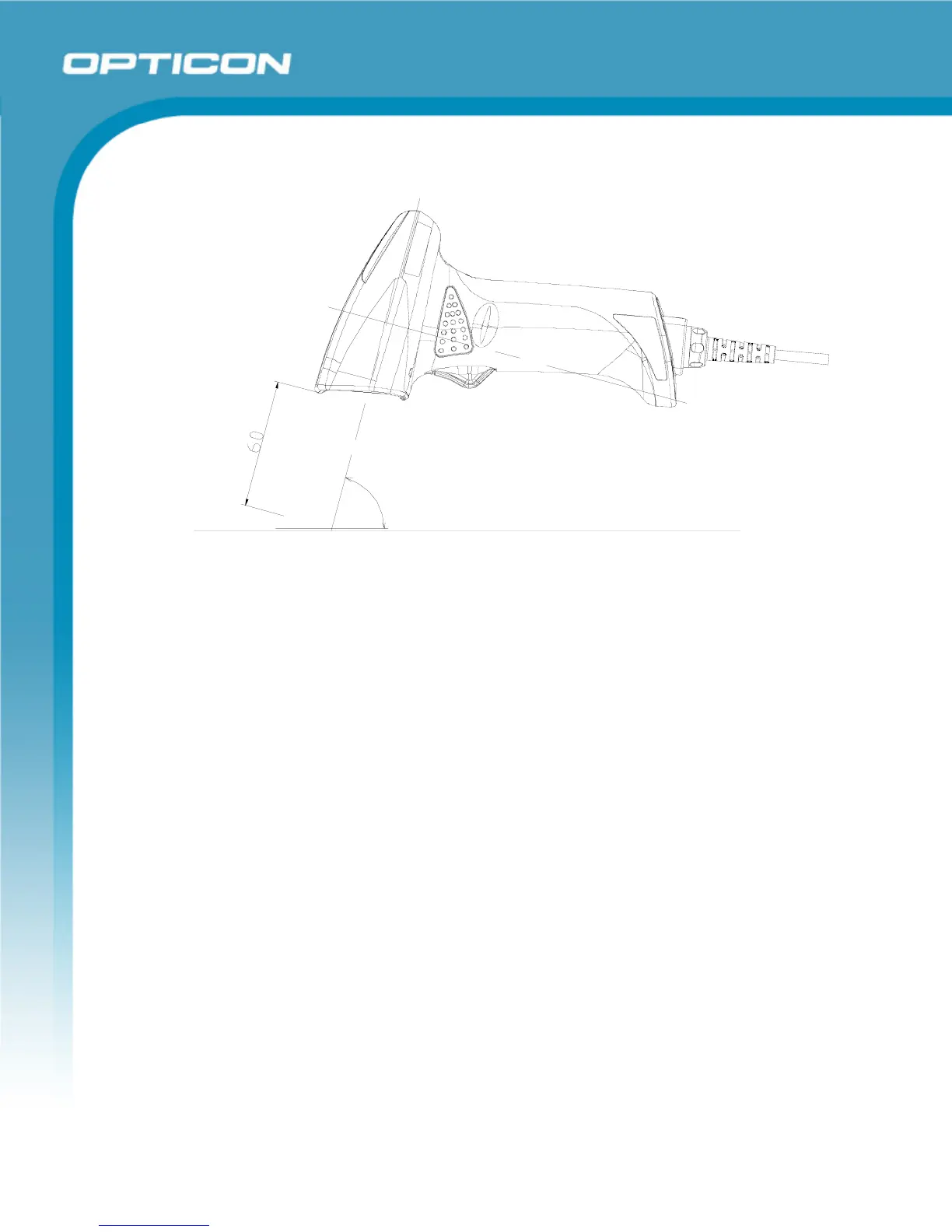

80MM
75°
1D OR 2D SYMBOLOGY
