Opticon

OPI 2201

Specifications Manual

33

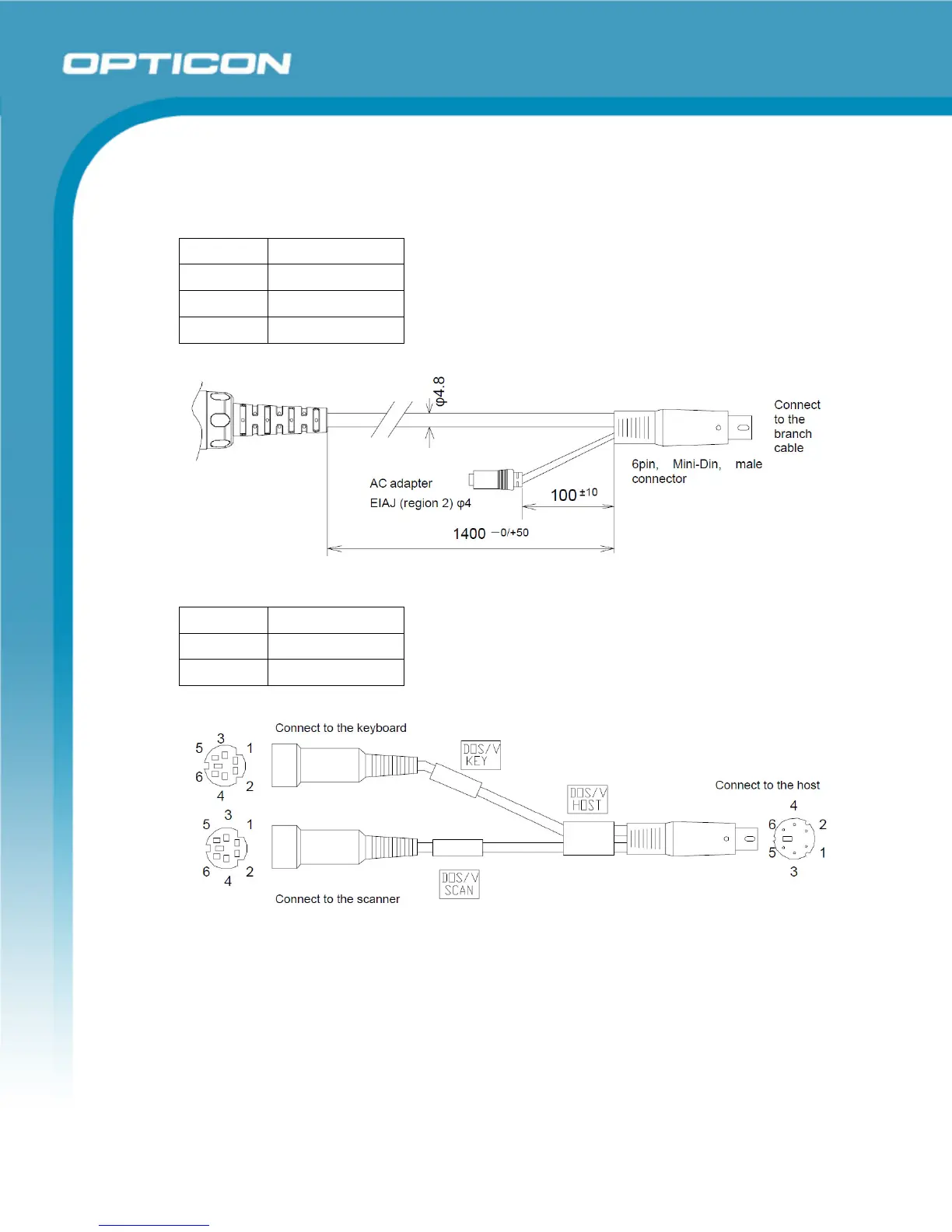

10.3. Wedge Cable

(Standard specification)

Type: Straight

Diameter: Φ4.8 ±0.5 mm

Length: 1400 ±50 mm

Weight: Approximately 75 g

Figure 22: Wedge interface cable

Type: Branch

Length: 100 ±10 mm

Weight: Approximately 25 g

Figure 23: Wedge branch cable
