d) ACK/NAK
After data has been transmitted, the scanner expects to receive one of the
following responses from the host:
ACK response—Action: The scanner completes transmission with the good-
read buzzer and returns to the initial state.
NAK response—Action: The scanner sends the data again and waits for the
response from the host.
DC1 response—Action: The scanner returns to waiting for the trigger, if it has
a trigger (the initial state).
None response—Action: The scanner sounds the error buzzer and returns to
the initial state.
The ACK/NAK timeout is 1 second.

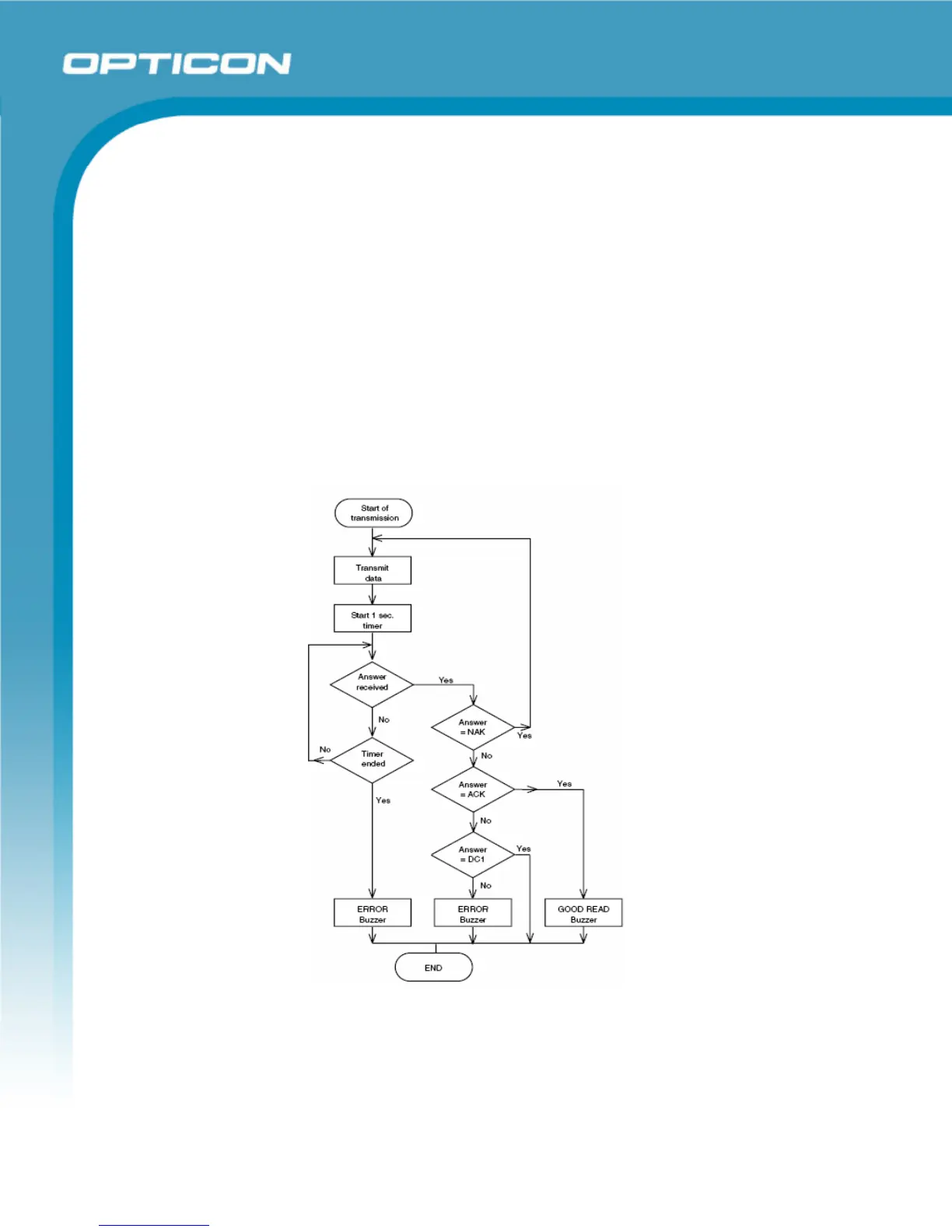

Figure 15: ACK/NAK
