21. Detailed View of the AC Adapter
SFP0602000P-PSE

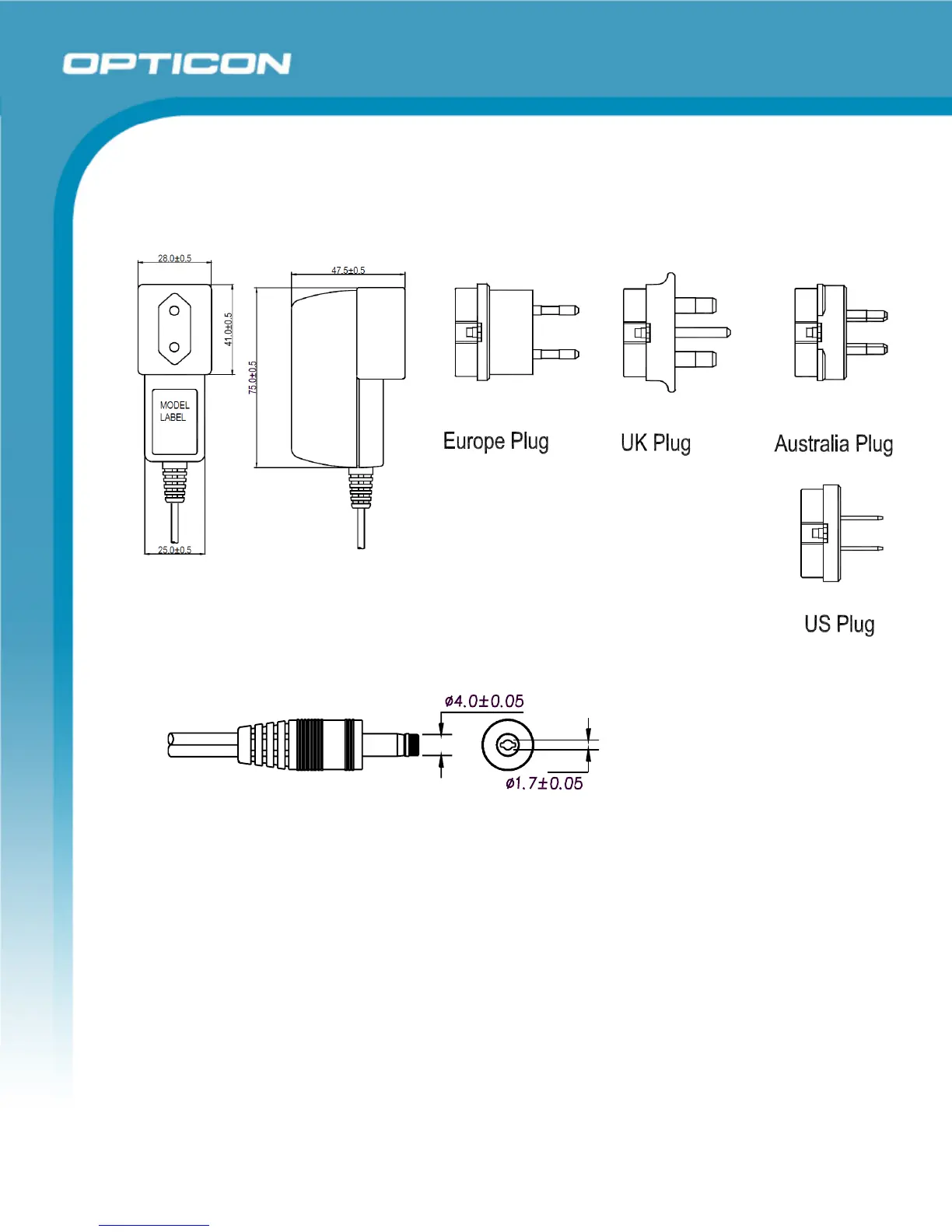

Figure 35: AC adapter (for input side)
Figure 36: AC adapter (for output side: DC jack)
Note: The polarity of the center of DC jack is plus (+).
