Opticon OPI 2201 - Interface Specifications; RS-232 C Interface Spec

Opticon
OPI 2201
Specifications Manual
22
8.6.1. Horizontal motion tolerance
Max. 10cm/s

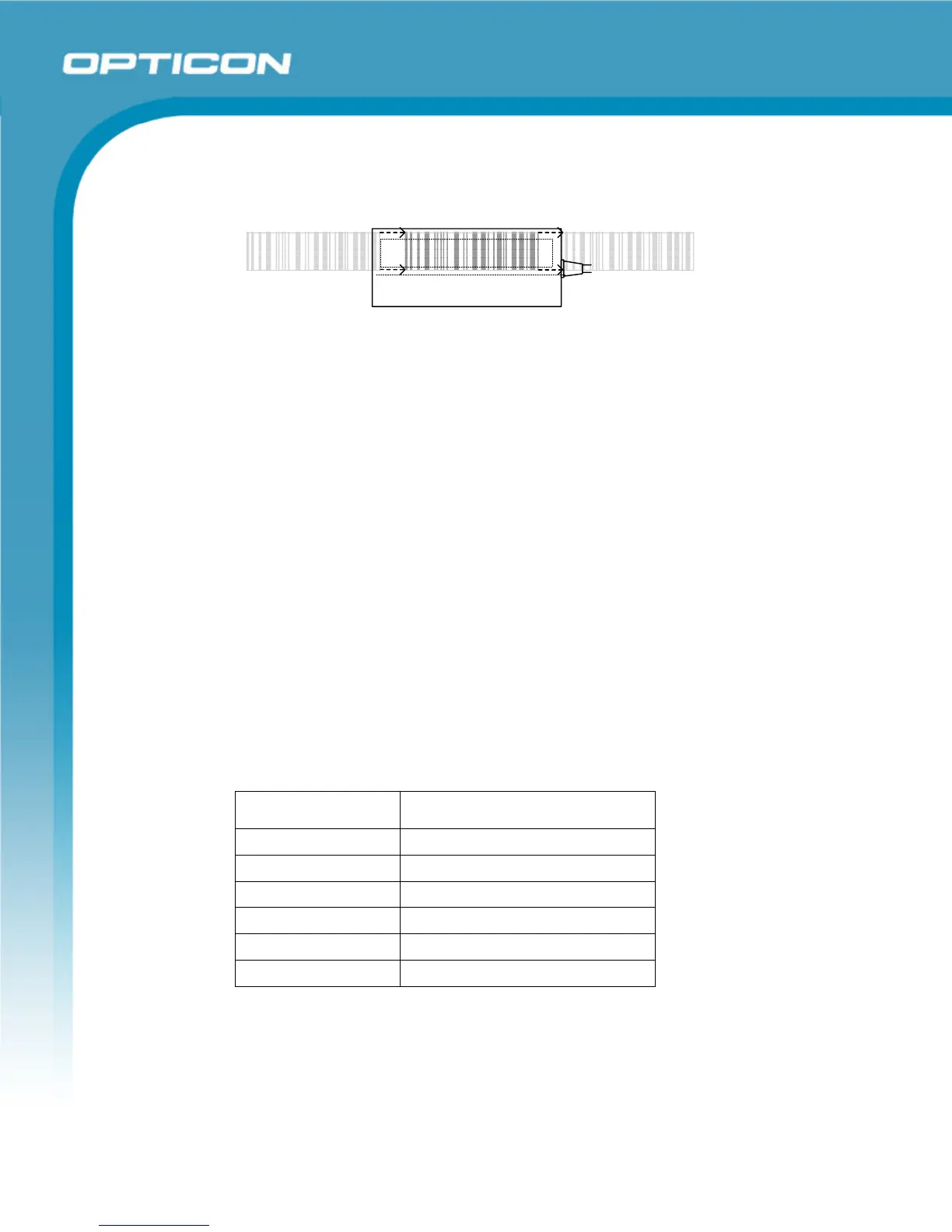

Figure 6: Horizontal motion
9. Interface Specifications
The OPI 2201 supports RS-232C, USB, and Wedge interfaces.
RS-232C interface: Power is supplied to the scanner using an AC adapter via power supply
jack.
Keyboard Wedge interface: Power is supplied to the scanner using an AC adapter via power
supply jack.
USB interface: Power is supplied to the scanner from the USB bus.
Note: Scanner malfunctions caused by the use of AC adaptors not provided by
OPTOELECTRONICS are not covered under warranty.
9.1. RS-232C Interface Spec
9.1.1. Settings and Communication
Reading the menu barcodes in section 11.1 can set the RS-232C interface
default. Kanji codes and image data can be transmitted via the RS-232C
interface.
Parameter [U2] setting
Baud rate 9600 bps to 115.2 kbps
Start/stop bits 1 bit
Data bits 8 bits
Parity bits No parity
Handshaking No handshake
Flow control time out Indefinitely
Communication settings can be configured by scanning corresponding menu
barcodes.
