Opticon
OPI 2201
Specifications Manual
34

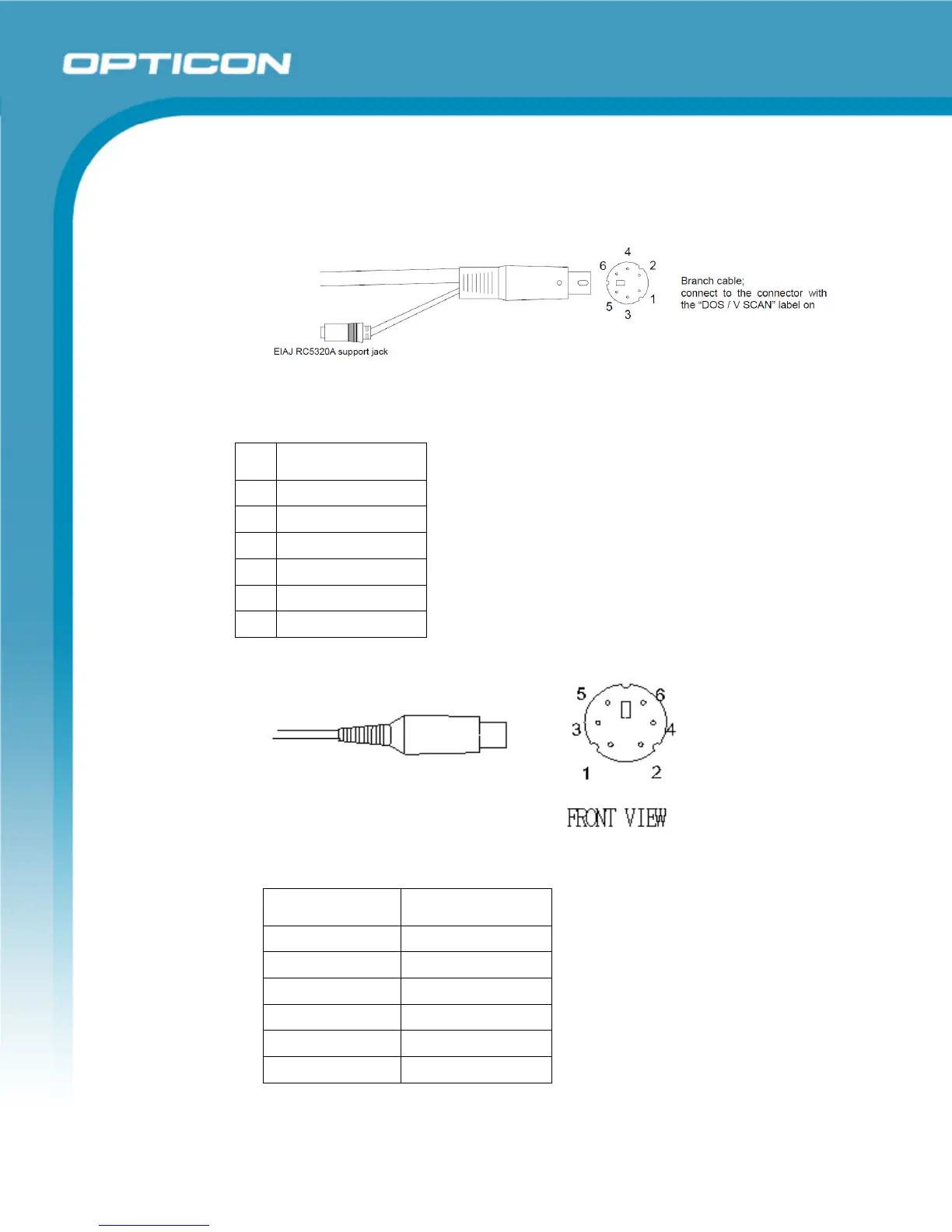

10.3.1. Connectors
a) Type of Connector
Figure 24: Wedge connector
10.3.2. Pin Assignment
Pin Signal
1 CPU DATA
2 KEY DATA
3 GND
4 VCC
5 CPU CLOCK
6 KEY CLOCK
a) DOS/V HOST Side
Figure 25: Front view
Contact Number Signal Name
1 CPU_DATA
2 NC
3 GND
4 VCC
5 CPU_CLK
6 NC
