8.4. Pitch, Skew, and Tilt
8.4.1. Pitch Angle
α = ±45°
8.4.2.
Skew Angle and Dead Zone
Skew angle: β = ±65°
8.4.3.
Tilt Angle
γ = 360°

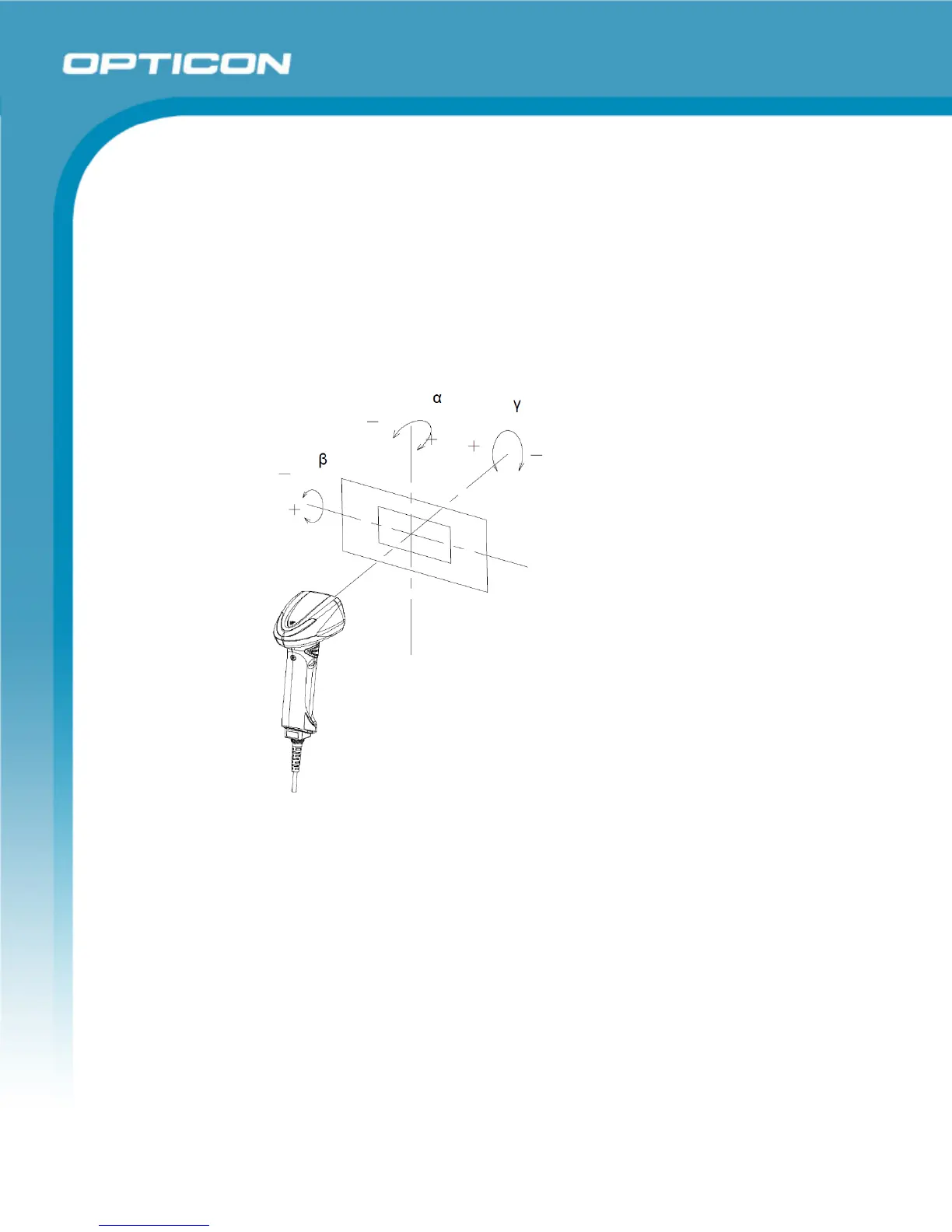

Figure 4: Pitch, skew, and tilt
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
Distance: 120 mm from the edge of the scanner
Label:
Pitch, Skew Angle, Dead Zone
PCS = 0.9, Resolution = 0.254 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm, N/W Ratio = 1:2.5
Angle: Curvature: R = ∞
For the pitch angle measurement, set the skew angle β = 15°. For the tilt angle
measurement, set the skew angle β = 15 when pitch angle is 0° and rotate 1D and
2D barcodes afterwards.
