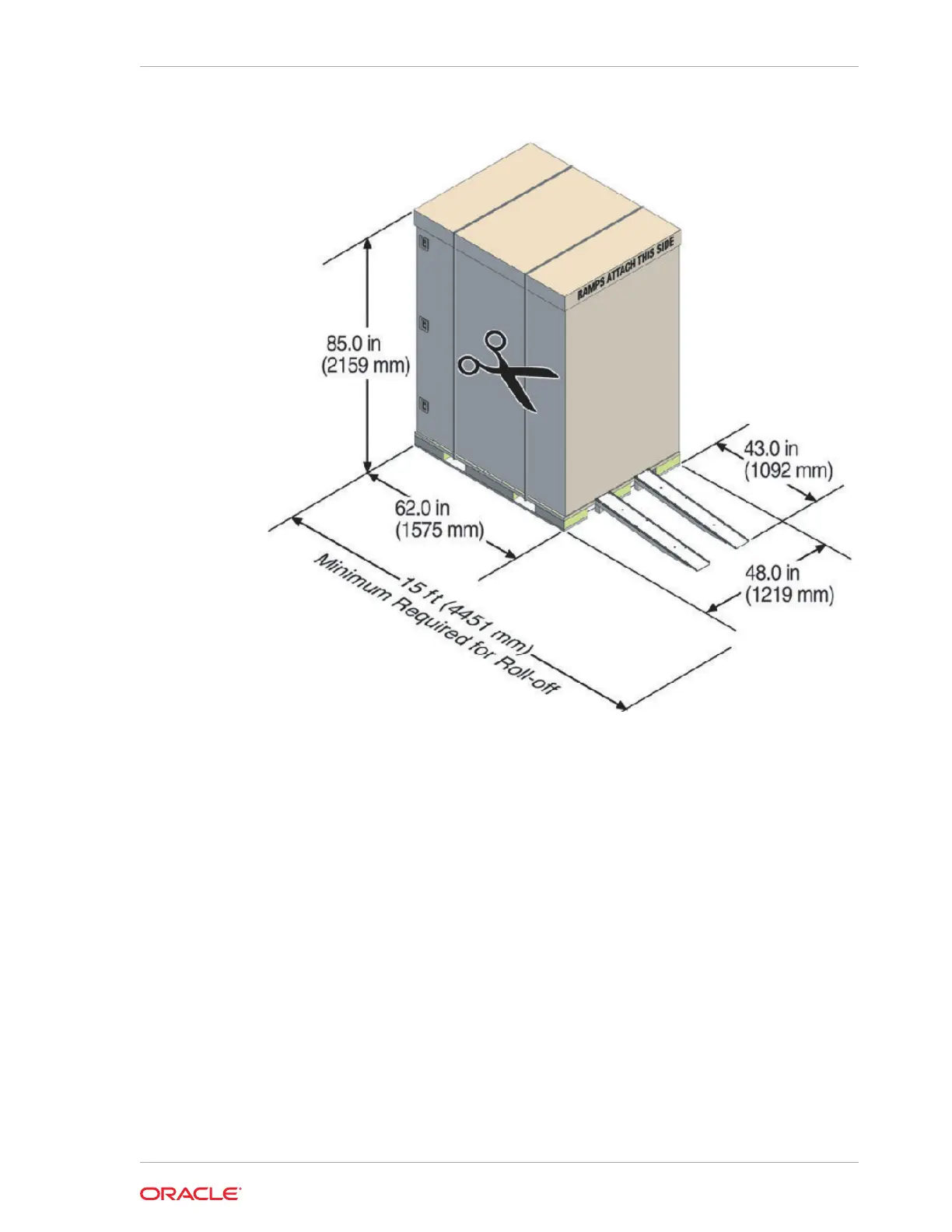

Figure 4-1 Oracle Exadata Rack in Shipping Crate
The shipping kit contains the following tools and equipment to install and service
Oracle Exadata Rack:
• 16 mm long No. 2 Phillips screw
• T30 Torx cranked wrench key
• T25 Torx cranked wrench key
• 6 mm hexagon Allen wrench key
• SW 12 mm single-headed wrench
• 2 square jumper brackets with 4 M5 Torx screws
• 2 cable management hooks with 4 spring nuts
• Side panel removal tool
• Keys to the front door, rear door, and side panel locks
• 32 M6 cage nuts
• 32 M6 screws
• Cage nut mounting tool
Chapter 4
Unpacking Oracle Exadata Rack
4-3
