Installing a ZS5-2 Cable Management Arm
f.

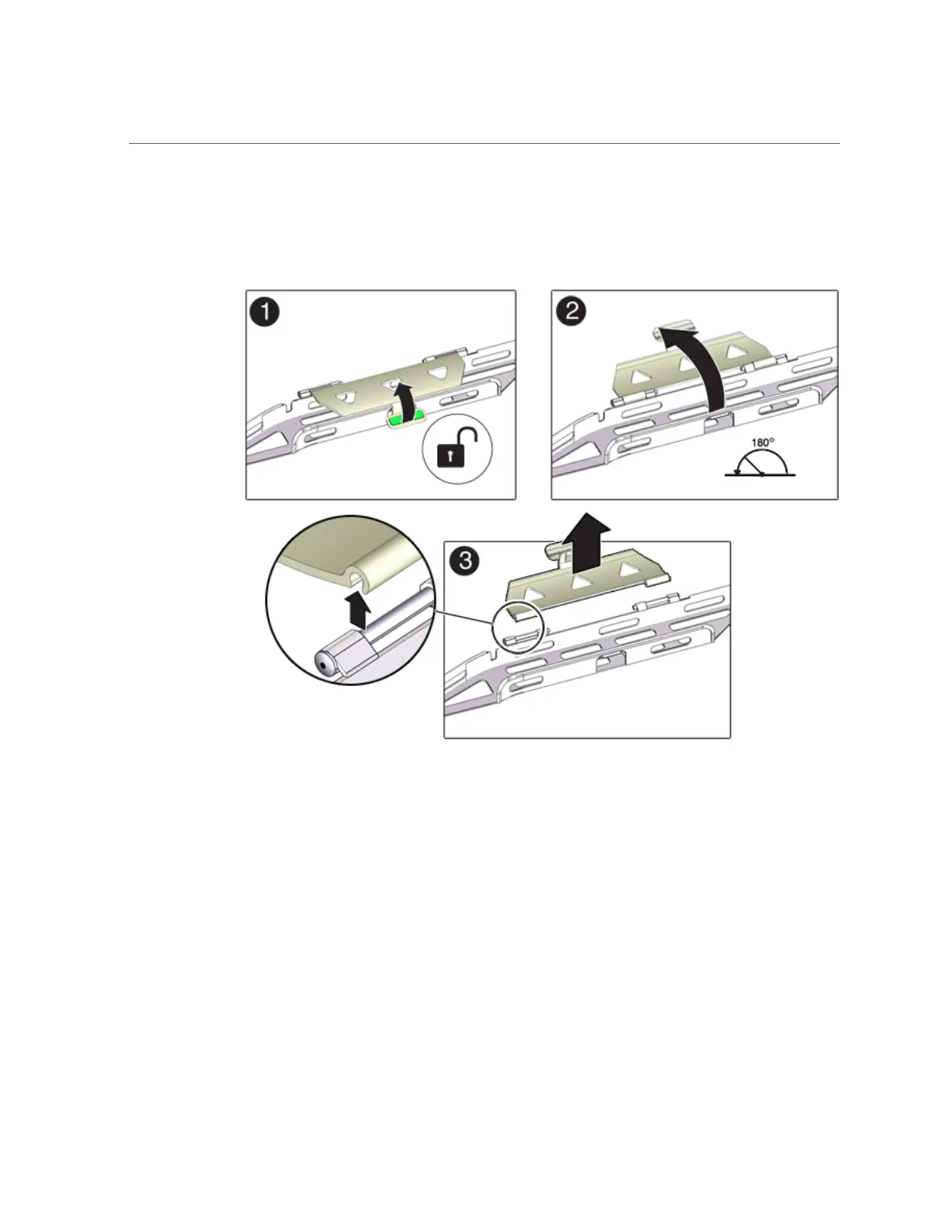

Swing the cable covers down and press down on the cable cover handle to
lock them into the closed position.
3.
Ensure that the six Velcro straps are threaded into the CMA.
4.
To prevent the rack from tipping, ensure all anti-tilt devices on the rack are
extended.
5.
Extend the storage controller approximately 13 cm (5 inches) out of the front of
the rack.
6.
At the back of the rack, insert the CMA's connector A into the front slot on the
left slide-rail until it locks into place with an audible click (frames 1 and 2).
118 Oracle ZFS Storage Appliance Installation Guide • December 2016
