Installing a ZS5-2 Cable Management Arm
The connector A tab (1) goes into the slide-rail's front slot (2). Gently tug on the left side of the
front slide bar to verify that connector A is properly seated.
7.
Support the CMA and do not allow it to hang under its own weight until it is
secured at all four attachment points.
8.

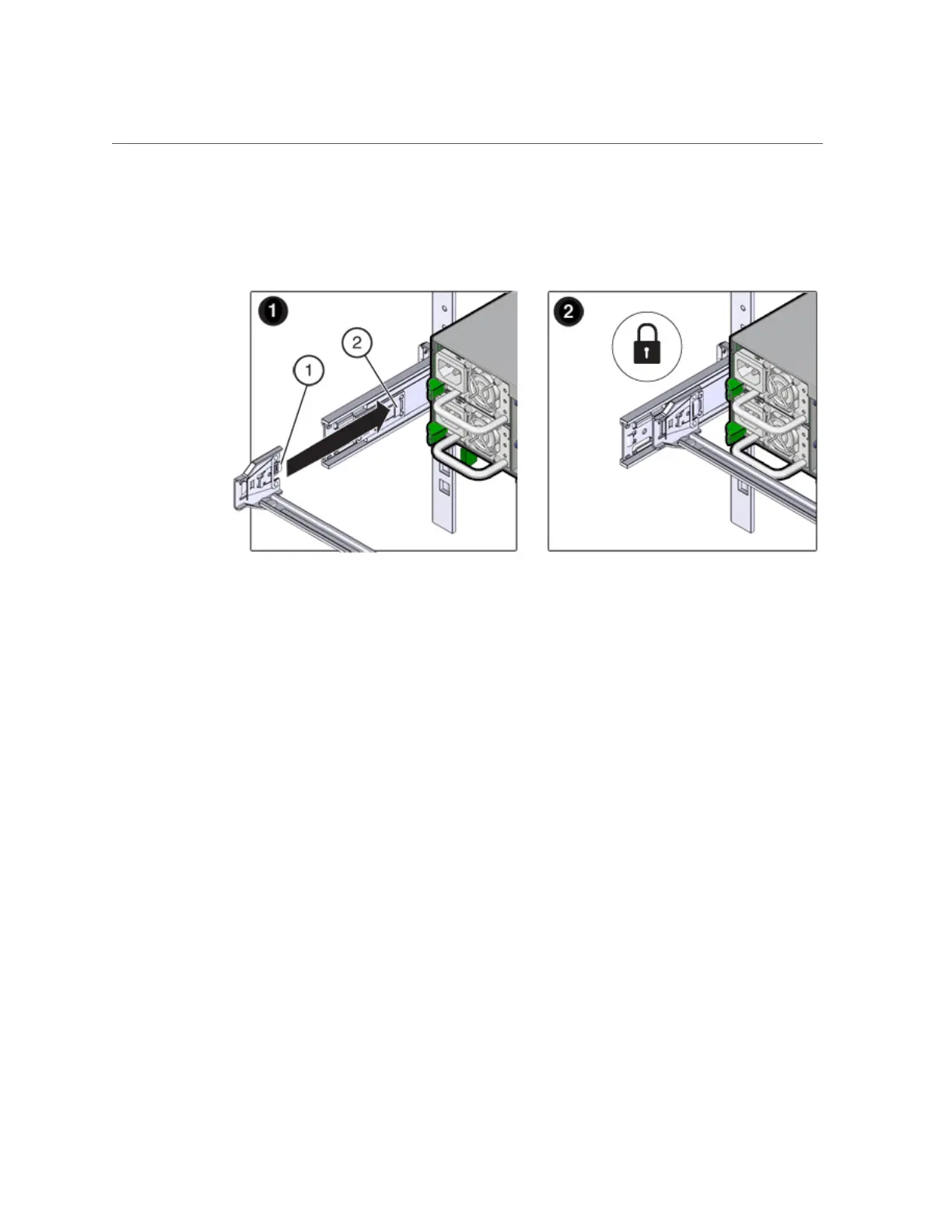

Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click (frames 1 and 2).
