Installing a 7x20 onto the Rack Slide Rails
Example 3
Installing a 7120/7320 onto the Rack Slide Rails

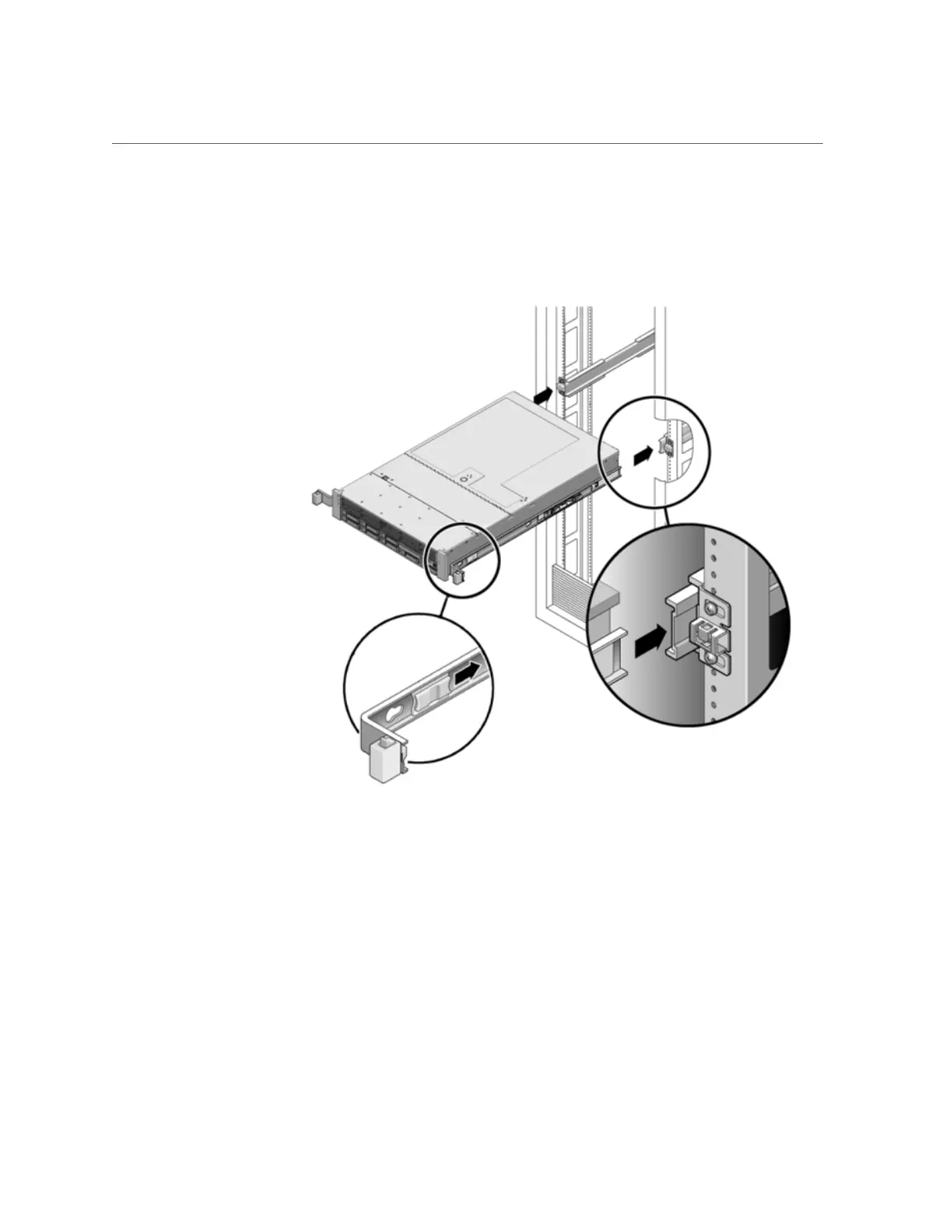

The following graphic illustrates the 7120/7320 chassis insertion and slide rail locks usage.
Example 4
Installing a 7420 onto the Rack Slide Rails
The following graphic illustrates 7420 chassis insertion.
Installing a 7x20 Controller
163
162
164
Table of Contents
Default Chapter
1
Installation Guide
1
Table of Contents
5
Installation Overview
9
Installation Prerequisites and Hardware Overviews
11
Prerequisites for Installation
11
Security Information
12
Safety Information
12
Cabinet and Tool Requirements
12
Disconnecting an RJ-45 Cable
14
Cabinet Configuration Guidelines
15
Cabinet Configuration
15
Load Distribution
15
Cable Lengths
16
Supported Disk Shelf Combinations and Hbas
16
Maximum Disk Shelves Per Controller Configuration
17
Overview of Disk Shelves
19
Oracle Storage Drive Enclosure DE3-24
20
Oracle Storage Drive Enclosure DE2-24
27
Sun Disk Shelf
33
Disk Shelf Components
37
Overview of ZS5-4 Controller
38
ZS5-4 Physical Specifications
38
ZS5-4 Electrical Specifications
39
ZS5-4 Acoustic Noise Emissions
39
ZS5-4 Configuration Options
39
ZS5-4 Front Panel Components
40
ZS5-4 Rear Panel Components
40
Overview of ZS5-2 Controller
42
ZS5-2 Physical Specifications
42
ZS5-2 Electrical Specifications
42
ZS5-2 Acoustic Noise Emissions
43
ZS5-2 Configuration Options
43
ZS5-2 Front Panel Components
43
ZS5-2 Rear Panel Components
44
Cable Management Arm
45
Overview of ZS4-4 Controller
47
ZS4-4 Front Panel Components
47
ZS4-4 Rear Panel Components
48
Overview of ZS3-4 Controller
51
ZS3-4 Electrical Specifications
51
ZS3-4 Configuration Options
51
ZS3-4 Front Panel Components
52
ZS3-4 Rear Panel Components
53
Overview of ZS3-2 Controller
55
ZS3-2 Physical Specifications
55
ZS3-2 Electrical Specifications
55
ZS3-2 Acoustic Noise Emissions
56
ZS3-2 Configuration Options
56
ZS3-2 Front Panel Components
56
ZS3-2 Rear Panel Components
57
Optional Cable Management Arm
60
Overview of 7420 Controller
61
7420 Physical Specifications
61
7420 Electrical Specifications
61
7420 Configuration Options
62
7420 Front Panel Components
63
7420 Rear Panel Components
64
Overview of 7320 Controller
65
7320 Electrical Specifications
66
7320 Base Configurations
66
7320 Front Panel Components
67
7320 Rear Panel Components
68
Overview of 7120 Controller
69
7120 Physical Specifications
69
7120 Electrical Specifications
69
7120 Front Panel Components
70
7120 Rear Panel Components
71
Oracle ZFS Storage Appliance Installation Guide • December
72
Installing Disk Shelves
73
Installing a DE3-24P Disk Shelf
73
Installing a DE3-24C Disk Shelf
77
Installing a DE2-24P Disk Shelf
83
Installing a DE2-24C Disk Shelf
88
Installing a Sun Disk Shelf
93
Installing a ZS5-4 Controller
99
Installing the Slide Rails Onto a ZS5-4
99
Installing the Slide Rails into the Rack for a ZS5-4
100
Installing a ZS5-4 Onto the Rack Slide Rails
102
Installing a ZS5-4 Cable Management Arm
104
Verifying Operation of ZS5-4 Slide-Rails and CMA
106
Installing a ZS5-2 Controller
109
Installing the Mounting Brackets and Slide Rail Assemblies for a ZS5-2
109
Installing a ZS5-2 Onto the Rack Slide Rails
115
Installing a ZS5-2 Cable Management Arm
116
Verifying Operation of ZS5-2 Slide-Rails and CMA
126
Installing a ZS4-4 or ZS3-4 Controller
127
Installing the Slide Rails Onto a ZS4-4 or ZS3-4
127
Installing the Slide Rails into the Rack for a ZS4-4 or ZS3-4
128
Installing a ZS4-4 or ZS3-4 Onto the Rack Slide Rails
130
Installing a ZS4-4 or ZS3-4 Cable Management Arm
133
Installing a ZS3-2 Controller
137
Installing the Mounting Brackets and Slide Rail Assemblies for a ZS3-2
137
Installing a ZS3-2 Onto the Rack Slide Rails
143
Installing a ZS3-2 Cable Management Arm
144
Verifying Operation of ZS3-2 Slide-Rails and CMA
153
Installing a 7X20 Controller
155
Removing the 7X20 Mounting Brackets from Inside the Slide Rails
155
Installing the Mounting Brackets on a 7X20
157
Installing a 7X20 Onto the Rack Slide Rails
159
Installing a 7X20 Cable Management Arm
164
Cabling the Appliance
171
Connecting System Cables
171
Connecting Cluster Cables
172
Connecting Disk Shelf Cables
175
Powering on the Appliance
177
Powering on a DE3-24 or DE2-24 Disk Shelf
177
Powering on a Sun Disk Shelf
178
Powering on a Controller
179
Powering off a Controller
180
Powering off a Disk Shelf
180
Configuring the Appliance for the First Time
183
Configuring the System
184
Performing Initial Configuration (BUI)
187
Performing Initial Configuration (CLI)
201
Troubleshooting Hardware Faults
211
Connecting to Oracle ILOM
211
Oracle ZFS Storage Appliance Installation Guide • December
212
