Oracle ZS5 SERIES User Manual

Connecting Cluster Cables
2.
Connect one Ethernet cable between the Ethernet ports of each controller.

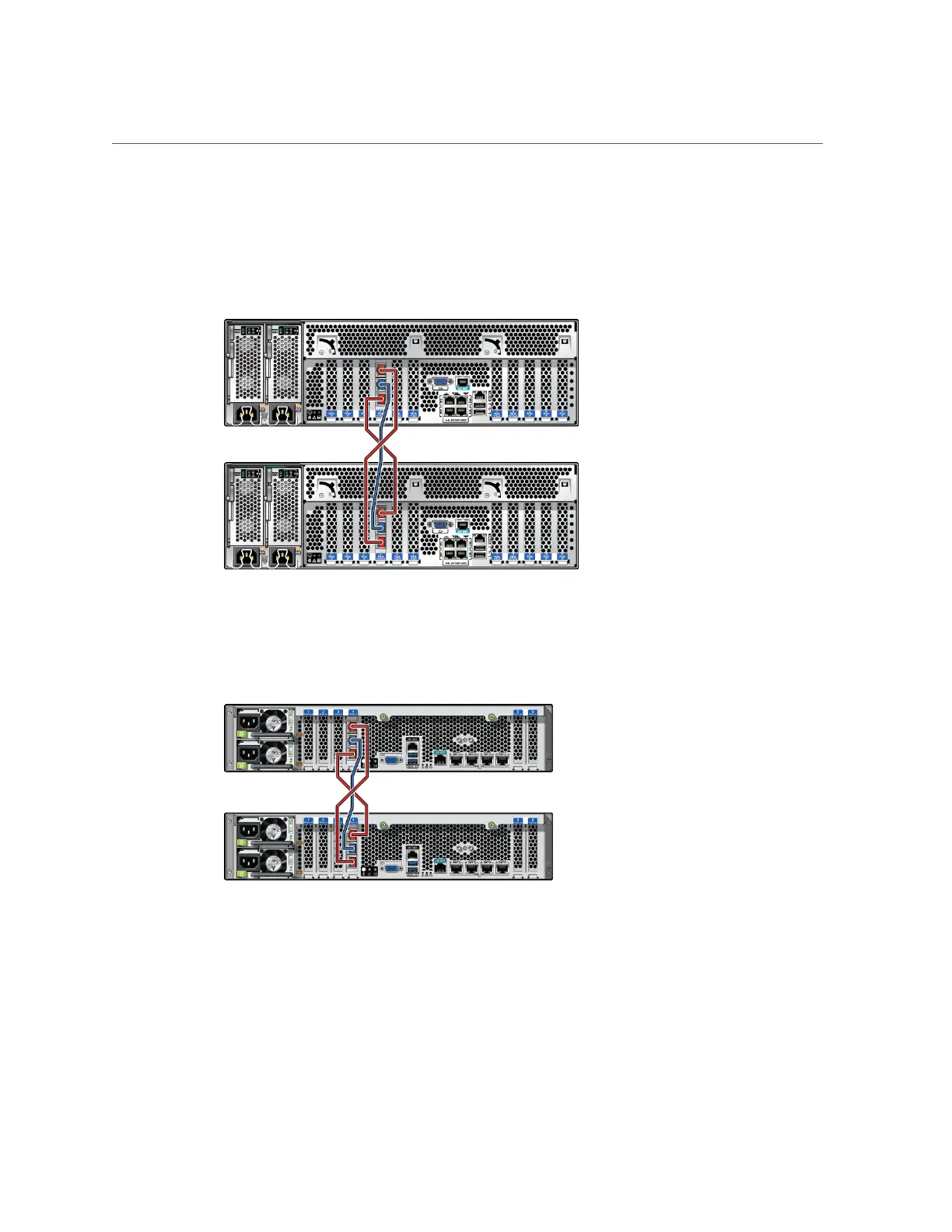

The following figure shows cluster cabling between two ZS5-4 controllers.
ZS5-4 Cluster Cabling
The following figure shows cluster cabling between two ZS5-2 controllers.
ZS5-2 Cluster Cabling
The following figure shows cluster cabling between two ZS4-4 controllers.
Cabling the Appliance 173
