Overview of Disk Shelves

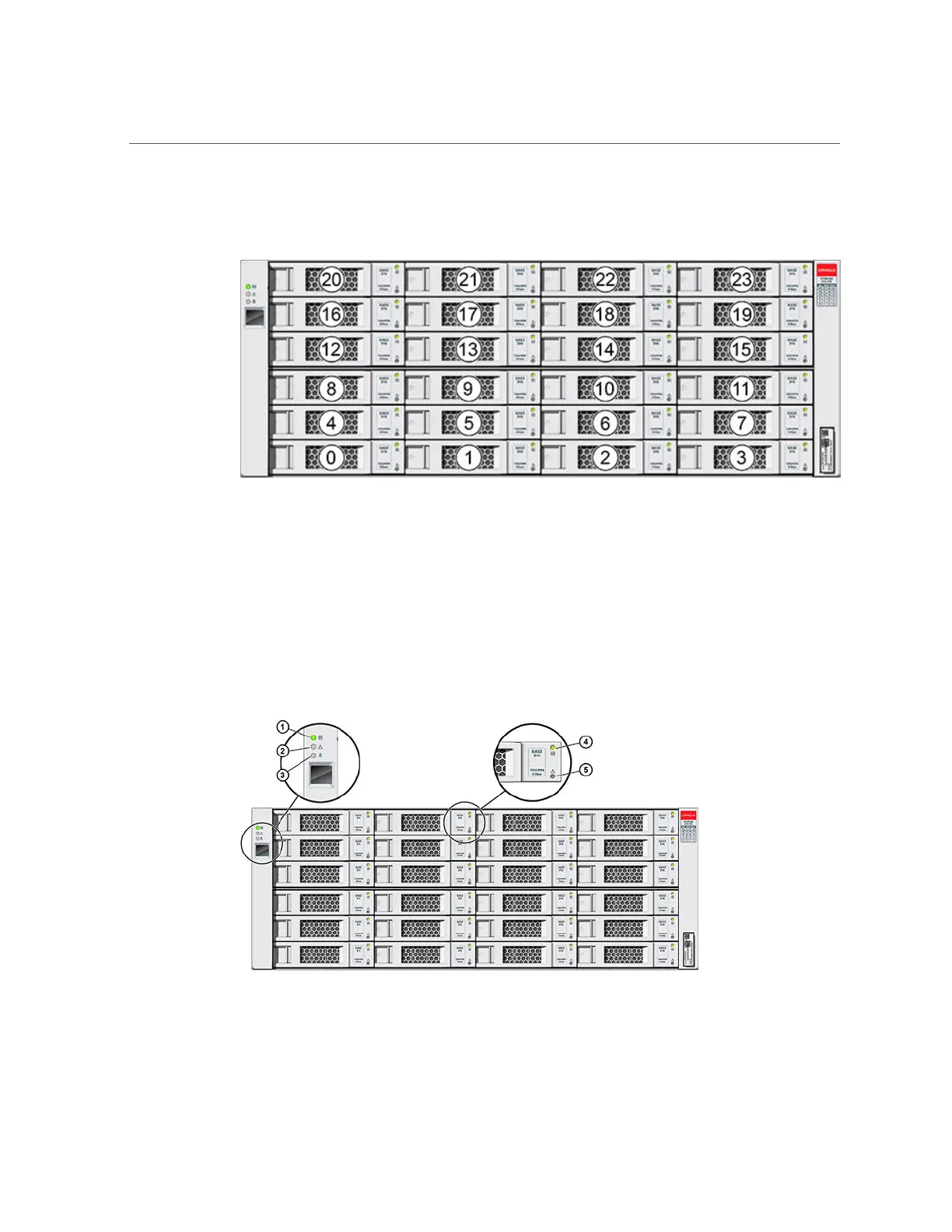

FIGURE 12
DE2-24C Drive Locations (Front View)
Up to four write-optimized log SSDs are supported per disk shelf. Log devices should be
populated in order of slots 20, 21, 22, and 23.
Read-optimized cache SSDs can also be installed in the DE2-24C disk shelf, for some
controllers. For slot configuration details and minimum software requirements, see “Disk Shelf
Configurations” in Oracle ZFS Storage Appliance Customer Service Manual.
FIGURE 13
DE2-24C Status Indicators (Front View)
