Overview of ZS4-4 Controller

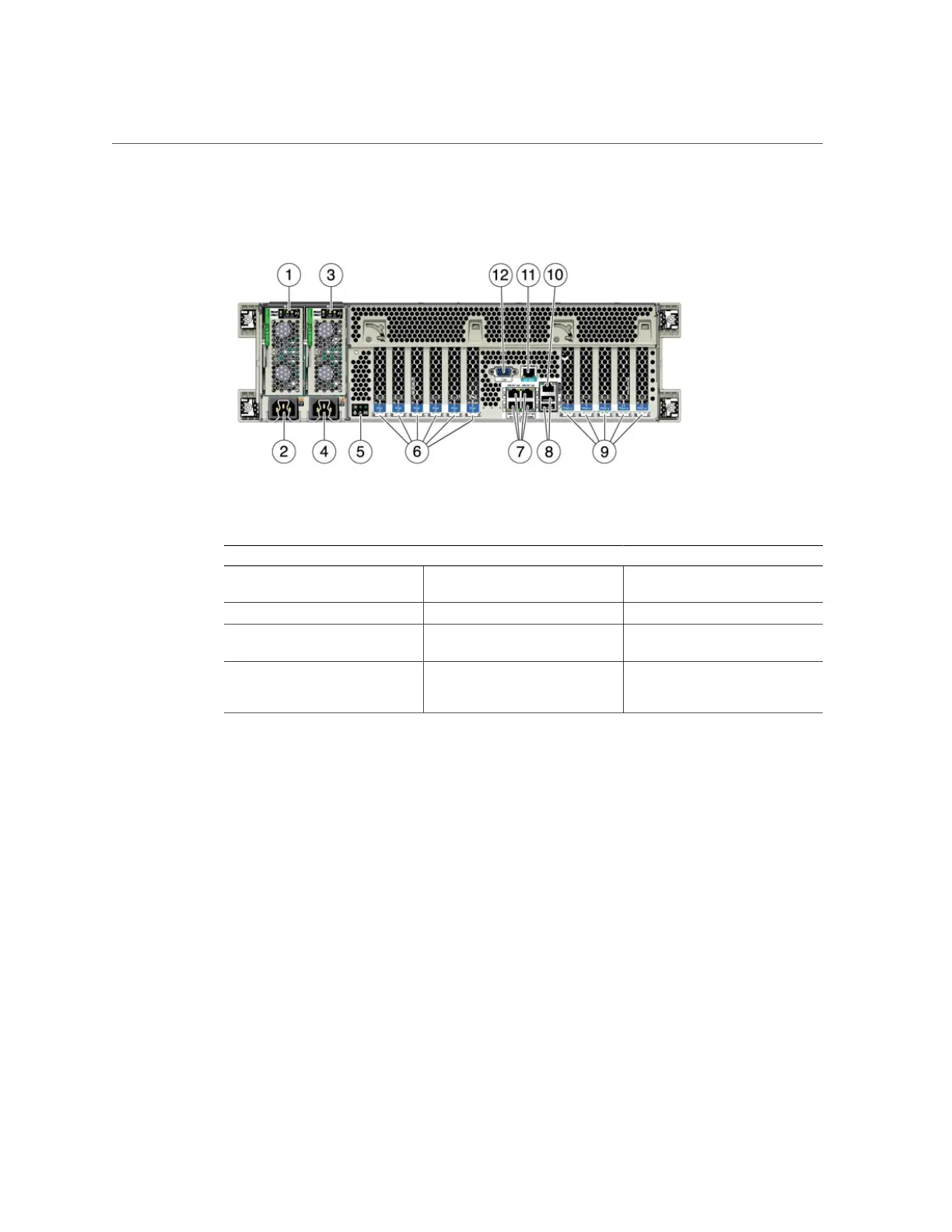

FIGURE 29
ZS4-4 Controller Rear Panel
Figure Legend
1 Power supply unit (PSU) 0
indicator panel
2 PSU 0 AC inlet 3 PSU 1 indicator panel
4 PSU 1 AC inlet 5 System status indicator panel 6 PCIe card slots 1-6
7 Network (NET) 10 GbE ports:
NET 0, NET 1, NET 2, NET 3
8 USB 2.0 connectors (2) 9 PCIe card slots 7-11
10 Network management (NET
MGT) 10/100/1000 BASE-T
Ethernet port
11 Serial management (SER MGT)
RJ-45 port
12 DB-15 video port
■
PCIe Slots - The ZS4-4 base configuration contains the following PCIe cards:
■
Slot 2 - One 8-port SAS-2 internal HBA
■
Slot 4 - One cluster interface card
■
Slots 6 and 7 - Two 4-port (4x4) SAS-2 external HBAs
For information about PCIe slot order, see “ZS4-4 PCIe I/O Cards” in Oracle ZFS Storage
Appliance Customer Service Manual.
■
Ethernet Ports - The ZS4-4 has four RJ-45 10-Gigabit Ethernet (10GbE) network
connectors on the rear panel, labeled NET 0, NET 1, NET 2, and NET 3 (bottom left to
top right), as shown in the following figure. Use these ports to connect the appliance to the
network.
The LEDs located above the NET ports, labeled 2, 0, 3, 1 (left to right) are Link/Activity
indicators.
Installation Prerequisites and Hardware Overviews 49
