Overview of ZS4-4 Controller

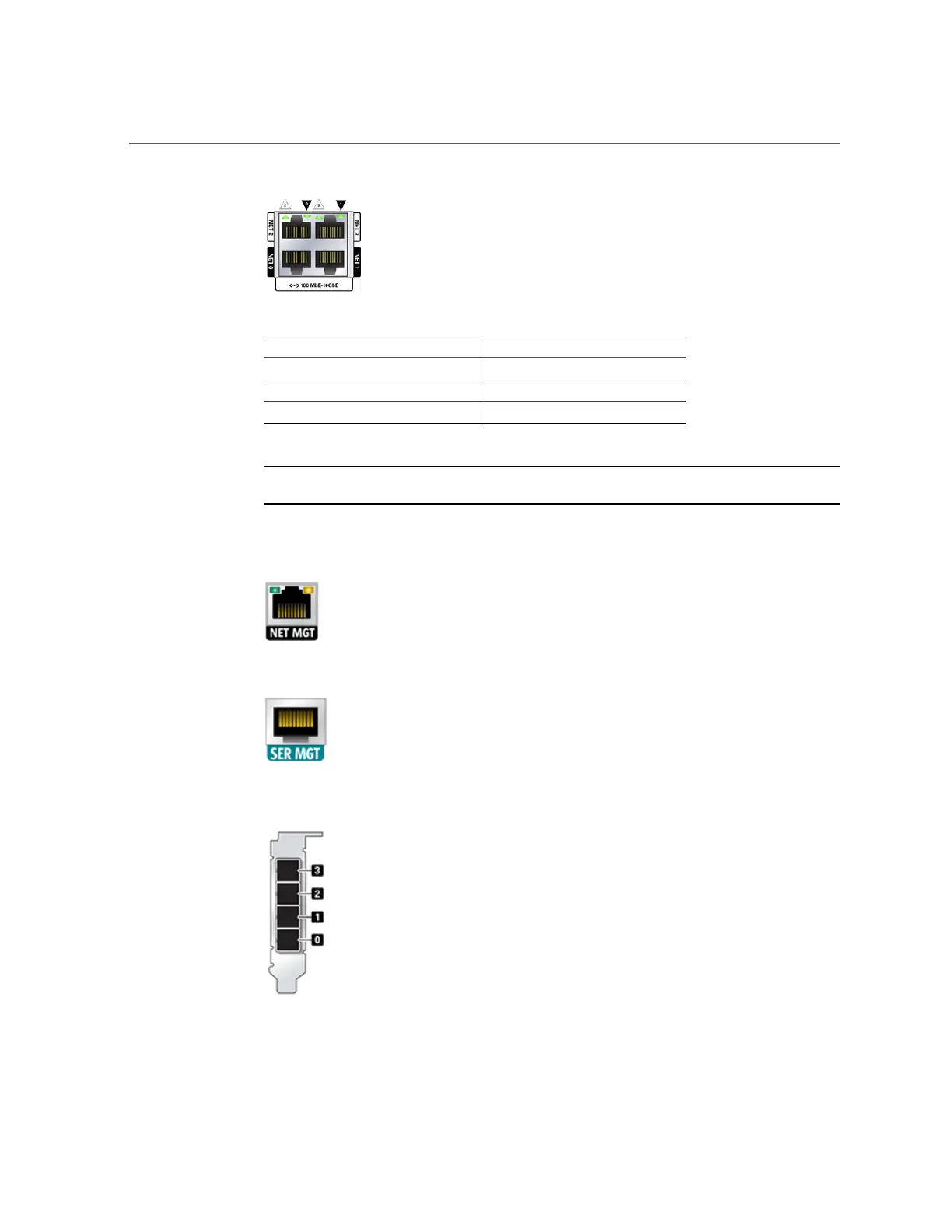

LED Status
OFF (1) No Link
ON (0) Link and no activity
Blink Link and activity
Note - Speed is not indicated for the NET ports.
■
Network Management Port - The network management connector (NET MGT) is an RJ-
45 10/100/1000 BASE-T Ethernet port and provides an alternate terminal interface to the
service processor (SP) console.
■
Serial Management Port - The serial management connector (SER MGT) is an RJ-45 port
and provides a terminal connection to the SP console.
■
HBA Ports - The 4x4 SAS-2 HBA provides connectivity to external DE2-24 disk shelves.
The HBA ports are numbered 0-3, bottom to top.
50 Oracle ZFS Storage Appliance Installation Guide • December 2016
