Installing a DE2-24C Disk Shelf
Before You Begin
■
Review “Prerequisites for Installation” on page 11 and “Overview of Disk
Shelves” on page 19.
■
To prevent the cabinet from tipping, always load the heaviest equipment, which are disk
shelves, starting from the bottom of the cabinet.
■
To best prepare for cabling disk shelves to controllers, now and in the future, mount
controllers in the middle of the cabinet.
■
Screws are not provided for installation into a cabinet with M6-sized threaded holes.
Caution - This procedure requires a minimum of three people, or a mechanical lift, because of
the weight of the chassis. Attempting this procedure alone could result in equipment damage or
personal injury. Do not lift the chassis using the power supply handles.
1.
Extend all anti-tilt and stabilization devices from the bottom of the cabinet.
2.
Locate the appropriate rack unit (RU) height, which is eight rack holes, starting

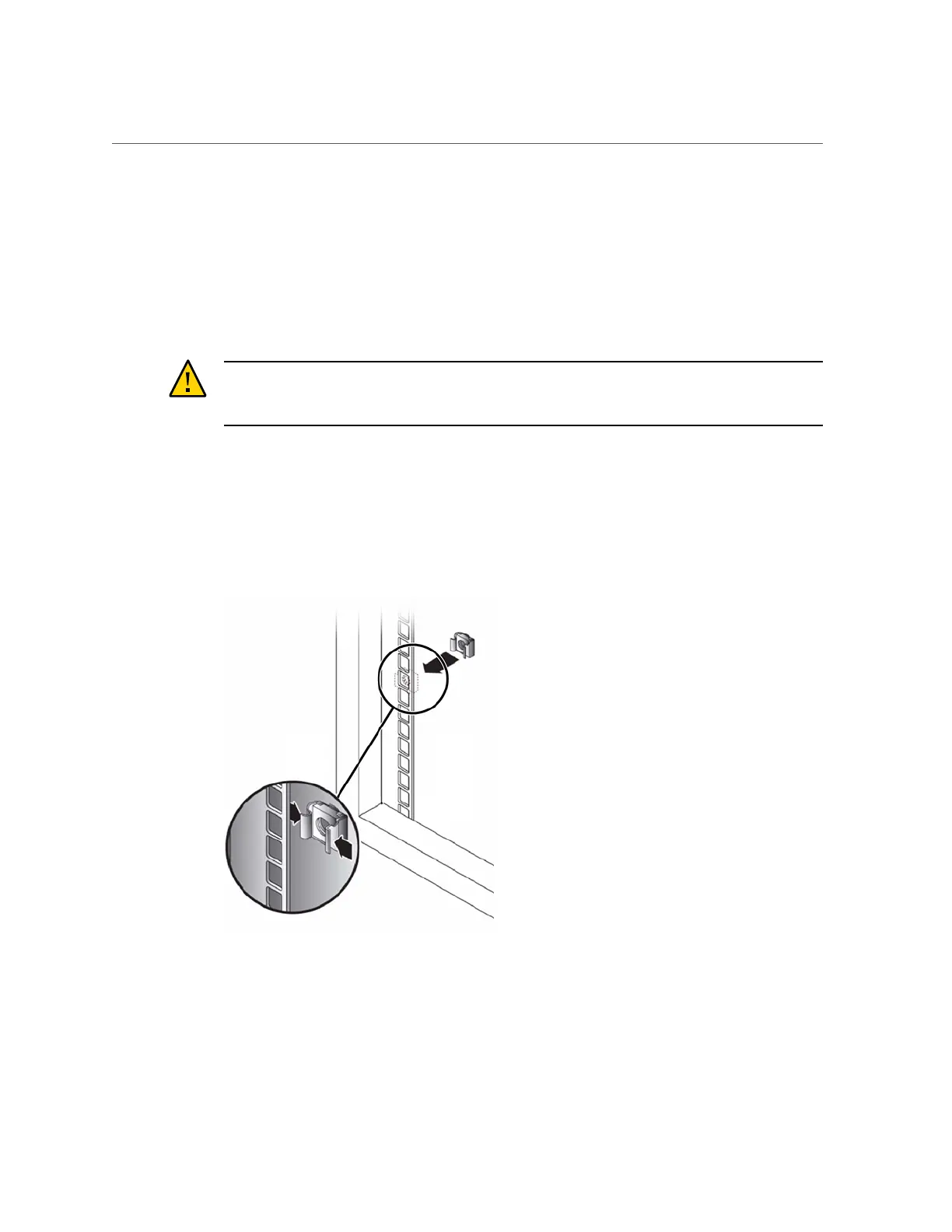

from the bottom on the cabinet. If using an unthreaded universal 19-inch or Sun
Rack II cabinet, snap one supplied cage nut into the appropriate rack holes.
3.
Prepare the screws in each rail end:
■
Square-hole unthreaded cabinet - No preparation.
Installing Disk Shelves 89
