Installing a DE2-24C Disk Shelf
■
Round-hole unthreaded cabinet - Remove the screws from each rail end and discard.
Locate the screws for round-hole cabinets and place aside.
■
Threaded cabinet - Remove screws and replace them in the opposite direction (from the
inside of the rail flange) so they act as location pins. Also remove the clip nut from each
front rail end and discard.
4.
Position the front of the rails inside the cabinet, with the rail flange inside of the
cabinet flange, and the rail label facing the inside of the cabinet.
■
Square-hole unthreaded cabinet - The screw heads fit inside the rack holes.
■
Round-hole unthreaded cabinet - Install two screws through the rack and into the front of
each rail. Do not install into the cage nut in the rack, or the clip nut on the rail.
■
Threaded cabinet - The location pins fit inside the rack holes.
5.

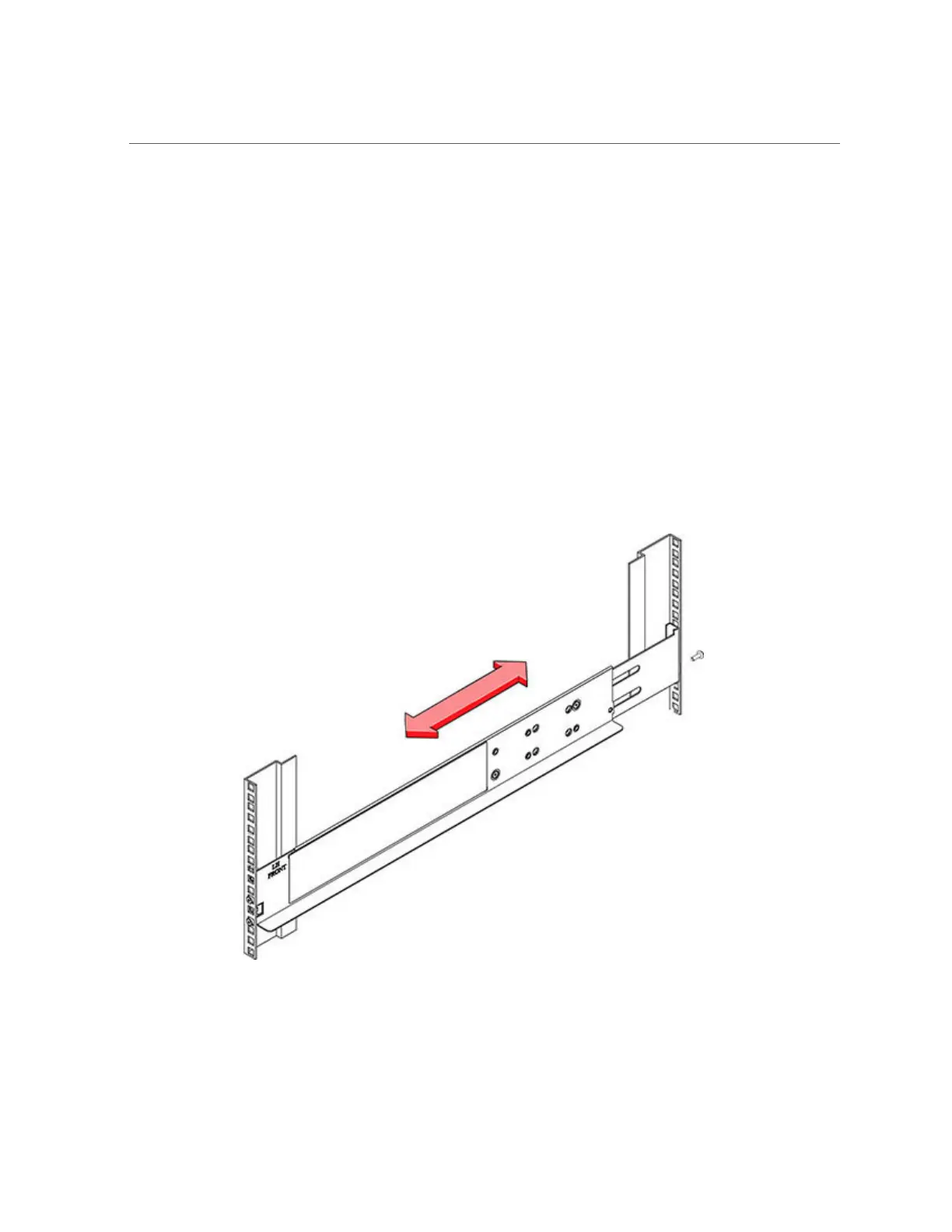

Adjust the rail lengths to fit.
6.
Install one screw through the rack and into the rear of each rail.
90 Oracle ZFS Storage Appliance Installation Guide • December 2016
