MX-5050 Operation and Maintenance Manual
May 1992
Section 2 Installation
2 - 7
SW1-4, 1-5 Capstan PLL Reference Setting
When the machine is in FIX mode, the capstan speed is adjusted with these
switches (refer to § 6.7).
SW1-4 SW1-5 OFF SET (%)
ON ON + 0.2%
OFF ON – 0.2%
ON OFF – 0.4%
OFF OFF Not used

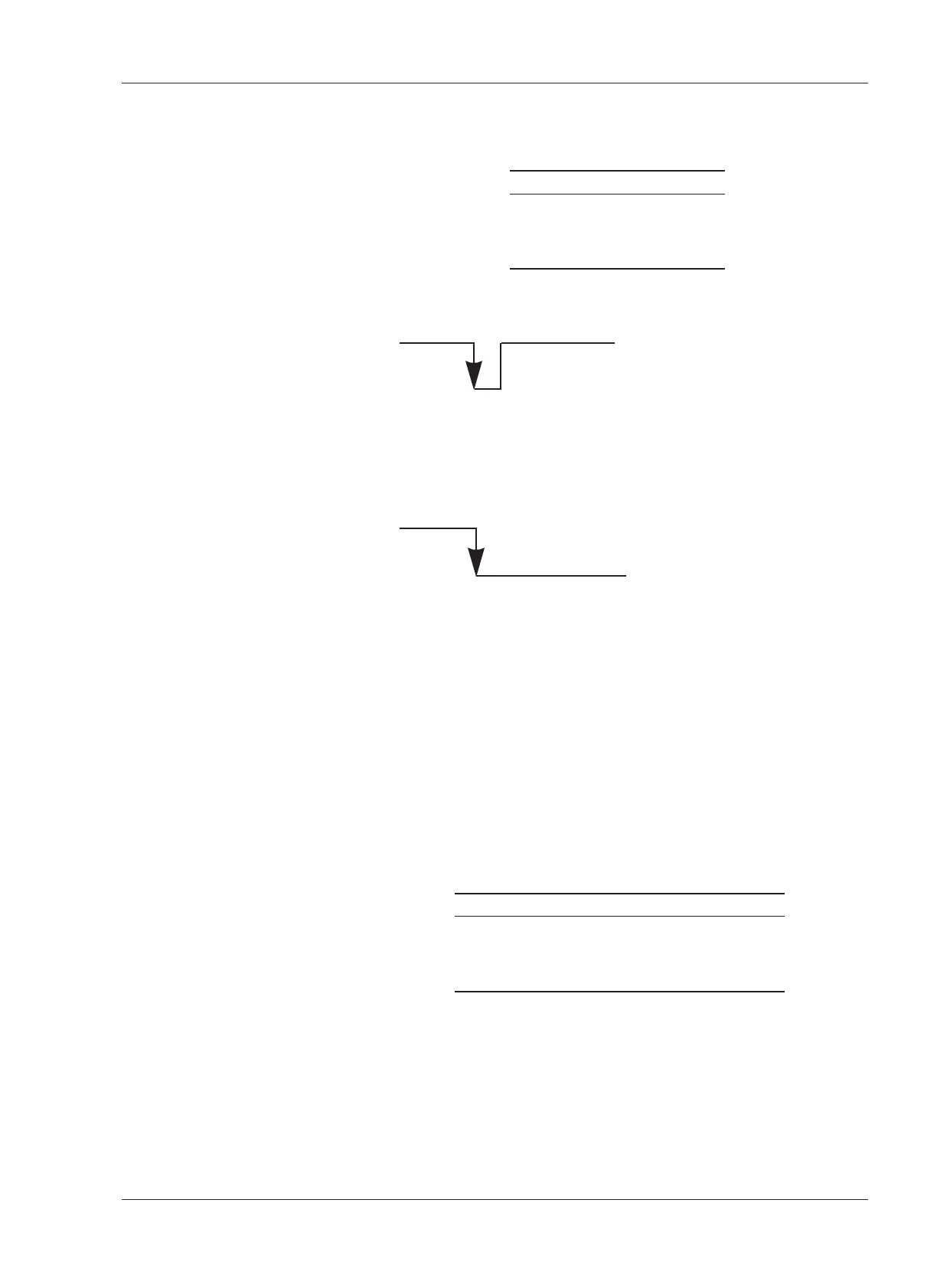

SW 1-6 Adding Punch In Type Selection
ON Edge Type
With this setting, the Punch In command signal is as shown above.
Additional Punch-Ins are made by pressing the PLAY and REC buttons (or
just the REC button) while in Ready mode.
OFF Level Type
With this setting, the Punch In command signal is as shown above.
Additional Punch-Ins are made by changing READY/SAFE switches from the
SAFE position to the READY position.
SW1-7 Flashing REC button selection
This switch selects whether the lamp on the REC button flashes when the
READY/SAFE switch is set to READY.
ON Illuminates (does not flash)
OFF Flashes
SW1-8 \
SW2-1, 2-2
These switches select the function of the SEARCH 3 key.
SW2-1 2-2 Function
ON ON Proximity Sensor ON/OFF key *
OFF ON Not used
ON OFF Search Start (§ 4.5.6)
OFF OFF Search Cue (§ 4.5.3) Default Setting
* When using the optional proximity sensor, pressing the SEARCH 3 key
enables/disables the Proximity Sensor Function.
Table 2-4
Capstan PLL Reference Setting
Table 2-5
SEARCH 3 Key Function
