OWON HDS-N Series Handheld DSO & DMM 6-Using the Oscilloscope
◄/► – Time Base
▲/▼ – Trig

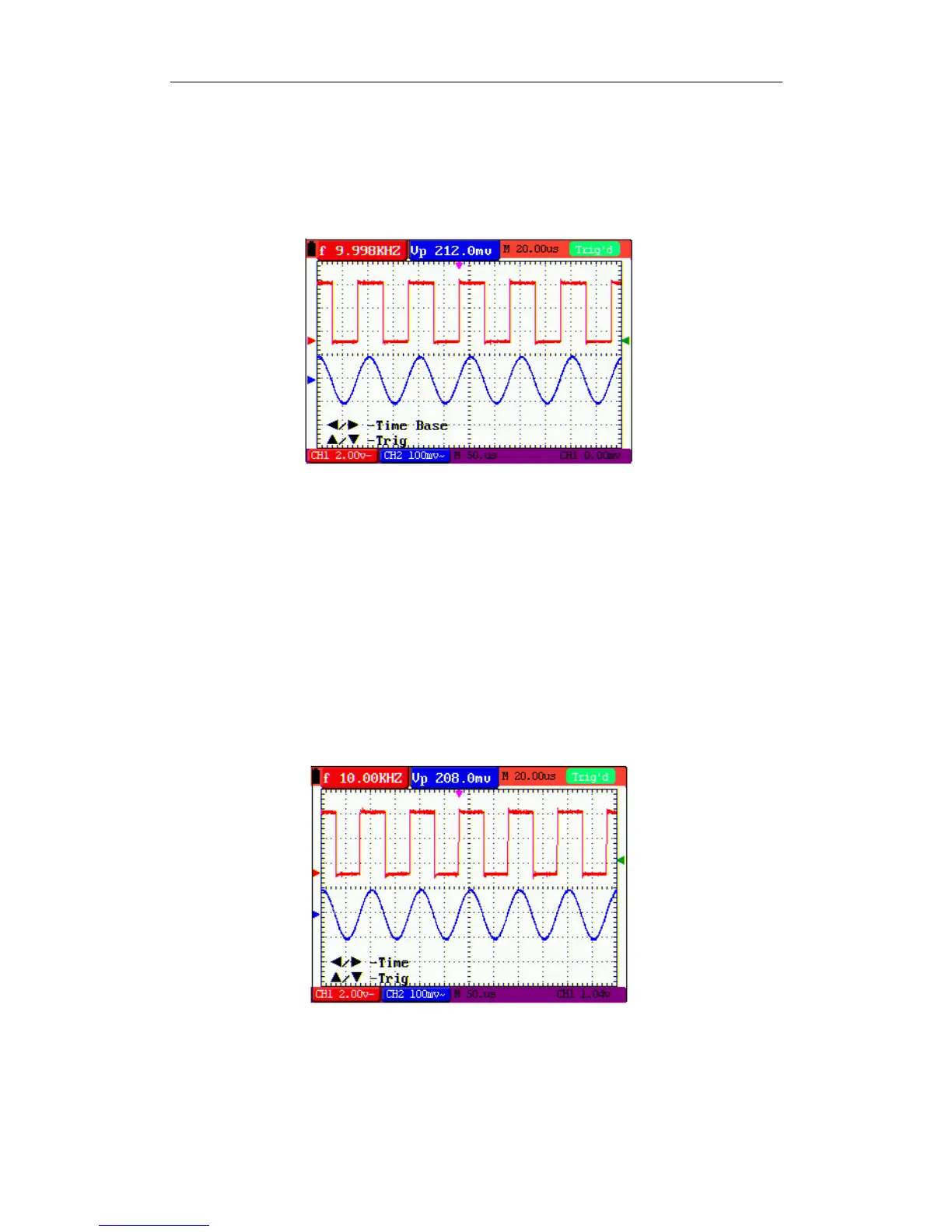

See the following figure 7:
Figure 7
2. Press ◄ (yellow) or ► (yellow) to adjust the main time base; press ▲ (yellow) or▼ (yellow)
to adjust trigger level position, press R key to "zero" the trigger level position.
3. Press OPTION again and left bottom side display as
◄/► – Time
▲/▼ – Trig
See the following figure 8:
Figure 8
4. Press ◄(yellow) or ►(yellow) to adjust time base horizontal position, press V key to "zero" the
16
