OWON HDS-N Series Handheld DSO & DMM 6-Using the Oscilloscope
horizontal position; press ▲(yellow) or ▼(yellow) to adjust trigger level position, press R key
to "zero" the trigger level position.
5. Press OPTION again to back up operation 1.
The following guidance is for the operation on the mode of alternative triggering.
1. Press OPTION and left bottom display as:
—Time
—Trig 2 (or Trig 1)
See the following figure 9:

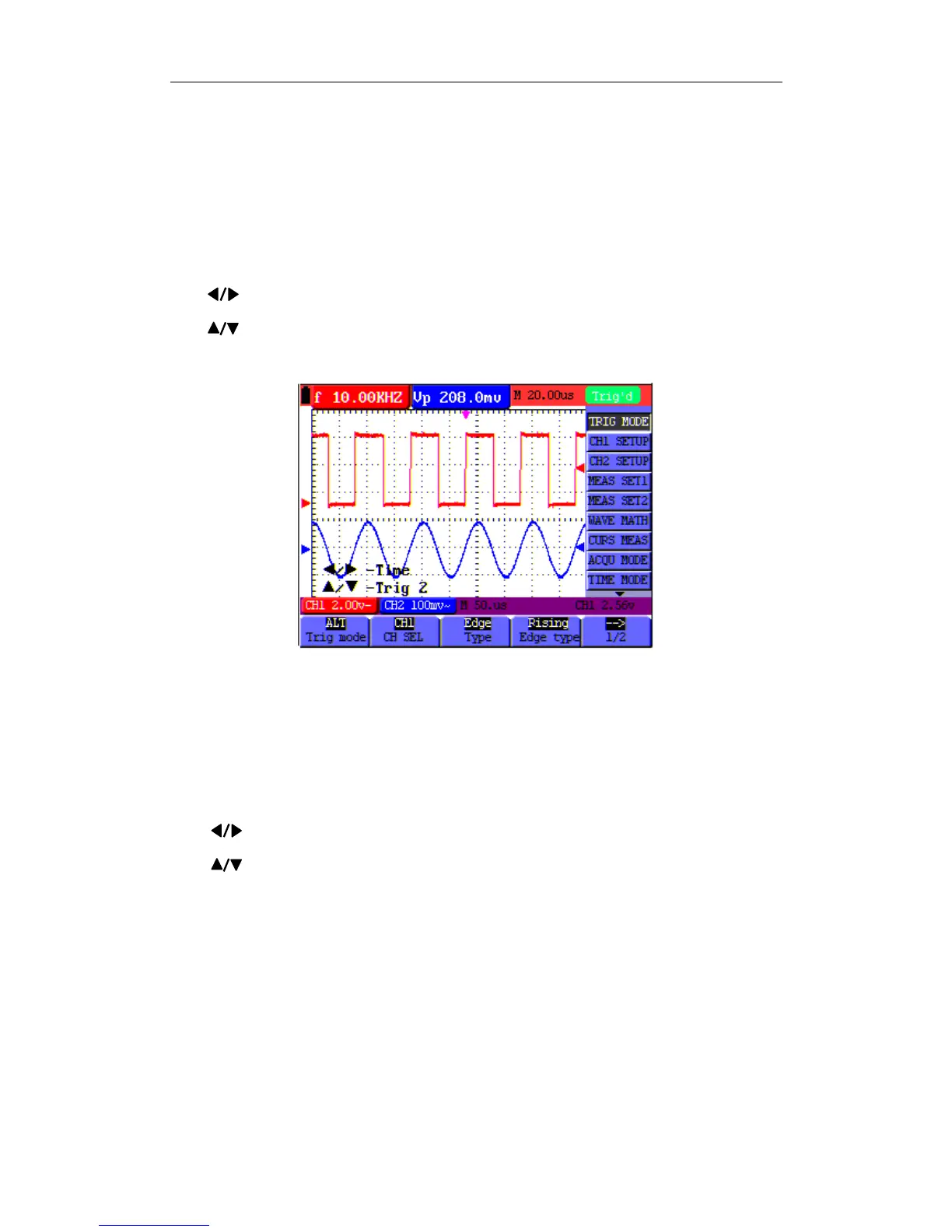

Figure 9: Adjust Time and Trig 2
2. Press ◄ (yellow) or ► (yellow) to adjust time base horizontal position, press V key to "zero"
the horizontal position; press ▲(yellow) or ▼(yellow) to adjust trigger level position in Channel 2
(or Channel 1), press R key to "zero" the trigger level position.
3. Press OPTION again and left bottom display as:
— Time Base
— Trig 1 (or Trig 2)
See the following Figure 10:
17
