Record the waveform as follows:
1. Press the MENU key and the function menu appears at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select RECORD and five options are displayed at
the bottom of the screen.
3. Press the F1 key to select the Record mode.
4. Press F2 and set the End frame at 300 (select the direction as Increase or Decrease in the
second menu before step4).
5. Press F4 and set the time Interval to 1.00ms.
6. Press F5 to enter into the second menu.
7. Press F1 and select OFF to stop refreshing waveforms.
8. Press F5 to back up to the first menu.
9. Press F3 and select Play to operate.

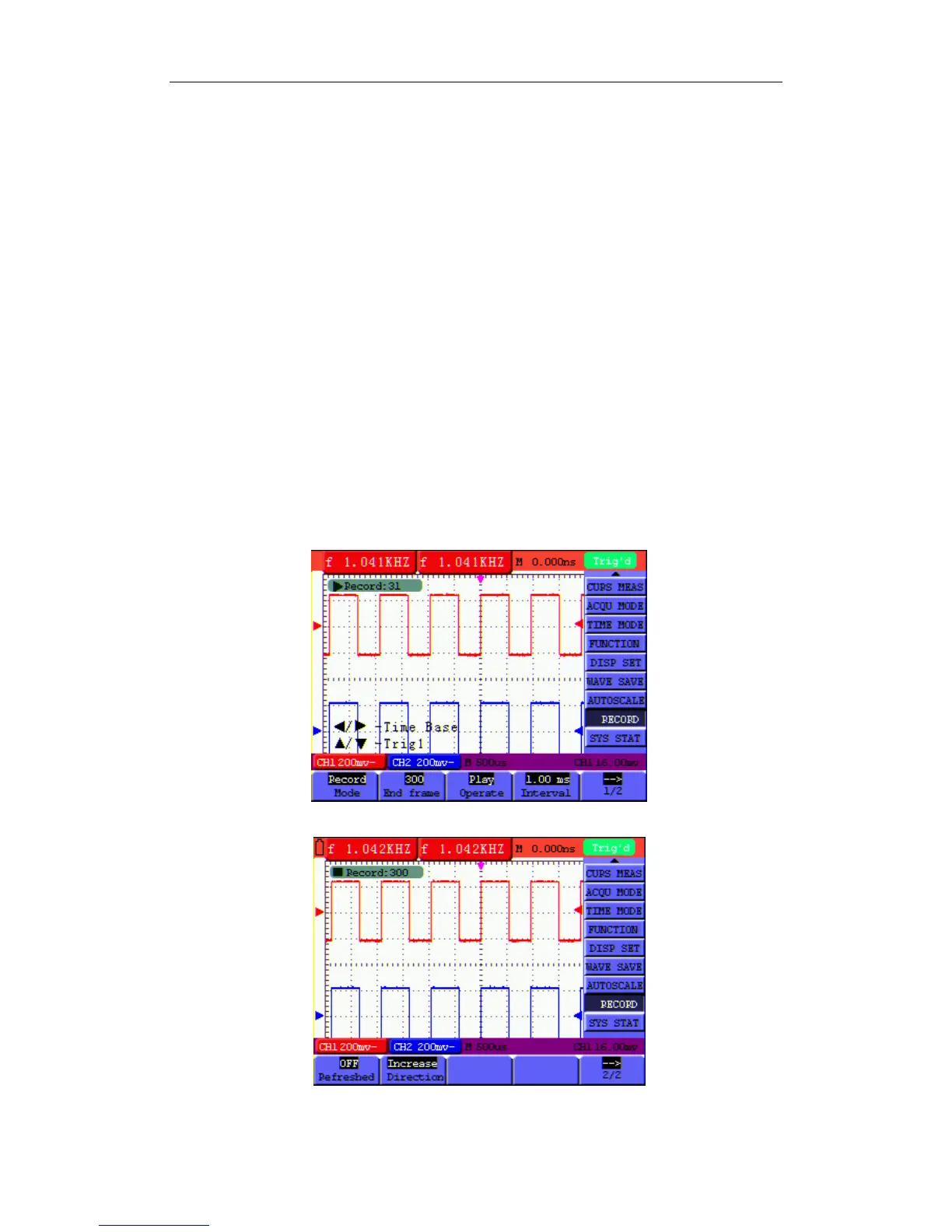

Shown as Fig.58 and Fig.59
Fig.58：the first page of the record
Fig.59: the second page of the record
