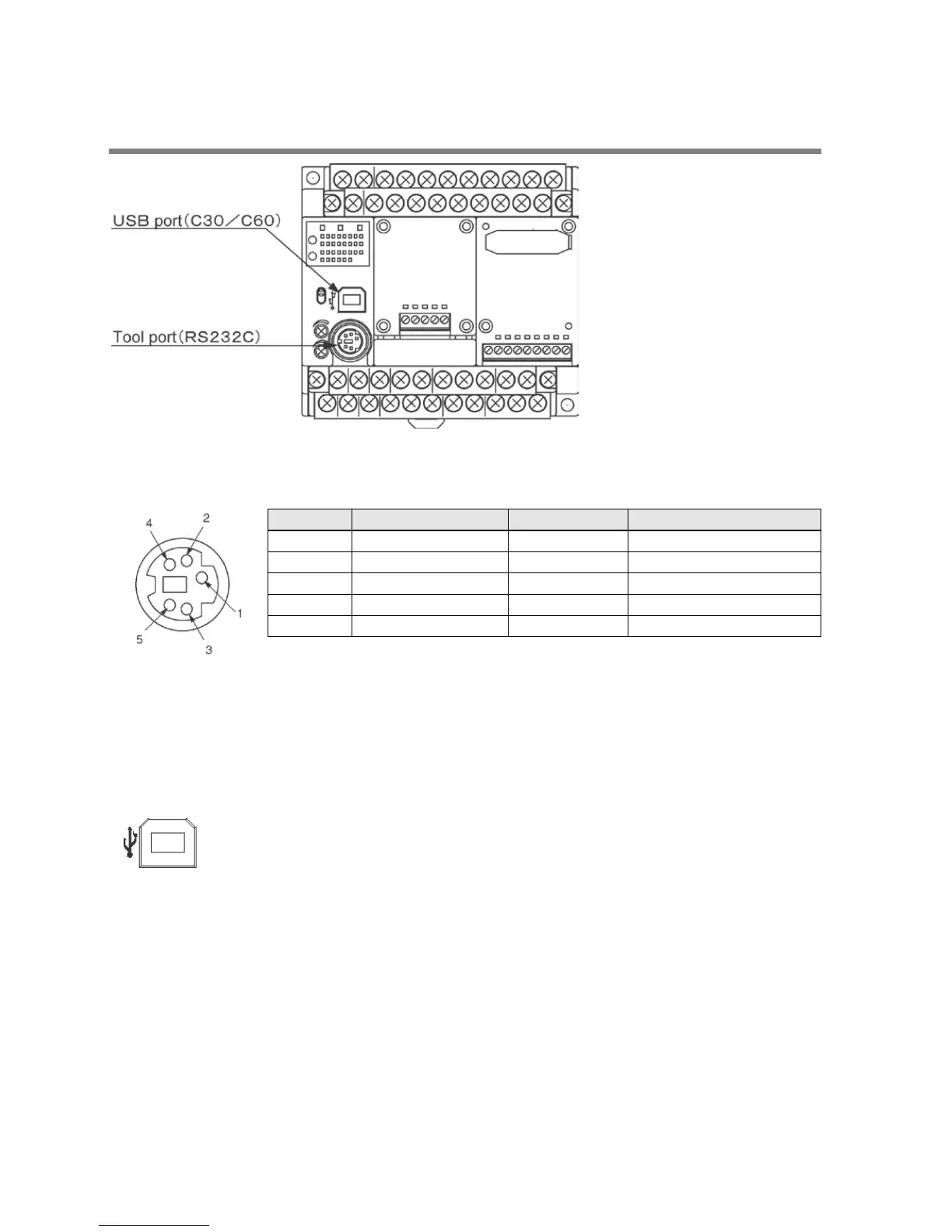

6.1 Tool Port and USB Port
Tool port (RS232C)
This port is used to connect a programming tool.
A commercial mini-DIN 5-pin connector is used for the Tool port on the control unit.
Pin No.
Signal name
Abbreviation
Signal direction
1
Signal Ground
SG
−
2 Send Data SD Unit → External device
3
Receive Data
RD
Unit
←
External device
4 (Not used) − −
5
+5V
+5V
Unit
→
External device
The followings are the default settings set when the unit is shipped from the factory.
- Baud rate …….. 9600 bps
- Character bit …. 8 bit
- Parity check ….. Odd parity
- Stop bit length .. 1 bit
USB connector
The connector is the commercial B type.
This is a connector to connect the programming tool.
Commercial USB cables (AB type) can be used.
