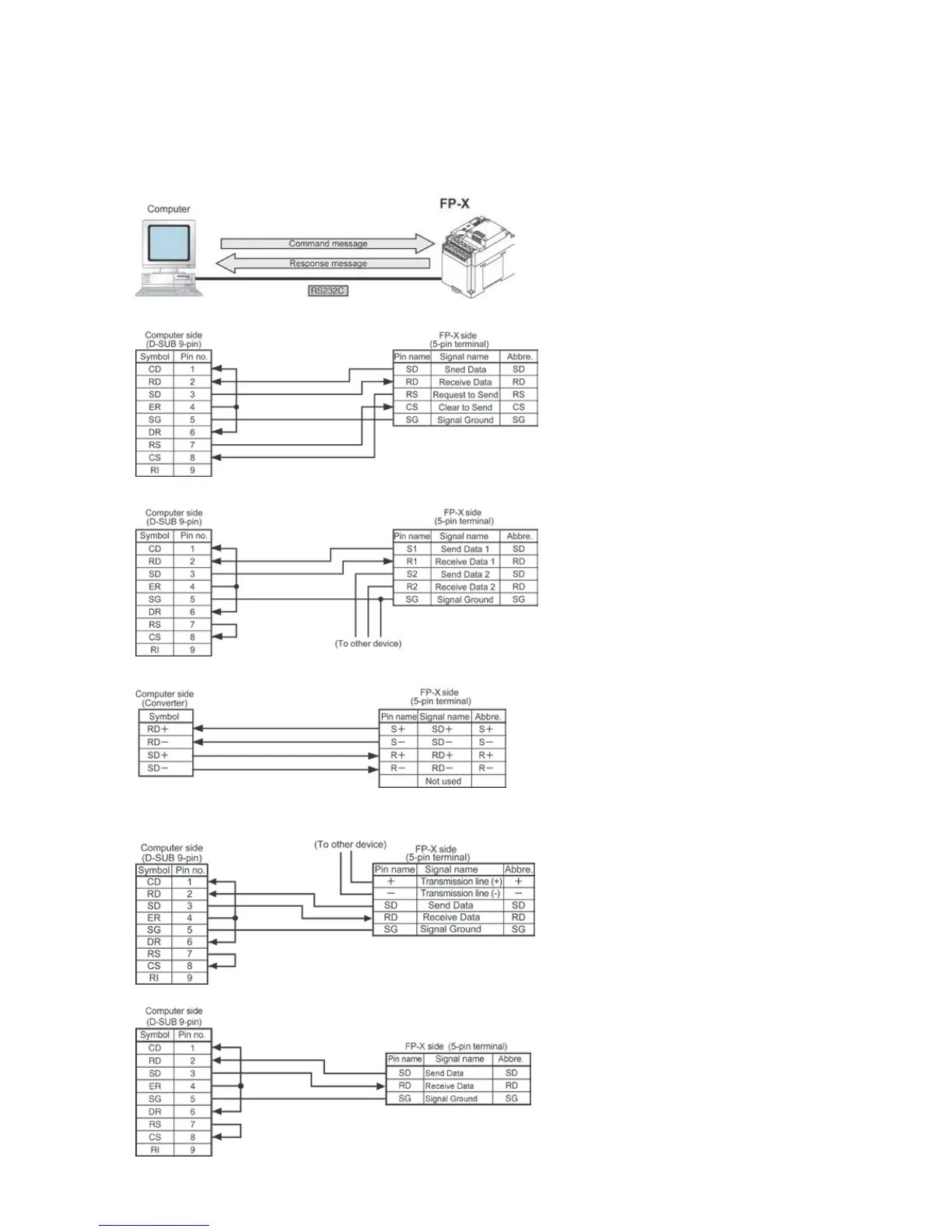

Connection to the computer <1:1 communication>
Overview
For a 1:1 computer link between the FP-X and a computer, an RS232C cable is needed. Communication
is performed via commands from the computer and responses from the PLC.
<Using AFPX-COM1> 1-channel RS232C type
<Using AFPX-COM2> 2channel RS232C type
<Using AFPX-COM3 (RS422 setting)> (1-channel RS485/RS422 type)
Note) There are several names for the signal names of RS422. Confirm with the instruction manuals for each d evices.
<Using AFPX-COM4> (Combination of 1-channel RS485 and 1-channel RS422 type)
<Using AFPX-COM5> (Combination of Ethernet and 1-channel RS232C type)
