1:1 communication with programmable display GT series
Overview

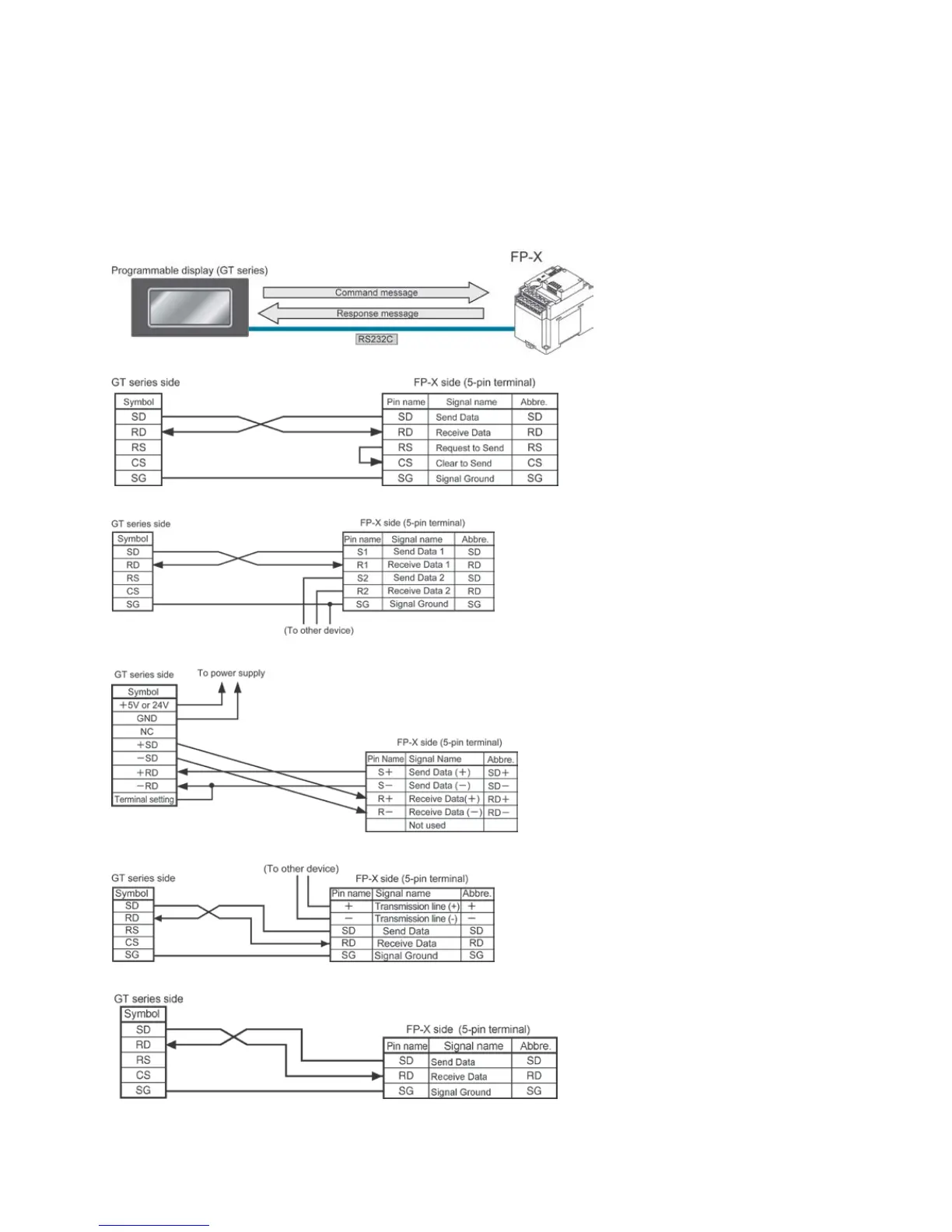

A 1:1 computer link with a programmable display connects the FP-X and the programmable display
using an RS232C cable. Communication is performed via commands from the programmable display
and responses from the PLC.
No program is required for communication. Simply set the mutual communications settings to operate
the PLC via the programmable display.
<Using AFPX-COM1> 1-channel RS232C type
<Using AFPX-COM2> 2channel RS232C type
<Using AFPX-COM3 (RS422 setting)> (1-channel RS485/RS232C type)
<Using AFPX-COM4> (Combination of 1-channel RS485 and 1-channel RS232C type)
<Using AFPX-COM5> (Combination of Ethernet and 1-channel RS232C type)
