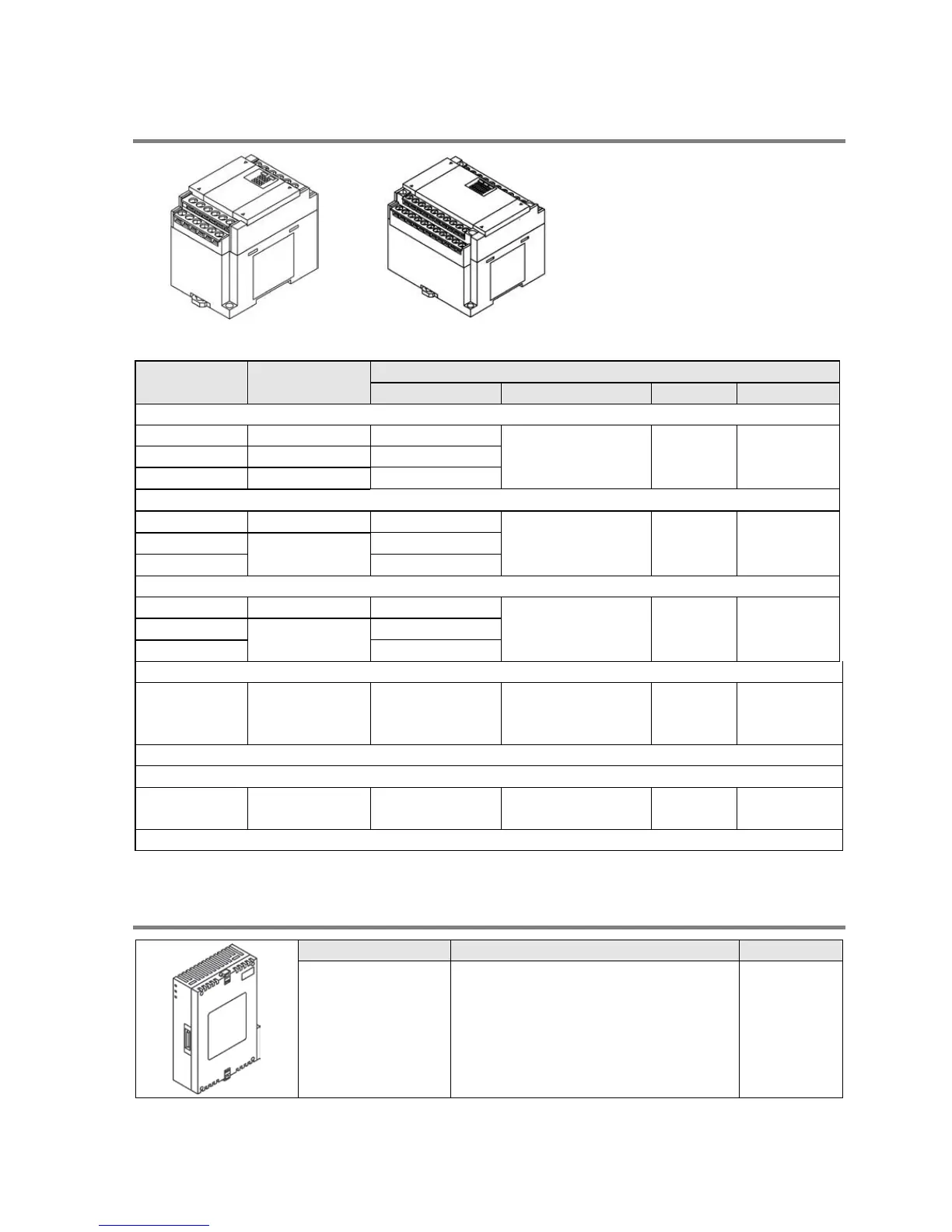

1.2.2 FP-X Expansion Unit
E14/E16 E30
Product No.
No. of I/O
points
Specifications
Power supply
Input
Output
Connection
Relay type (Ry type)
AFPX-E16R 8/8 -
24 V DC
(Common polarities
+ & - common)
Relay
Terminal
block
AFPX-E30R
16/14
100 to 240 V AC
AFPX-E30RD
16/14
24 V DC
Transistor type (NPN) (Tr type)
AFPX-E16T 8/8 -
24 V DC
(Common polarities
+ & - common)
Transistor
(NPN)
Terminal
block
AFPX-E30T
16/14
100 to 240 V AC
AFPX-E30TD
24V DC
Transistor type (PNP) (Tr type)
AFPX-E16P
8/8
-
24 V DC
(Common polarities
+ & - common)
Transistor
(PNP)
Terminal
block
AFPX-E30P
16/14
100 to 240 V AC
AFPX-E30PD 24V DC
Input-only type
AFPX-E16X
16/0
(X300 to X30F)
-
24 V DC
(Common polarities
+ & - common)
-
Terminal
block
- The input specifications are the same as AFPX-E16R.
Output-only type (Relay type)
AFPX-E14YR
0/14
(Y300 to Y30D)
- - Relay
Terminal
block
- The output specifications are the same as AFPX-E16R.
An 8-cm expansion cable is provided with expansion unit
1.2.3 FP-X Expansion FP0 Adapter
Name
Specifications
Product No.
FP-X Expansion
FP0 adapter (with 8
cm expansion
cable, power supply
cable)
For connecting FP0 expansion unit AFPX-EFP0
