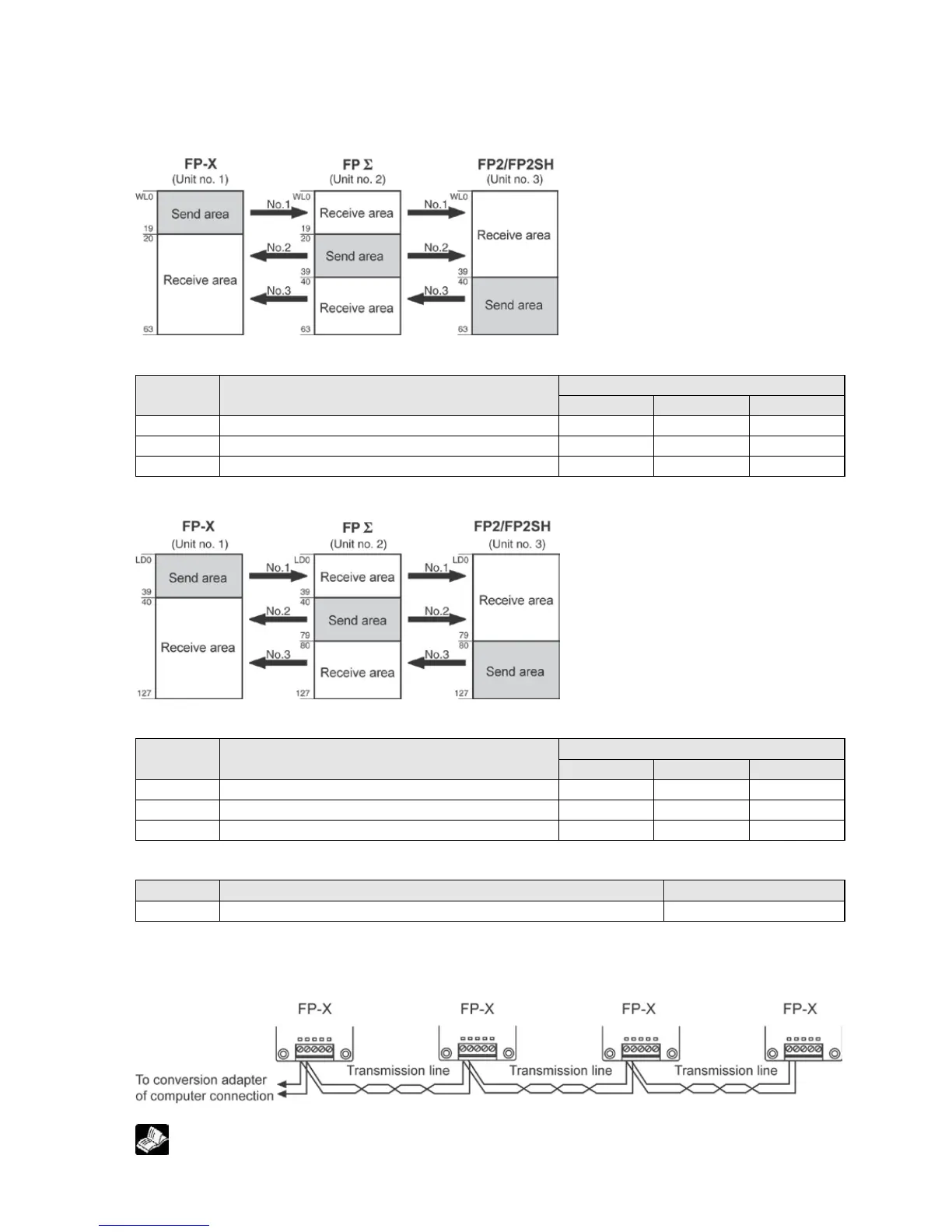

Link area allocation
- Link relay allocation
System registers
No. Name
Set value of various control units
No. 1
No. 2
No. 3
No. 40 Range of link relays used 64 64 64
No. 42 Starting No. of word for link relay transmission 0 20 40
No. 43 Link relay transmission size 20 20 24
- Link register allocation
System registers
No. Name
Set value of various control units
No. 1
No. 2
No. 3
No. 41
Range of link registers used
128
128
128
No. 44
Starting No. for link register transmission
0
40
80
No. 45
Link register transmission size
40
40
48
Setting the largest unit number
No.
Name
Set value
No. 47 Largest unit number setting for PC(PLC) link 3
Setting terminal unit
The terminal unit is specified with the dip switch located in the communication cassette.
Reference: <7.1.3 Type of Communication Cassettes AFPX-COM3/COM4/COM6>.
