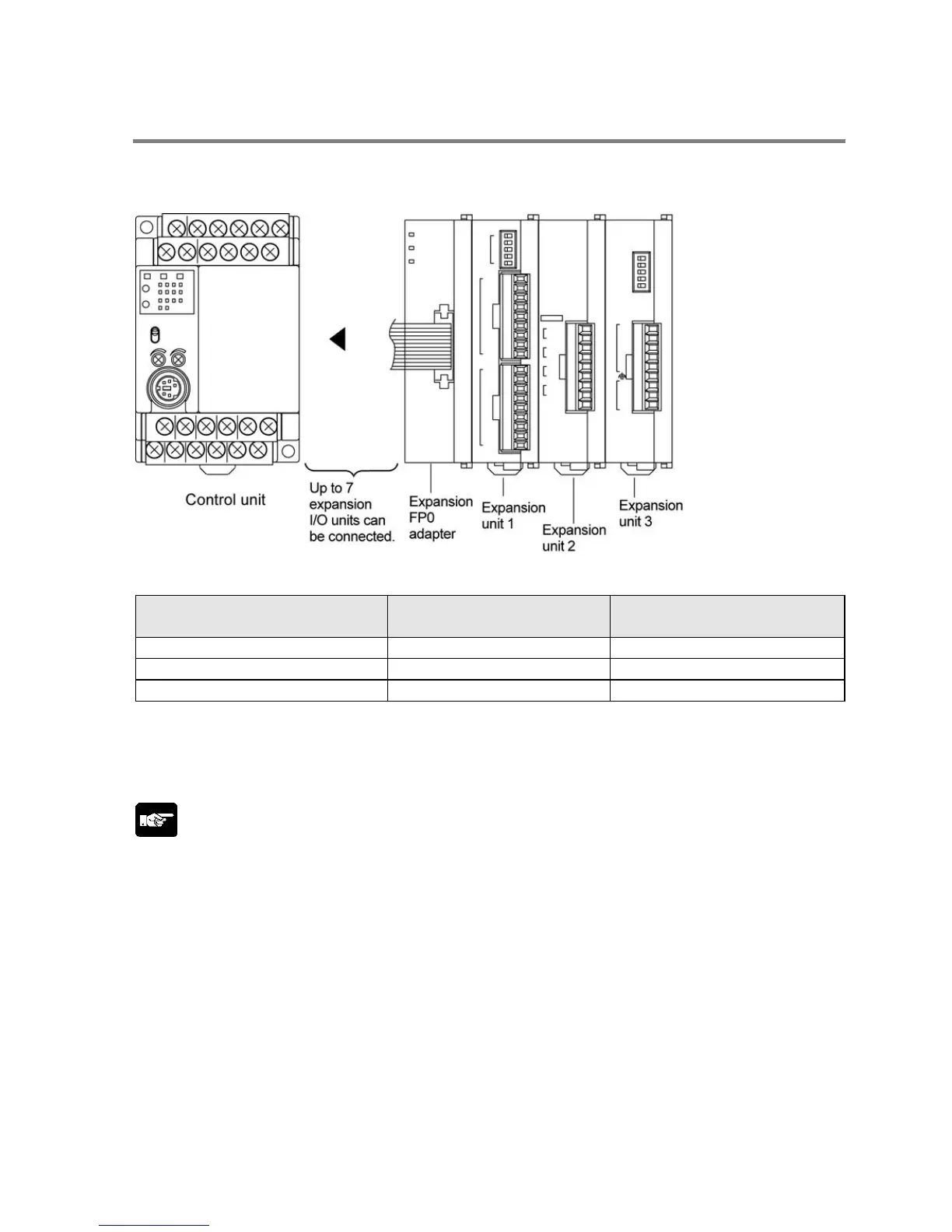

1.3.2 Restrictions on FP0 Expansion Unit
Up to three dedicated FP0 expansion units can be added using the FP-X and the expansion FP0 adapter.
The relay output type and the transistor output type can be used in combination.
Controllable I/O points
Type of control unit
Number of I/O points when
Note1) Up to seven FP-X expansion I/O units can be also installed between the control unit and the
expansion FP0 adapter.
Note2) Only one expansion FP0 adapter can be installed at the last position of the FP-X expansion bus.
(It should be installed at the right hand side of the AFPX-E16 and E30.)
Note:
• Install the FP0 thermocouple unit on the right side of other expansion units. If it is installed on the left
side, the total precision will deteriorate.
• Install the FP0 CC-Link slave unit on the right side of the other expansion units. There is no expansion
connector on the right side.
