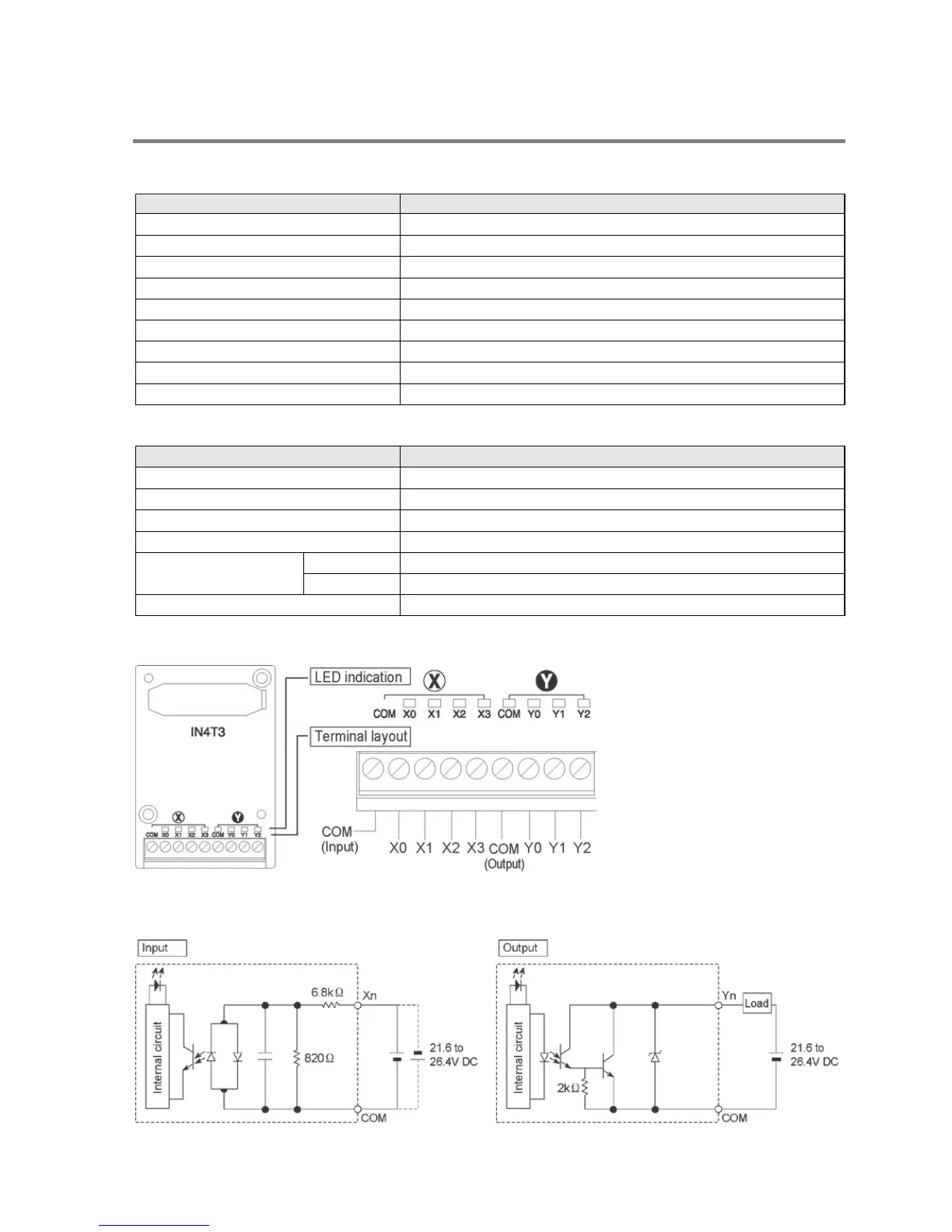

8.3.8 FP-X I/O Cassette
Product No.: AFPX-IN4T3
Input specifications
Item
Description
Rated input voltage
24 V DC
Operating voltage range
21.6 to 26.4 V DC
Rated input current
Approx. 3.5 mA
Input points per common
4 points/common
Min. on voltage/Min. on current
19.2 V DC/3 mA
Max. off voltage/Max. off current 2.4 V DC/1 mA
Input impedance
Approx. 6.8 k
Ω
Response time 1 ms or less
Operating mode indicator
LED display
Output specifications
Item
Description
Output type Open collector (NPN)
Rated load voltage
24 V DC
Max. load current
0.3 A
Output points per common
3 points/common
Response time
off
→
on
0.1 ms or less
on
→
off
0.8 ms or less
Operating mode indicator LED display
LED indication/Terminal layout
Circuit diagram
