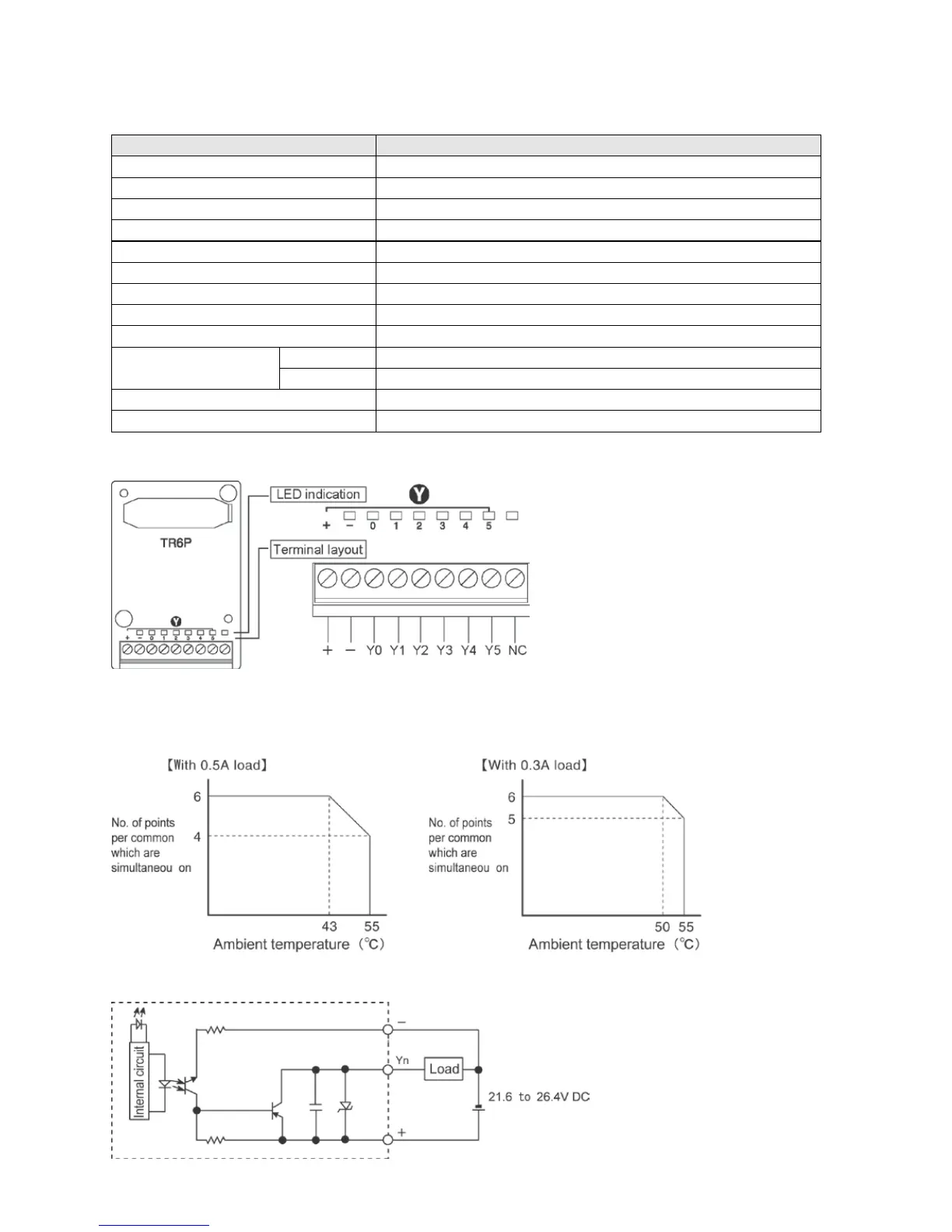

Panasonic AFPX-C30T - FP-X Output Cassette

Product No.: AFPX-TR6P
Item
Description
Insulation method
Optical coupler
Output type Open collector (PNP)
Rated load voltage
24 V DC
Operating load voltage range 21.6 to 26.4 V DC
Max. load current
0.5 A
Max. surge current 1.5 A
Output points per common
6 points/common
Off state leakage current 1µ A or less
On state voltage drop
1.5 V DC or less
Response time
off→on 0.1 ms or less
on
→
off
0.8 ms or less
Surge absorber Zener diode
Operating mode indicator
LED display
LED indication/Terminal layout
Limitations on number of simultaneous on points
Keep the number of points which are simultaneously on within the following range as determined by the
ambient temperature.
Circuit diagram
