Panasonic AFPX-C30T - Page 296

Sample program
Incremental Position Control Operation: Plus Direction

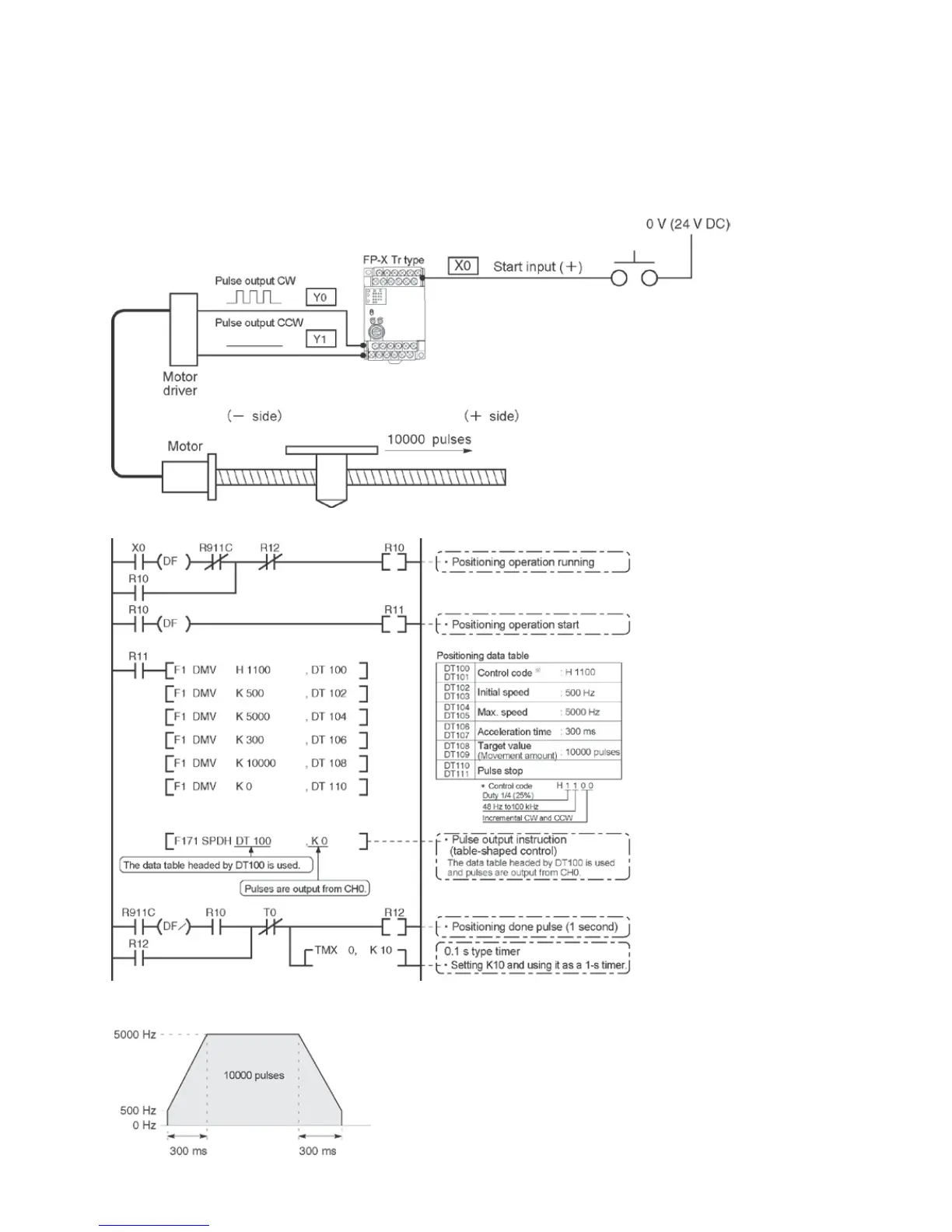

When X0 turns on, the pulse is output from CW output Y0 of the specified channel CH0.
Note) In that case, the memory Y0 does not turn on/off according to the pulse output, and also the
monitoring is not possible.
Program
Pulse output diagram
