High-speed counter/pulse output control flag area of FP-X Ry type

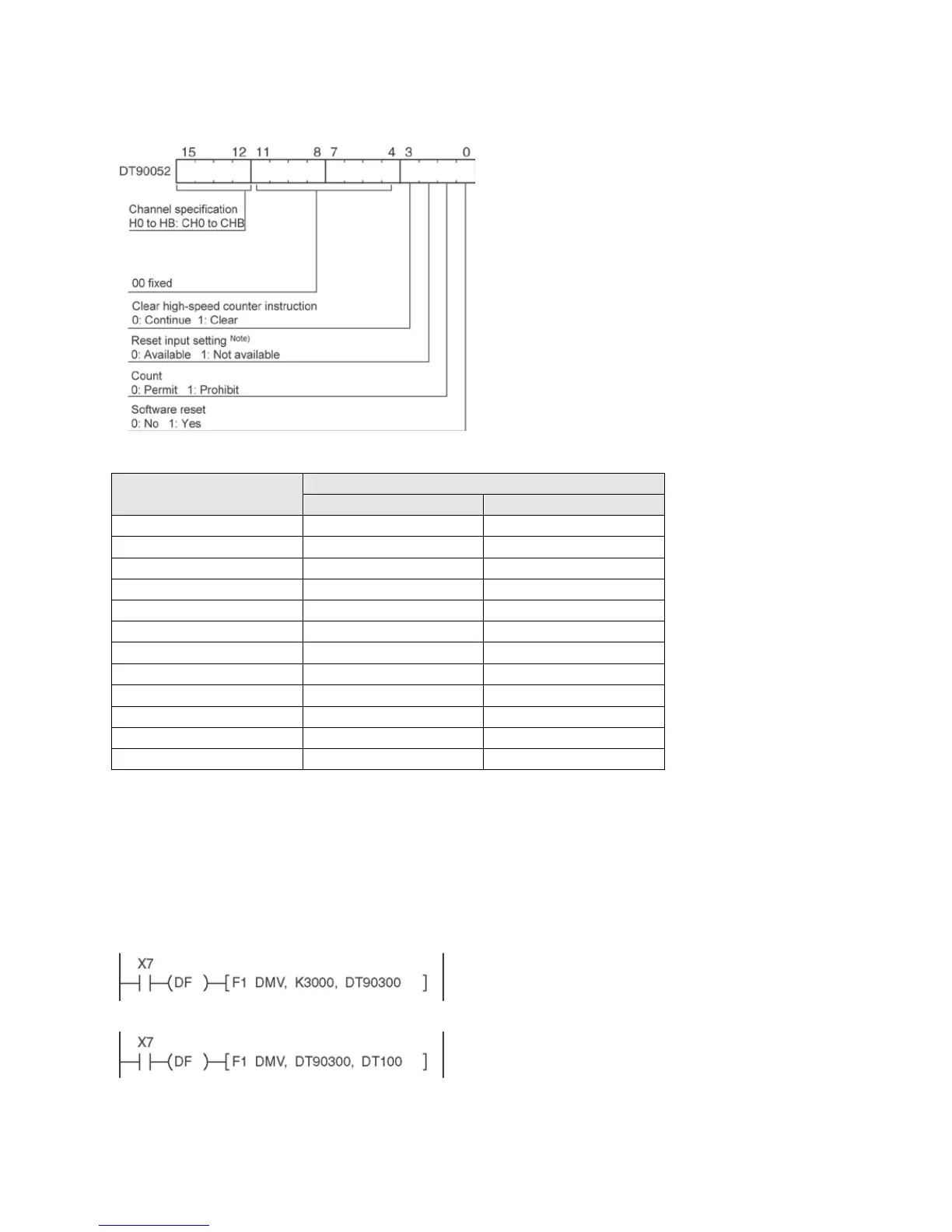

• The area DT90052 for writing channels
and control codes is allocated as shown in
the left figure.
• Control codes written with an F0 (MV)
instruction are stored by channel in
special data registers DT90360 to
DT90373.
Note) In the reset input setting, the reset
input (X102 or X202) allocated in the
high-speed counter setting of the
system registers are defined to
“enable/disable”.
High-speed counter control code monitor area
High-speed counter
Channel No.
Control code monitor area
chB DT90371 -
Elapsed value write and read instruction (F1)
• This instruction changes or reads the elapsed value of the high-speed counter.
• Specify this instruction together with the special data register DT90300.
• The elapsed value is stored as 32-bit data in the combined area of special data registers DT90300 and
DT90301.
• Use this F1 (DMV) instruction to set the elapsed value.
Example 1: Writing the elapsed value
Set the initial value of K3000 in the high-speed
counter.
Example 2: Reading the elapsed value
Read the elapsed value of the high-speed
counter and copies it to DT100 and DT101.
