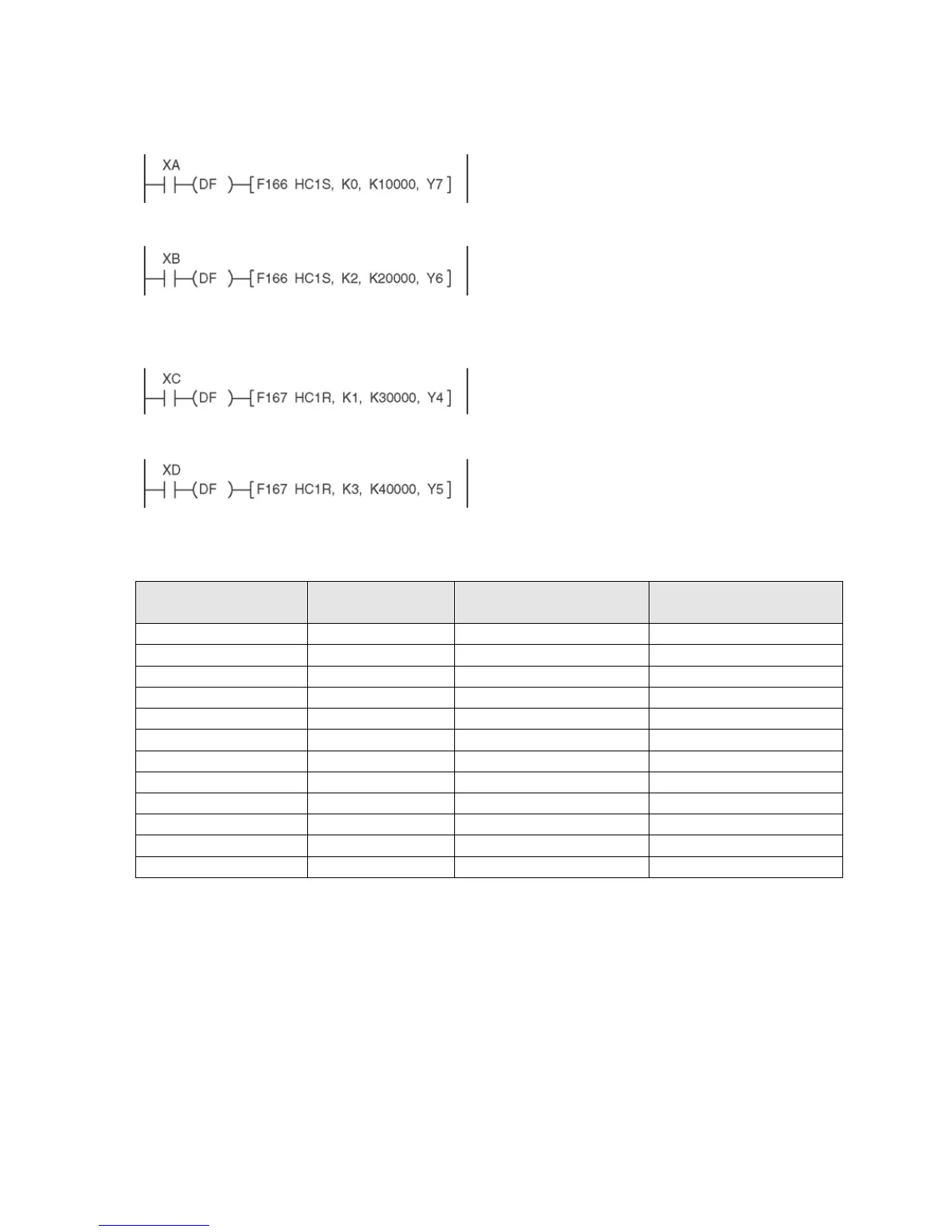

Target value match ON instruction (F166)
Example 1:
If the elapsed value (DT90300 and DT90301)
for channel 0 matches K10000, output Y7 turns
on.
Example 2:
If the elapsed value (DT90308 and DT90309)
for channel 2 matches K20000, output Y6 turns
on.
Target value match
OFF instruction (F167)
Example 1:
If the elapsed value (DT90304 and DT90305)
for channel 1 matches K30000, output Y4 turns
off.
Example 2:
If the elapsed value (DT90312 and DT90313)
for channel 3 matches K40000, output Y5 turns
off.
FP-X Ry type – Elapsed value and target value areas of high-speed counter ch0 to chB
High-speed counter
Channel No.
Control flag Elapsed value area Target value area
ch0 R9110 DT90300 to DT90301 DT90302 to DT90303
ch1
R9111
DT90304 to DT90305
DT90304 to DT90307
ch2 R9112 DT90308 to DT90309 DT90310 to DT90311
ch3
R9113
DT90312 to DT90313
DT90314 to DT90315
ch4 R9114 DT90316 to DT90317 DT90318 to DT90319
ch5
R9115
DT90320 to DT90321
DT90322 to DT90323
ch6 R9116 DT90324 to DT90325 DT90326 to DT90327
ch7
R9117
DT90328 to DT90329
DT90330 to DT90331
ch8 R9118 DT90332 to DT90333 DT90334 to DT90335
ch9
R9119
DT90336 to DT90337
DT90338 to DT90339
chA R911A DT90340 to DT90341 DT90342 to DT90343
chB
R911B
DT90344 to DT90345
DT90346 to DT90347
