Incremental Position Control Operation: Minus Direction
When X1 turns on, the pulse is output from CCW output Y101 of the specified channel CH0.
Note) In that case, the memory Y101 does not turn on/off according to the pulse output.

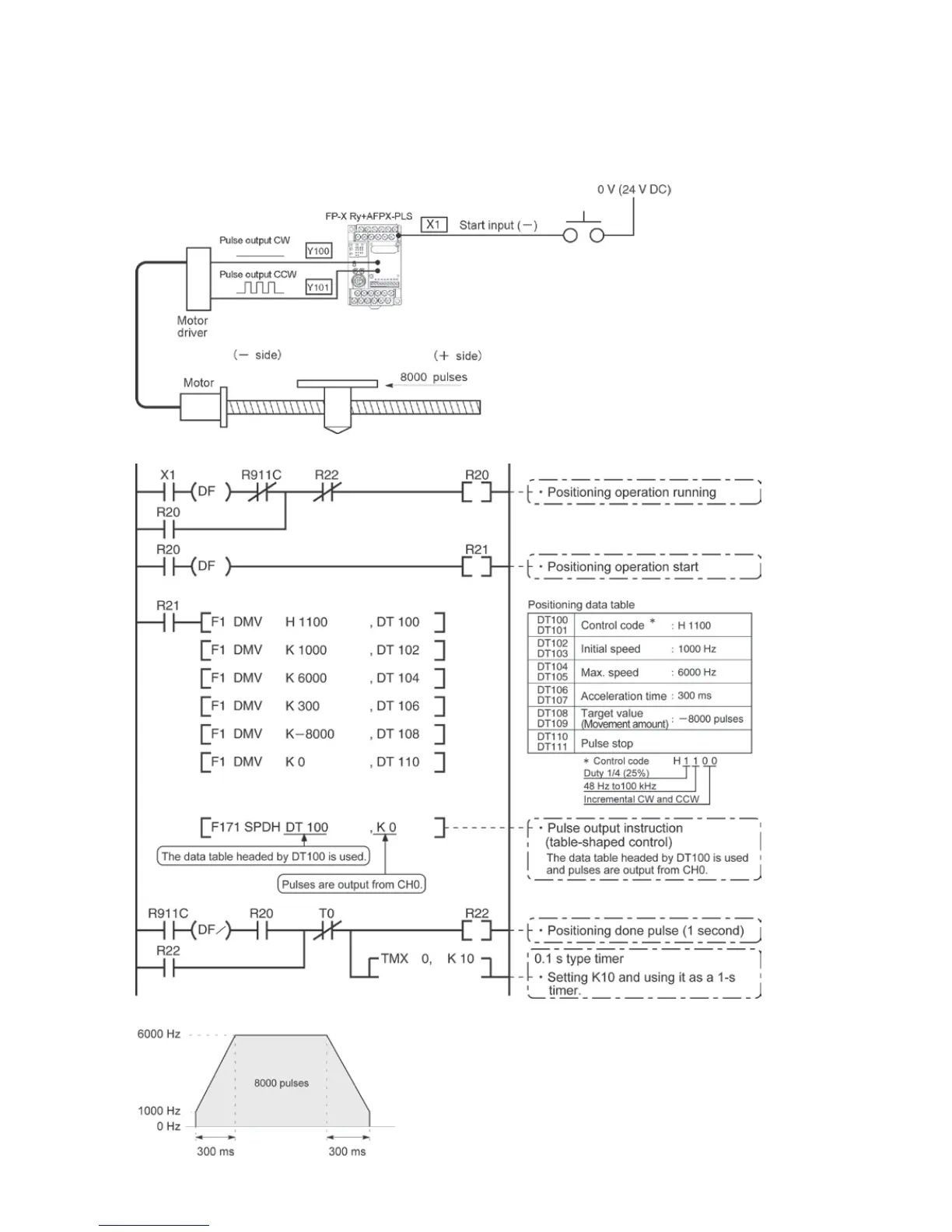

Program
Pulse output diagram
