2.4.3 Transistor (Tr) Type (PNP)
Output specifications
Item
Allowable load voltage
range
21.6 to 26.4 V DC
Max. load current 0.5 A
Max. inrush current 1.5 A
Input points per common 6 points/Common 8 points/Common, 6 points/Common
Off state leakage current 1 µA or less
On state voltage drop 0.5 V DC or less
Response
time
OFF→ON
2 µs or less (Y0 to Y3) (Load current: at 15 mA or more)
20 µs or less (C14: Y4 to Y5, C30/C60: Y4 to Y7)
(Load current: at 15 mA or more)
1 ms or less (C14: None, C30/C60: from Y8)
ON→OFF
8 µs or less (Y0 to Y3) (Load current: at 15 mA or more)
30 µs or less (C14: Y4 to Y5, C30/C60: Y4 to Y7)
(Load current: at 15 mA or more)
1 ms or less (C14: None, C30/C60: from Y8)
External power supply
(+ and – terminals)
Voltage 21.6 to 26.4 V DC
Current
Y0 to Y5 (Y7) Y8 to YD Y10 to Y17 Y18 to Y1D
C14
75 mA

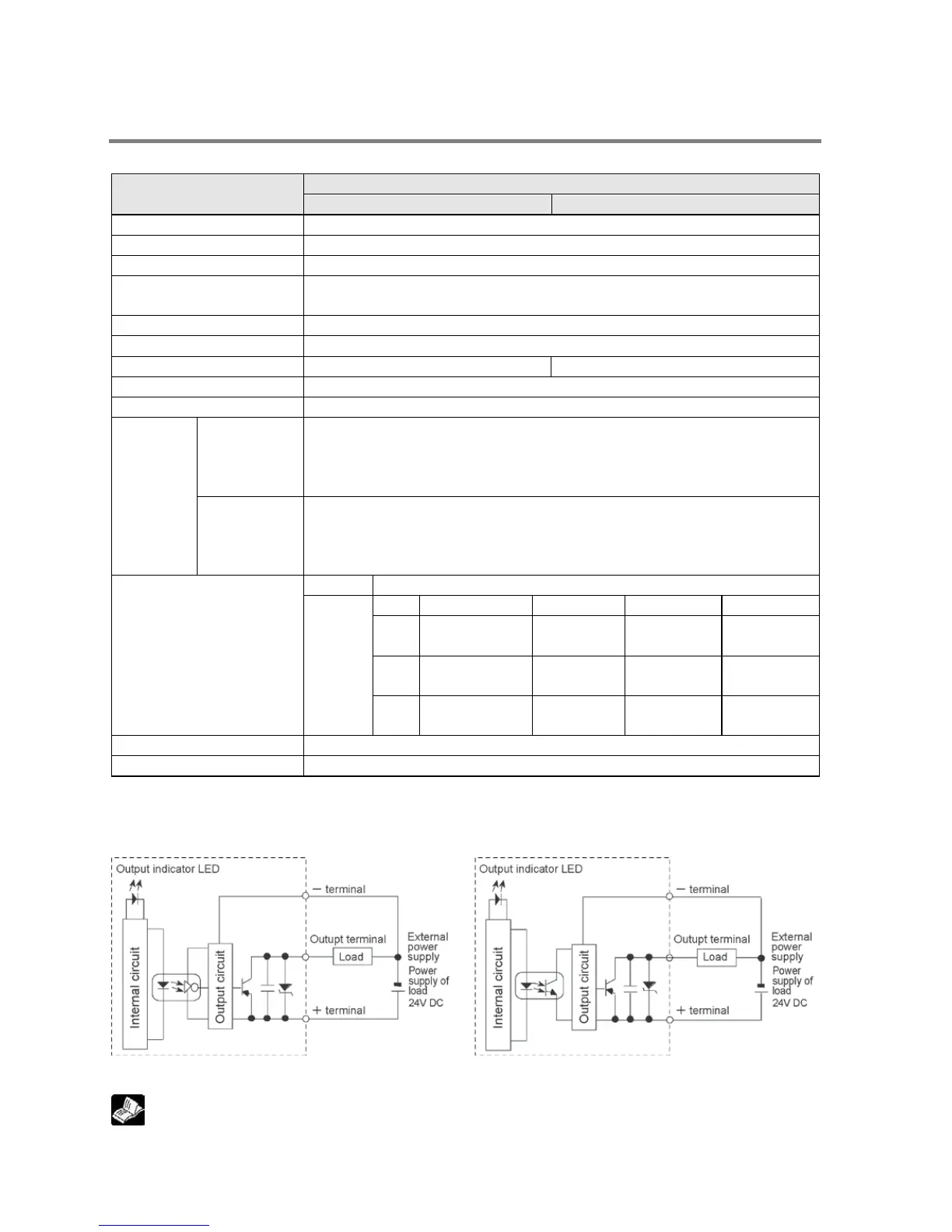

Circuit diagram
[PNP output]
ï¼»Y0 to Y3ï¼½ ï¼»from Y4ï¼½
Limitations on number of simultaneous input on points
Reference: <2.5 Limitations on Number of Simultaneous Input/Output On Points>
