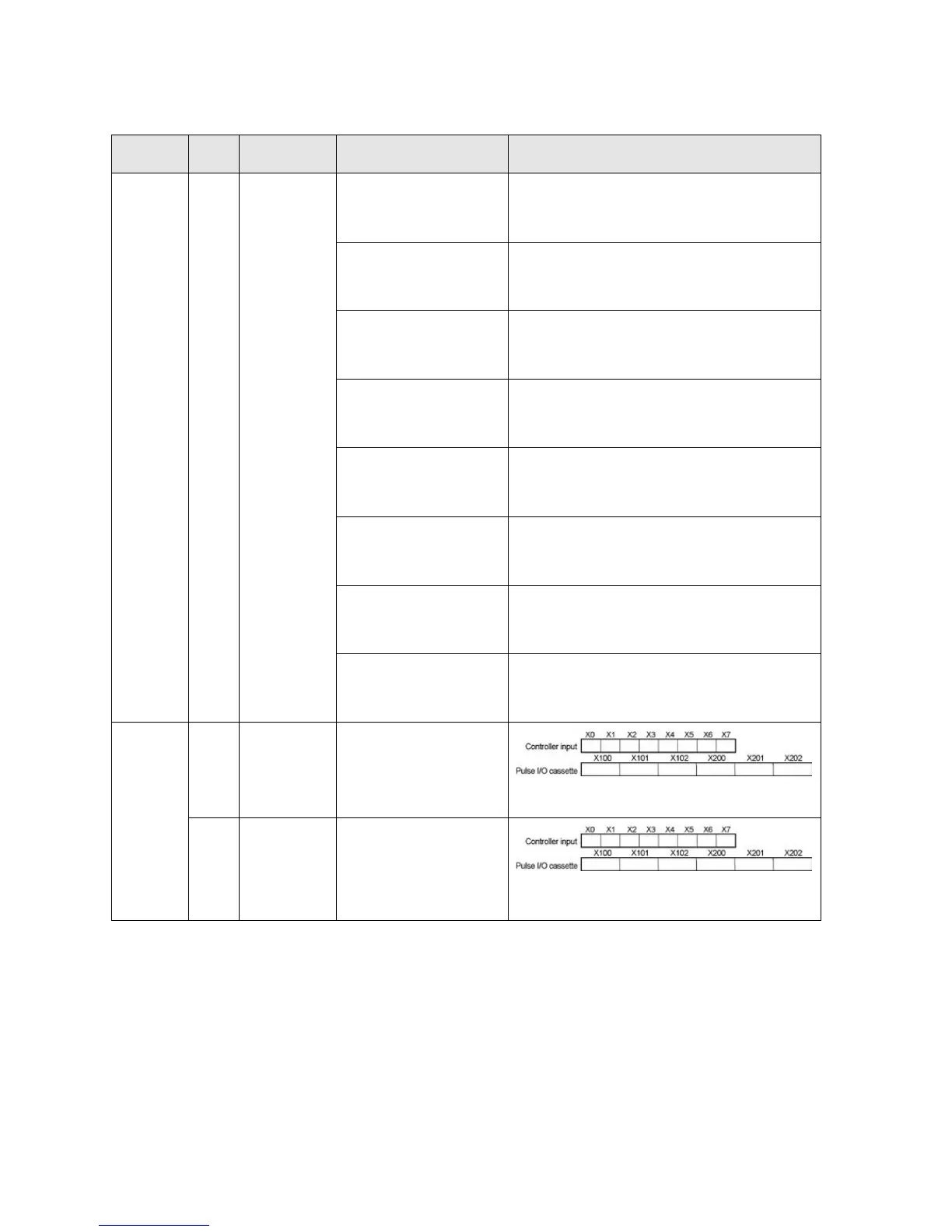

FP-X Ry type
Item
Add-
ress
Name Default value Description
Cont-
roller
input
settings
(HSC)
402
High-
speed
counter
settings
(X0 to X7)
CH0:
Do not set input X0 as
high-speed counter
Do not set input X0 as high-speed counter.
Incremental input (X0)
Decremental input (X0)
Two-phase input (X0, X1)
CH1:
Do not set input X1 as
high-speed counter
Do not set input X1 as high-speed counter.
Incremental input (X1)
Decremental input (X1)
Two-phase input (X0, X1)
CH2:
Do not set input X2 as
high-speed counter
Do not set input X2 as high-speed counter.
Incremental input (X2)
Decremental input (X2)
Two-phase input (X2, X3)
CH3:
Do not set input X3 as
high-speed counter
Do not set input X3 as high-speed counter.
Incremental input (X3)
Decremental input (X3)
Two-phase input (X2, X3)
CH4:
Do not set input X4 as
high-speed counter
Do not set input X4 as high-speed counter.
Incremental input (X4)
Decremental input (X4)
Two-phase input (X3 X4)
CH5:
Do not set input X5 as
high-speed counter
Do not set input X5 as high-speed counter.
Incremental input (X5)
Decremental input (X5)
Two-phase input (X4, X5)
CH6:
Do not set input X6 as
high-speed counter
Do not set input X6 as high-speed counter.
Incremental input (X6)
Decremental input (X6)
Two-phase input (X5, X6)
CH7:
Do not set input X7 as
high-speed counter
Do not set input X7 as high-speed counter.
Incremental input (X7)
Decremental input (X7)
Two-phase input (X6, X7)
Inter-
rupt/
pulse
catch
settings
403
Pulse
catch
input
settings
Not set
The pressed contact is set for the pulse
catch input.
404
Interrupt
input
settings
Not set
The pressed contact is set for the interrupt
input.
