General Information Urban Multi “MX1R, ME1R Series” Using R-407C 221
2. Outline
2.1 MX1R Series

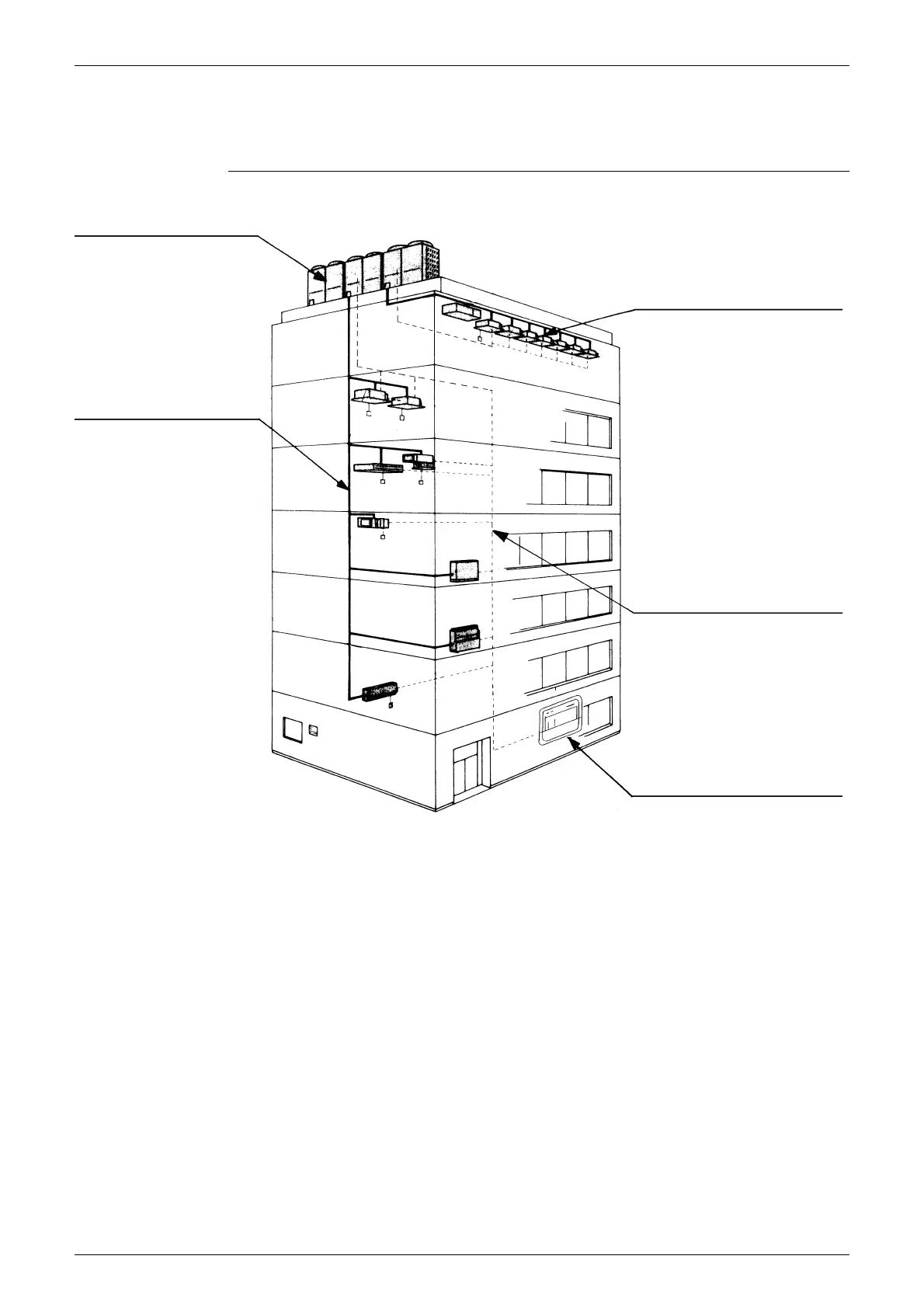

UM Inverter "MX1R Series"
Branch piping system
Indoor unit
* 5HP 8units
8HP 13units
10HP 16units
New transmission system
New centralised system
*Piping run from three directions.
*Equipped with automatic indoor /
outdoor unit wiring and piping check
function.
*100 meters long refrigerant piping.
*Handles 15~16-story buildings with 50
meters level difference.
(40 m when outdoor unit is below.)
Outdoor unit
*Wide selection including 10 types and 61
models.
*Up to 16 units can be connected to a
single system.
*Minimum capacity equivalent to 0.8 HP.
*Same wiring can be used for transmission
between indoor/outdoor units and
centralised control (no polarity).
*Wiring length up to 1,000 meters
(Total wiring length up to 2,000 meters)
*128 units can be connected for individual
control (if using 2 central remote
controllers).
(M003)
