Interface Adaptor PACD011001C2
610 Appendix
6.5 Interface Adaptor for Other Air Conditioners (CZ-103AP11P)
This optional accessory is a contact input/output interface adaptor for optional controllers for centralised
control and apparatus that cannot be directly connected to them. Connecting this optional accessory to an
optional controller for centralised control lets you turn the apparatus on/off by optional remote controller for
centralised control and monitor normal operation and malfunctions. This optional accessory can be
connected with a power consumption counting unit or data station.

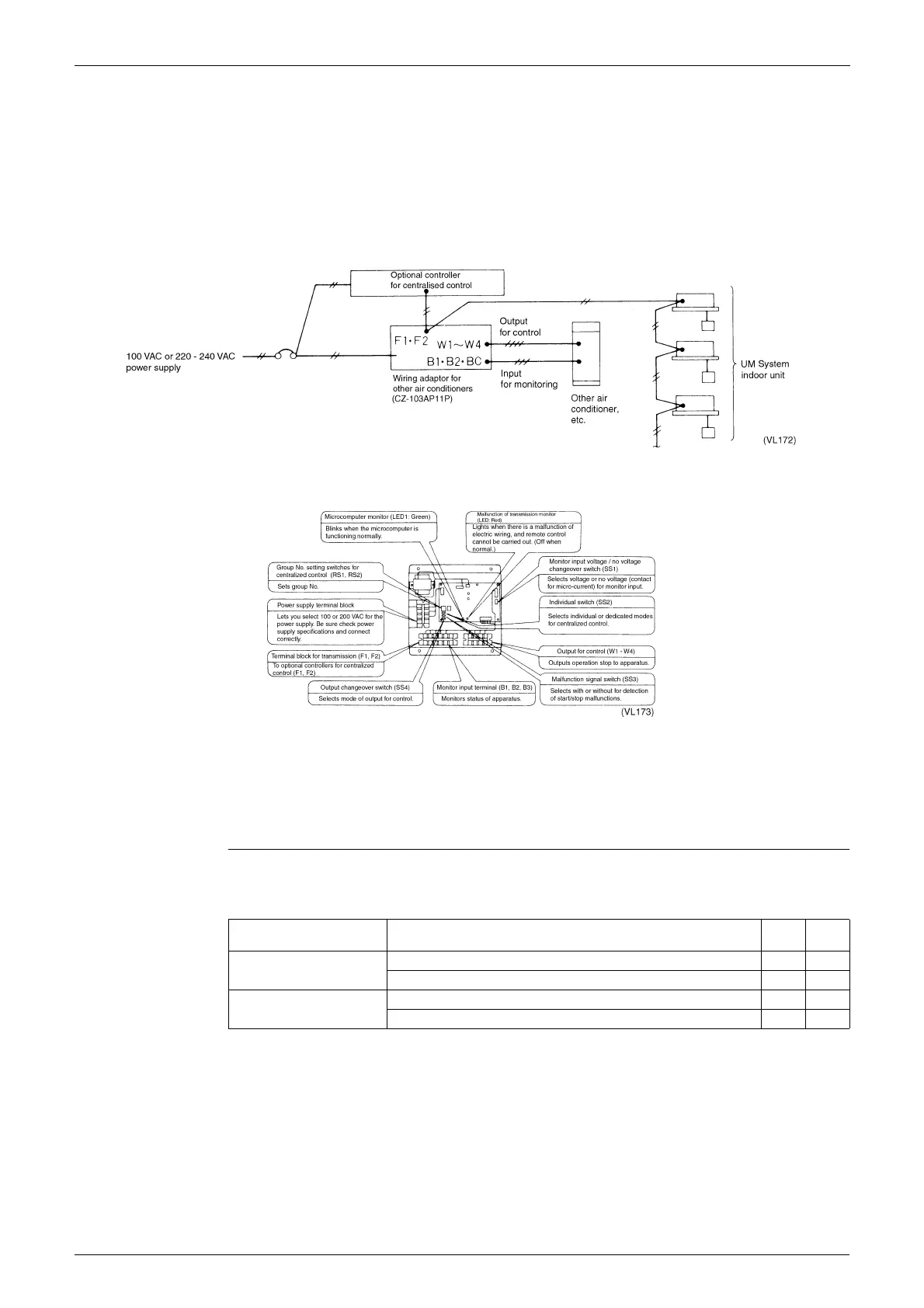

6.5.1 Outline of System
6.5.2 Wiring
„
Setting of group No. for centralised control
Set from among 1~4 with setting switch RS1.
Set from among 0~9 and A~F with RS2.
Be careful not to duplicate a group No. of other apparatus when setting.
Output for Control
„
ON output terminals (W1, W2) and OFF output terminals (W3, W4) are no voltage contact output.
„
Contact specifications are 2 A~1 mA for 220~240VAC, and 3 A~1 mA for 5~24 VDC.
(ON): Instantaneous output of 1 second ON
„
An adaptor for wiring is required for remote control in order to receive output for control of wiring adaptor
for other air conditioners such as ordinary air conditioner, etc.
Output mode changeover
switch SW3
Ry1 Ry2
Constant Instruction from optional controller for centralised control is ON. ON OFF
Instruction from optional controller for centralised control is OFF. OFF ON
Instantaneous Instruction from optional controller for centralised control is ON. (ON) OFF
Instruction from optional controller for centralised control is OFF. OFF (ON)
