PACD011001C2 Operation Flowcharts
Troubleshooting Urban Multi “MX1R, ME1R Series” Using R-407C 325
1. Operation Flowcharts

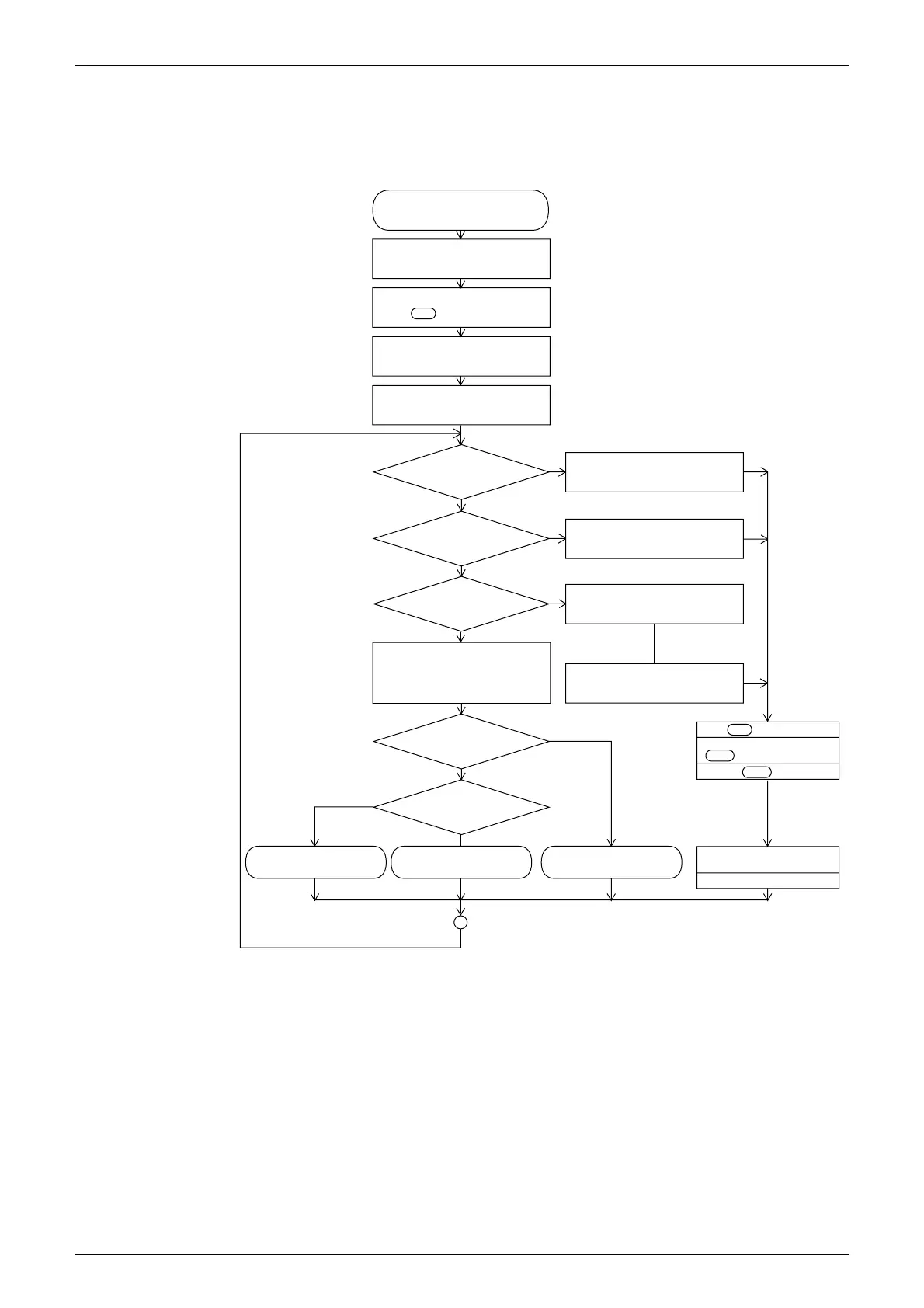

1.1 Indoor Unit Operation Flowchart
Start
Power on
Louver lock detection
Remote contoller lamp on
Operation ON/OFF?
Action of safety device?
Fan or Temperature control?
Cooling or heating?
Cooling operation Heating operation Fan operation
Is operation display
lamp blinking?
Initialize electronic expansion
valve YIE
Operation display lamp: OFF
Operation display: Blinking
Malfunction code: Displayed
Operation display: Off
Malfunction mode Display:
Cancelled
Fan MF :OFF
Louver M1S :OFF
Drain-up kit (M1P): OFF
Electronic expansion valve
Y1E Closed
Optional auxiliary electric
heater (52H): OFF
Depress reset Operation ON/OFF
switch
Operation display lamp: ON
Air flow rate setting display: ON
Air flow direction setting display:
ON
Temperature setting display: ON
Indicates previous settings for air flow
rate and direction and temperature
NO
ON
OFF
YES
NO
Option
YES
Fan
(Ventilation)
Temperature
contorl
Heating
A
∗1
∗2
∗3
(M052)
Cycle operation
using operation
ON/OFF switch
Cooling
∗
1 In the event of a malfunction, the malfunction code is displayed in the remote controller’s malfunction
code display.
∗
2 When the auxiliary electric heater is on, the fan stops after one minute residual operation.
∗
3 When the drain-up kit is ON, it stops after five minutes residual operation.
