PACD011001C2 Product Outline
General Information UM Combination “MA1R Series” Using R-407C 411

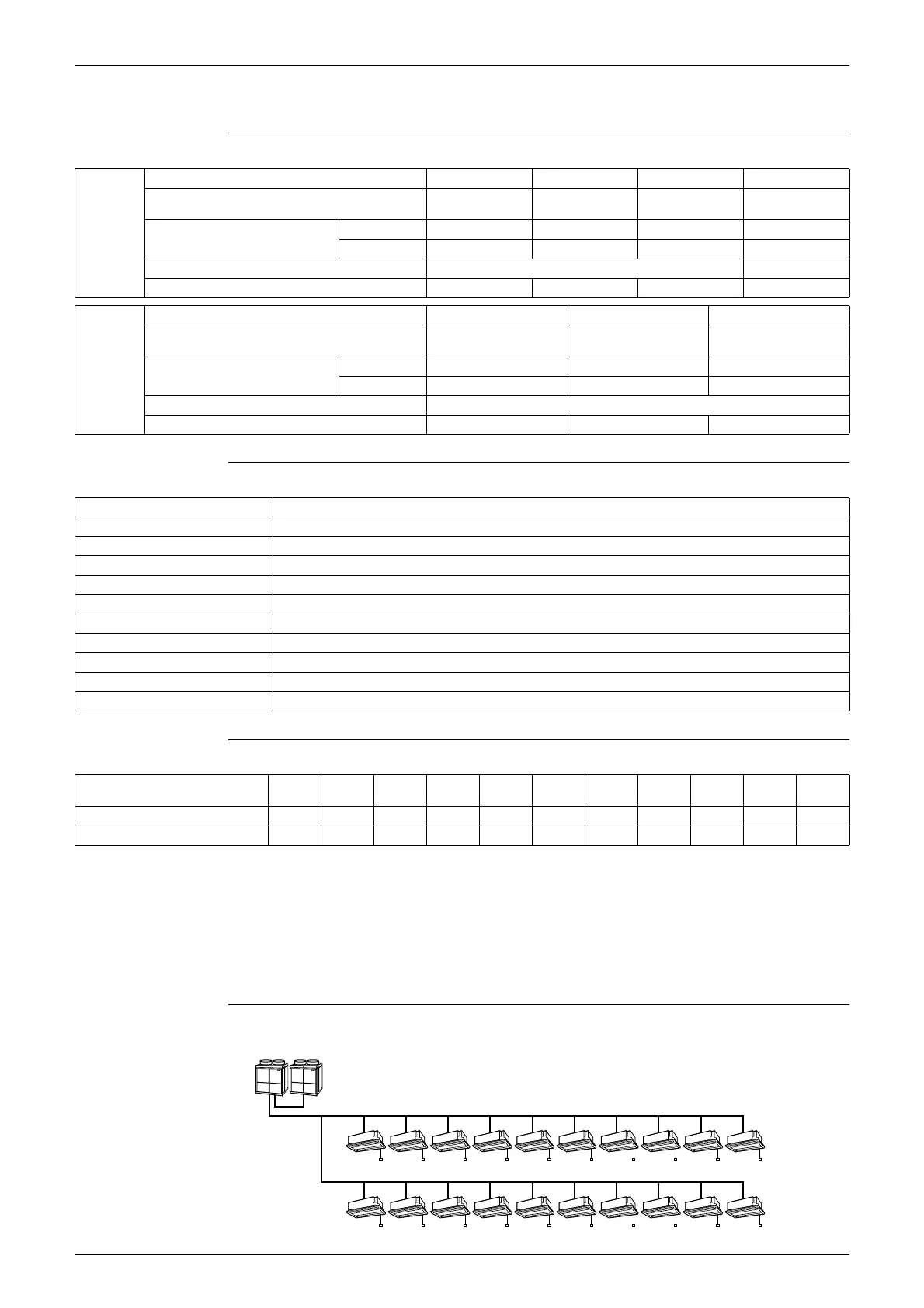

1.3 Model Configuration and Combination
Number of units and capacity of connectable indoor units
Connectable indoor unit
Indoor unit capacity
Use the above tables to determine the capacities of indoor units to be connected. Make sure the total
capacity of indoor units connected to each outdoor unit is within the specified value (kW).
„
The total capacity of connected indoor units must be within a range of 50 to 130% of the rated capacity
of the outdoor unit.
„
In some models, it is not possible to connect the maximum number of connectable indoor units. Select
models so the total capacity of connected indoor units conforms to the specification.
Combination
example
„
PA-20MA1XPK / 20-unit system
Indoor unit / CS-25LMHPP × 20 units
Standard
series
Equivalent output 16HP 18HP 20HP 24HP
R407C Urban Multi Combination series system
model
PA-16MA1XPK PA-18MA1XPK PA-20MA1XPK PA-24MA1XPK
Outdoor unit combination Main unit CU-8MA1XPK CU-10MA1XPK CU-10MA1XPK CU-16MA1XPK
Sub unit CU-8MB1XPK CU-8MB1XPK CU-10MB1XPK CU-8MB1XPK
Total number of connectable indoor units Up to 20 units Up to 32 units
Total capacity of connectable indoor units 200~520 225~585 250~650 300~780
Standard
series
Equivalent output 26HP 28HP 30HP
R407C Urban Multi Combination series system
model
PA-26MA1XPK PA-28MA1XPK PA-30MA1XPK
Outdoor unit combination Main unit CU-16MA1XPK CU-20MA1XPK CU-20MA1XPK
Sub unit CU-10MB1XPK CU-8MB1XPK CU-10MB1XPK
Total number of connectable indoor units Up to 32 units
Total capacity of connectable indoor units 325~845 350~910 375~975
Indoor unit Model name
4-way cassette type CS-20·25·32·40·50·63·80·100·125UMHPP
2-way cassette type CS-20·25·32·40·50·63·80·125LMHPP
Corner type CS-25·32·40·63DM1HPK
Built-in type CS-20·25·32·40·50·63·80·100·125FMHPP
Small duct type CS-20·25NM1HPP
Ducted type CS-40·50·63·80·100·125·200·250EMHPK
Ceiling type CS-32·63·100TMJPL
Wall type CS-20·25·32·40·50·63KM1HPK
Floor standing type CS-20·25·32·40·50·63PM1HPK
Concealed floor standing type CS-20·25·32·40·50·63RM1HPK
New refrigerant model code 20 type 25 type 32 type 40 type 50 type 63 type 80 type 100
type
125
type
200
type
250
type
Selecting model capacity 2.2kW 2.8kW 3.5kW 4.5kW 5.6kW 7.0kW 9.0kW 11.2kW 14.0kW 22.4kW 28.0kW
Equivalent output 0.8HP 1HP 1.25HP 1.6HP 2.0HP 2.5HP 3.2HP 4HP 5HP 8HP 10HP
(V0806)
