Function PACD011001C2
10 Function Urban Multi “MX1, ME1 Series” Using R-22
1. Function

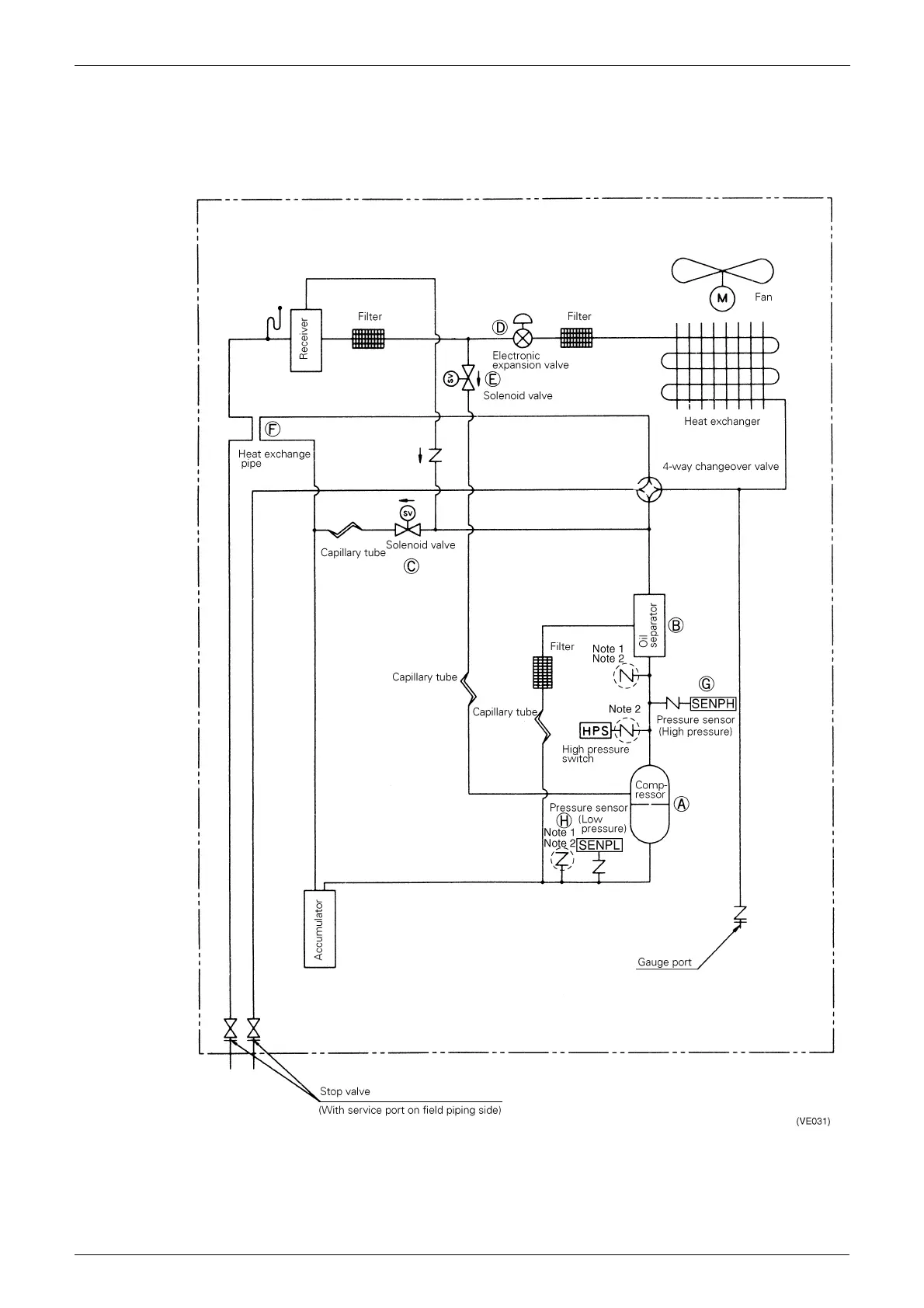

1.1 Outdoor Unit Refrigerant System Diagram
1.1.1 CU-5MX1SPE
