1.25 Combining Different Types of Centralised Control Devices
<CZ-01ESM11P·CZ-01ANA11P·CZ-01ESW11P>
In addition to using optional controllers for centralised control independently, you also combine and
connect a schedule timer and unified ON/OFF controller with a central remote controller. By designing with
components, you can construct the best central remote control system for your purpose and scale.

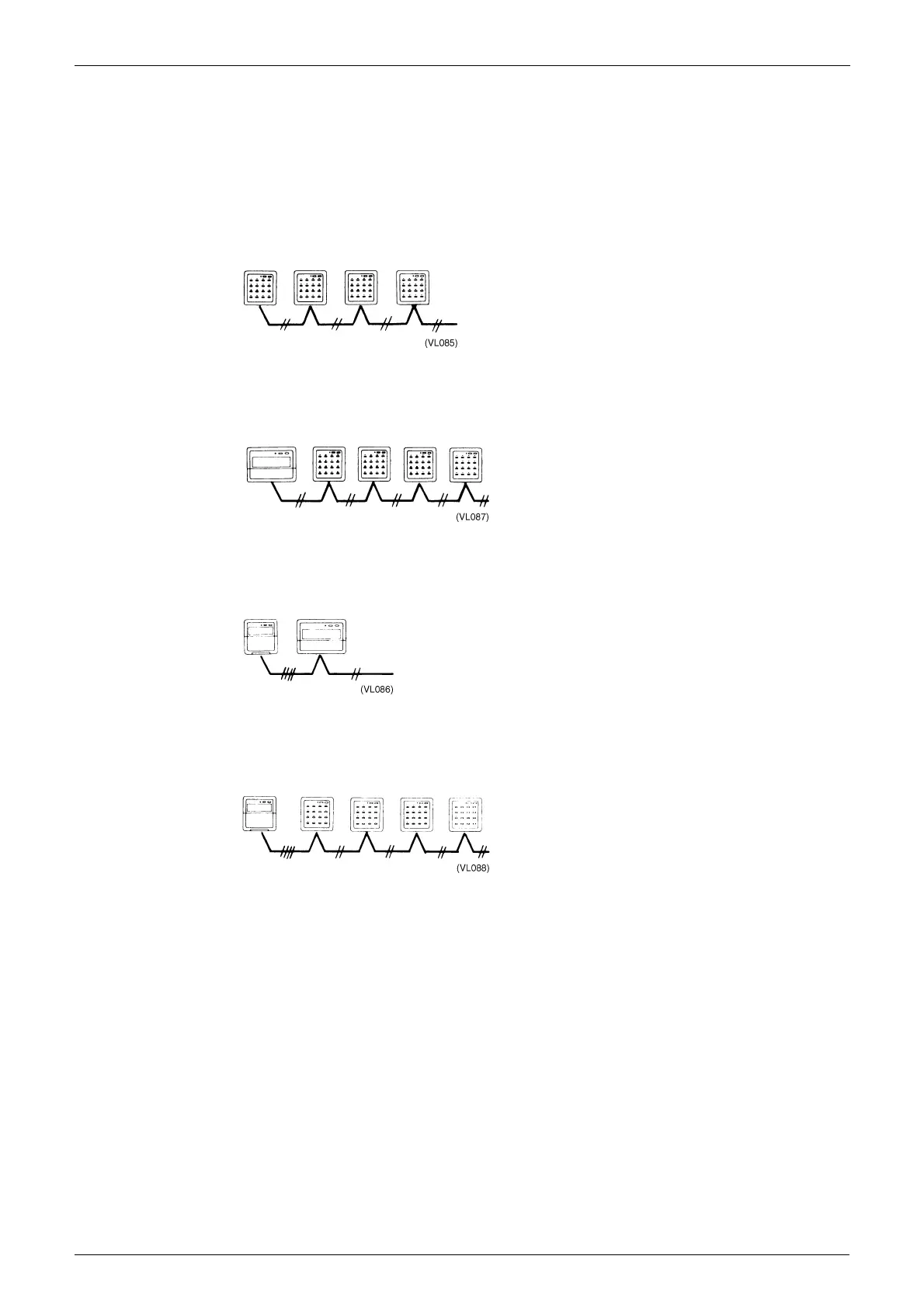

1.25.1 Example of CZ-01ESM11P / CZ-01ANA11P / CZ-01ESW11P Systems
„
Unified ON/OFF controller
Unified ON/OFF controllers are connected in accordance with the number of indoor units. A single line
network can contain up to 16 groups of four units each.
„
Central remote controller plus unified ON/OFF controller
Combines the functionality of a central remote controller with the operability of a unified ON/OFF controller.
Enables central control of up to 64 groups of indoor units.
„
Schedule timer plus central remote controller
Allows you to set up to eight weekly schedules for turning units ON/OFF twice each day. Enables
scheduled operation of up to 64 groups of indoor units individually or by zone.
„
Schedule timer plus unified ON/OFF controller
Allows you to set the time for turning units ON/OFF twice each day.
Enables unified scheduled operation of up to 64 groups of indoor units.
