1.2.2 Changes in Indoor Units
Drain Pump
When the TEST OPERATION button has been pushed in order to facilitate checking drainage when
installing, the drain pump is force-operated regardless of the temperature control mode. If a humidifier is to
be included in the setup, you must set to “Equipped humidifier” with the remote controller. (With the factory
settings, the drain pump is not operated during heating.)
Swing Louver
The wall mounted type is equipped with a swing louver. The ceiling mounted cassette type can be set to
prevent the ceiling from being soiled.
Able to Use
Wireless Remote
Controllers
The multi flow, double flow, ceiling suspended and wall mounted types can be fitted with a wireless remote
controller kit.
(Other types can use a separate wireless remote controller.)
1.2.3 Changes in Outdoor Units
Equipped with Oil
Temperature
Sensor Thermistor
(8 and 10HP)
Oil temperature detection has been incorporated into control in order to prevent wet operation and improve
dilution of oil.

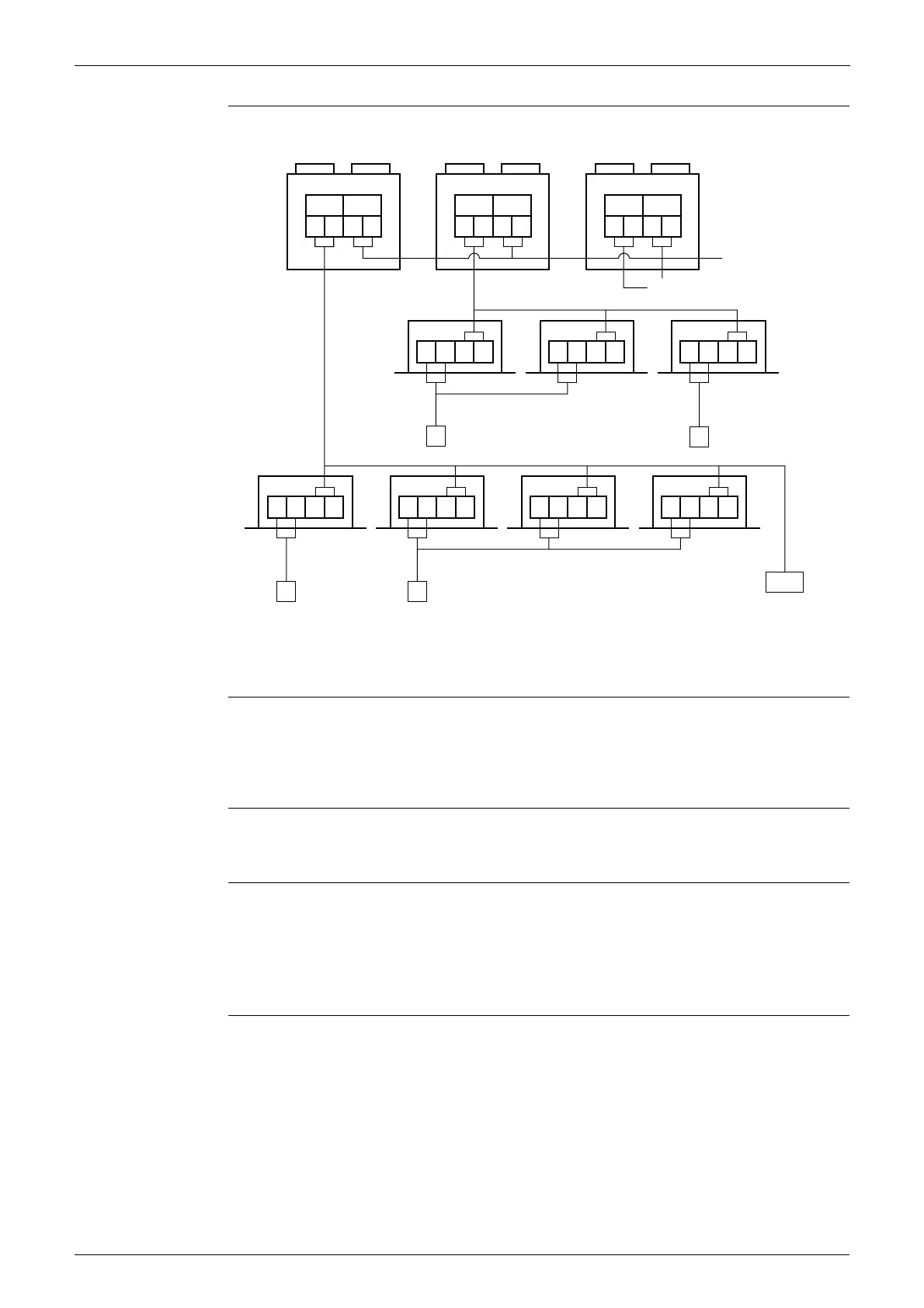

Outdoor unit
