Outline of System PACD011001C2
8 General Information Urban Multi “MX1, ME1 Series” Using R-22

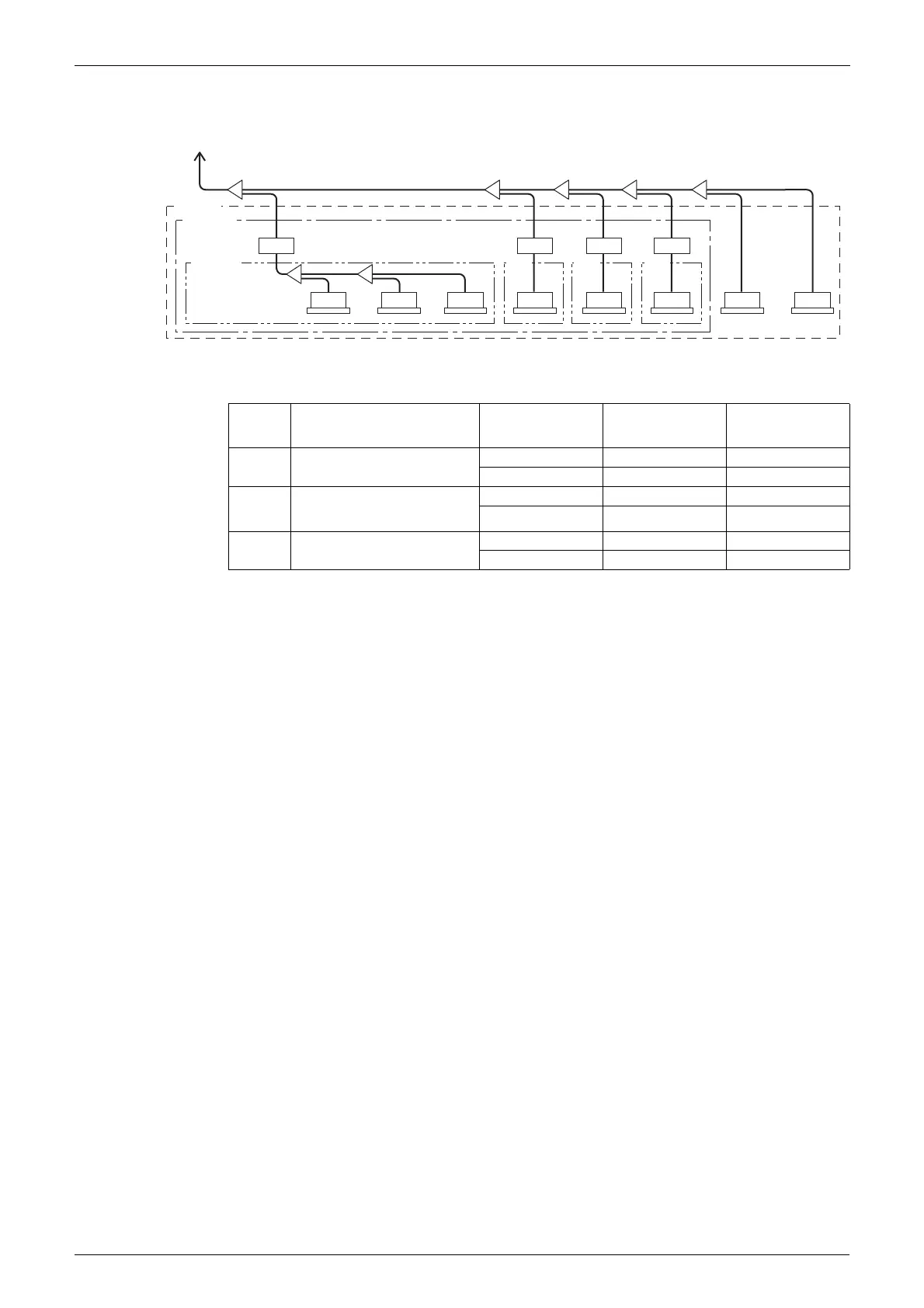

1.3.2 Allowed Range of Indoor Unit and HR Box Connection
„
Arrange systems to conform below conditions referring to above diagram.
Indoor unit
( Cooling
only unit )
( Cooling
only unit )
HR box
Range A
Range B
Range C
Range C Range C Range C
(M103)
Range Item Model of outdoor
unit and HR box
Total capacity of
connectable indoor
units
Max. number of
connectable indoor
units
Range A Total indoor unit capacity CU-8ME1XPA 11.2 to 29.1kW 13 units
CU-10ME1XPA 14 to 36.4kW 16 units
Range B Total indoor unit capacity
allowed for simultaneous
cooling/heating operations
CU-8ME1XPA 11.2kW or more 13 units
CU-10ME1XPA 14kW or more 16 units
Range C Total indoor unit capacity
allowed for connection to HR box
CZ-100HR1HE less than 11.2kW 5 units or less
CZ-160HR1HE 11.2 to 18kW 6 units or less
To Next Page
