PACD011001C2 Test Operation
Test Operation Urban Multi “MX1R, ME1R Series” Using R-407C 289

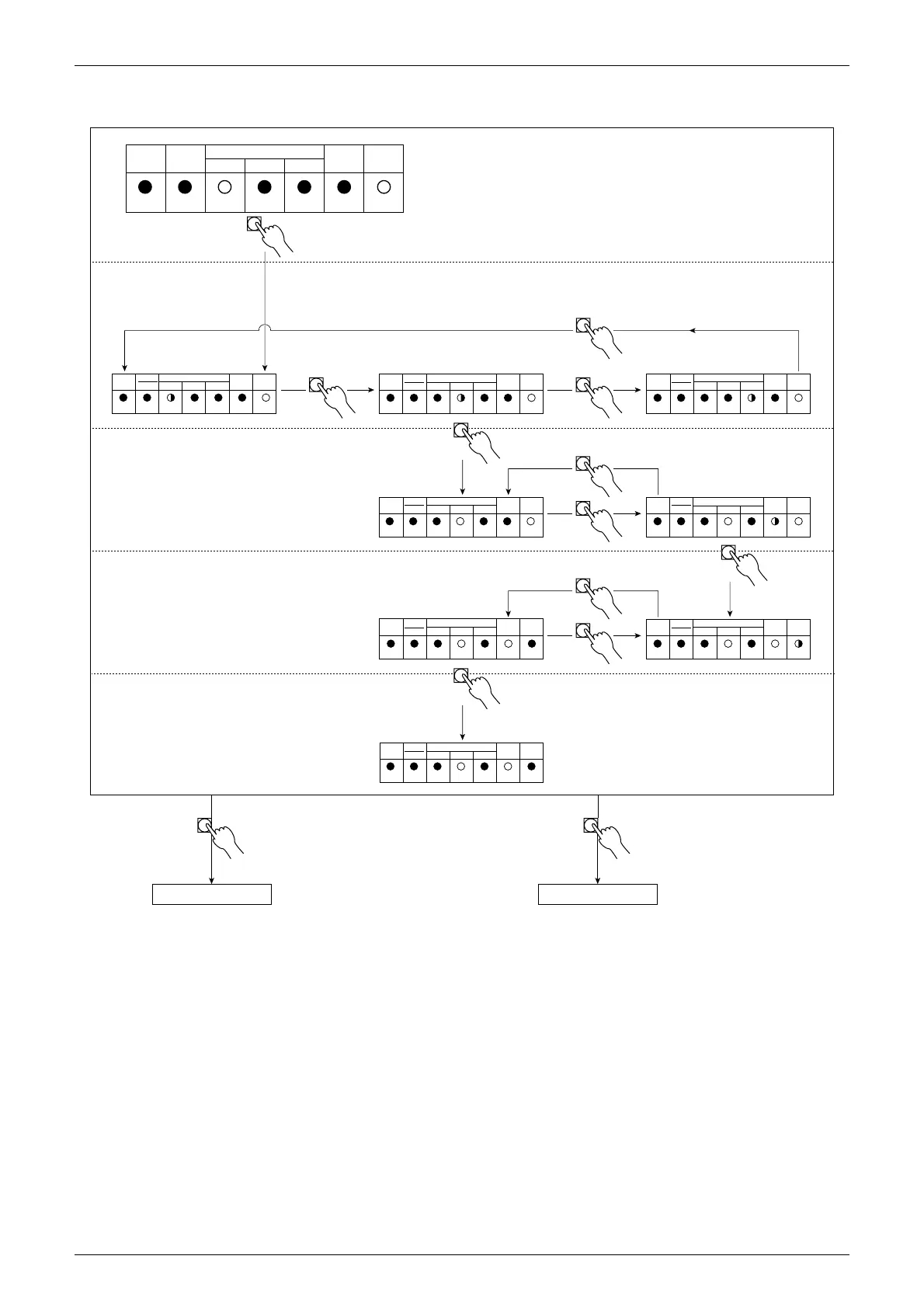

1.5.1 Setting Mode 1
The factory settings are:
Individual (C/H SELECT), OFF (L.N.O.P.), ON (SEQ. START)
You can change the low noise and
sequential start settings by pushing the SET switch.
To skip settings you don't want to change, push the RETURN switch
and go to the next setting.
Change cool/heat
selection to MASTER.
An optional BMS interface adaptor for outdoor unit is required
if you have set cool/heat selection to MASTER or SLAVE.
Change low noise operation to "ON".
BMS interface adaptor for outdoor unit is required
if low noise operation is set to "ON".
Change sequential start to "OFF".
Setting complete
GROUP MASTER (cool/heat selection),
ON (low noise), OFF (sequential start)
SET SET
SET
SET
SET
SET
SET
RETURN
RETURN
RETURN
Monitor mode
MODE
Setting mode 2
MODE
Push and hold for 5 sec.
(M028)
MODE TEST L.N.O.P.
SEQ.
IND MASTER SLAVE
START
