PACD011001C2 Test Operation
Test Operation Urban Multi “MX1R, ME1R Series” Using R-407C 299

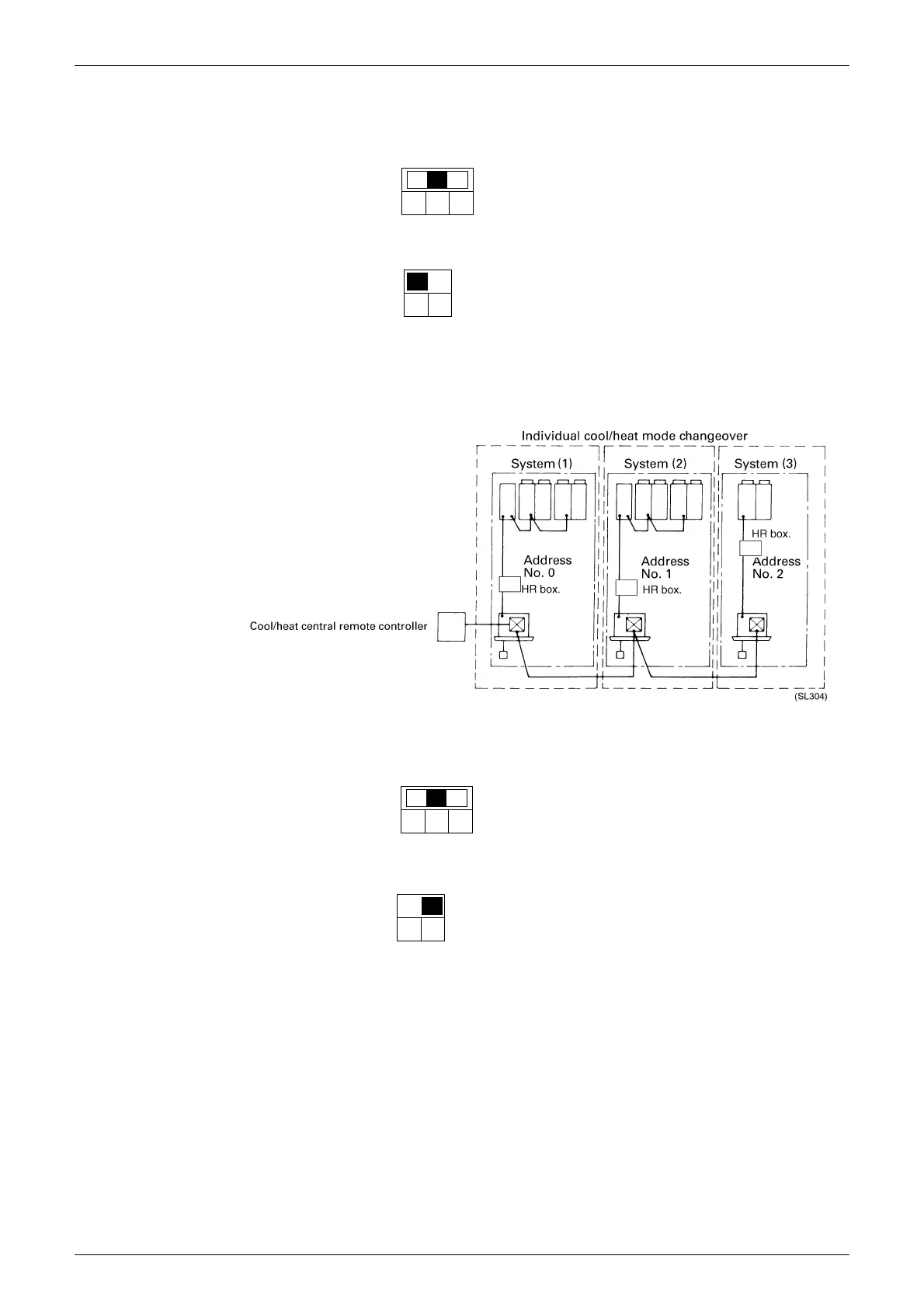

<Settings of switches on the PC board adaptor>
BMS interface adaptor for outdoor unit
<Changeover by cool/heat central remote controller>
<Switch settings on adaptor printed circuit board>
„
SS1 (“BOTH” is selected when demand
control is carried out at the same
time.)
„
SS2
„
DS1·2
BOTH C / H DE
C / H
(SL302)
OFF ON
OFF
(SL303)
„
SS1 (When demand control is used
together, set the switch to “BOTH”)
„
SS2
„
DS1·2 For individual control, do not use the same address twice.
BOTH C / H DE
Cool
(SL305)
OFF ON
ON
(SL306)
To Next Page
