PACD011001C2 Test Operation
Test Operation UM Combination “MA1R Series” Using R-407C 467
Supplement
„
Supplement to
1.5.3
and
1.5.4

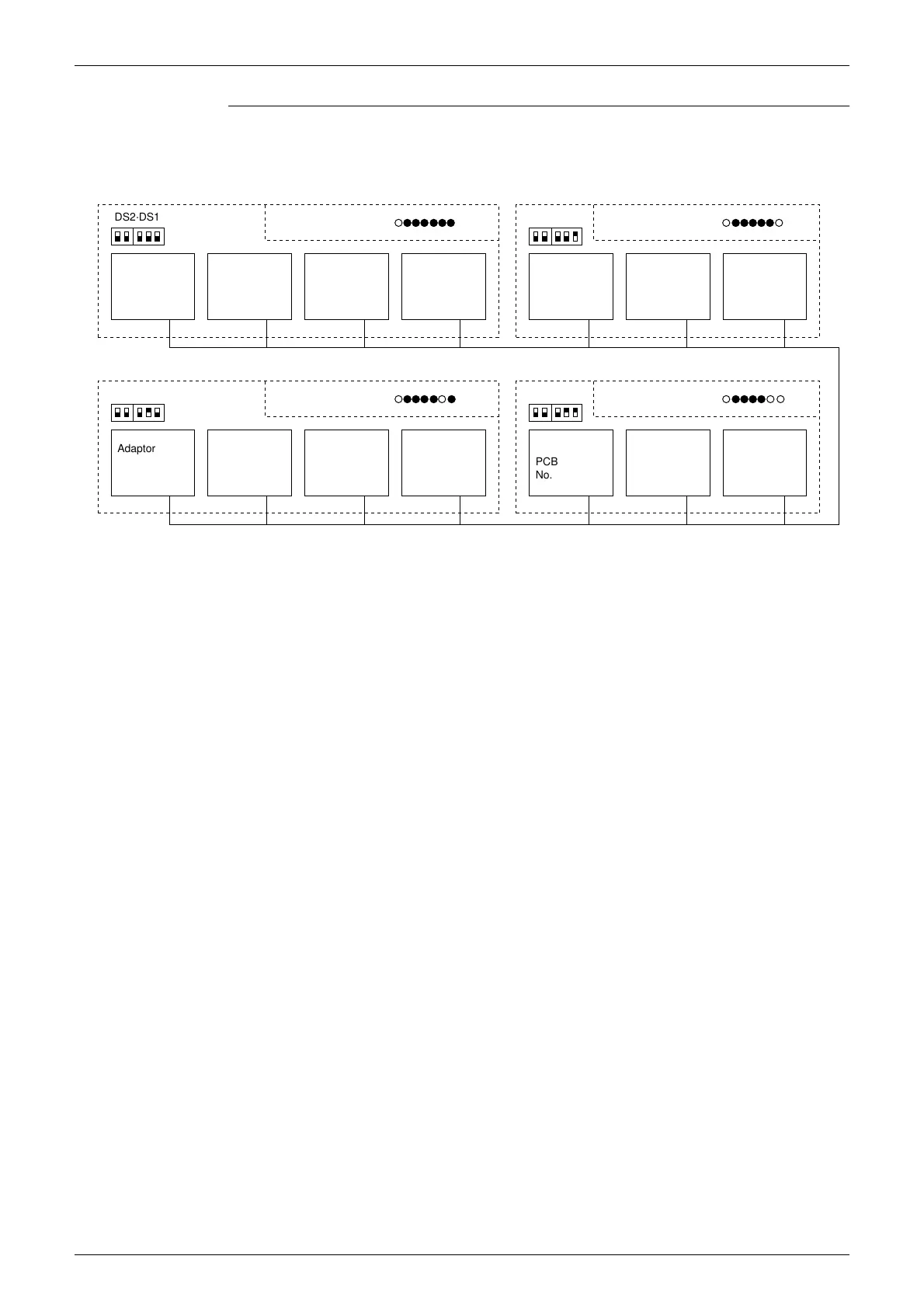

If using several adaptor PCB and you want to select cool/heat mode for each adaptor PCB, set DS1 / DS2
of the adaptor PCB and the cool/heat group address on the outside unit’s PCB to the same setting in
setting mode 2.
Adaptor
PCB
No. 0
Outdoor unit
group master
No. 0
Outdoor unit
group slave
No. 0
Outdoor unit
group slave
No. 0
Cool/heat group address ¡ llllll
DS2·DS1
Adaptor
PCB
No. 1
Outdoor unit
group master
No. 1
Outdoor unit
group slave
No. 1
Cool/heat group address ¡ lllll ¡
DS2·DS1
Adaptor
PCB
No. 2
Outdoor unit
group master
No. 2
Outdoor unit
group slave
No. 2
Outdoor unit
group slave
No. 2
Cool/heat group address ¡ llll ¡ l
DS2·DS1
Adaptor
PCB
No. 3
Outdoor unit
group master
No. 3
Outdoor unit
group slave
No. 3
Cool/heat group address ¡ llll ¡¡
DS2·DS1
(VL028)
