Interface Adaptor PACD011001C2
604 Appendix
„
Remote control mode selector switch (RS1) setting
Note:
Forced off (disregard input A) is effected when using input B constant input at positions 7~A. Input B
constant input cannot be used by B.
‹

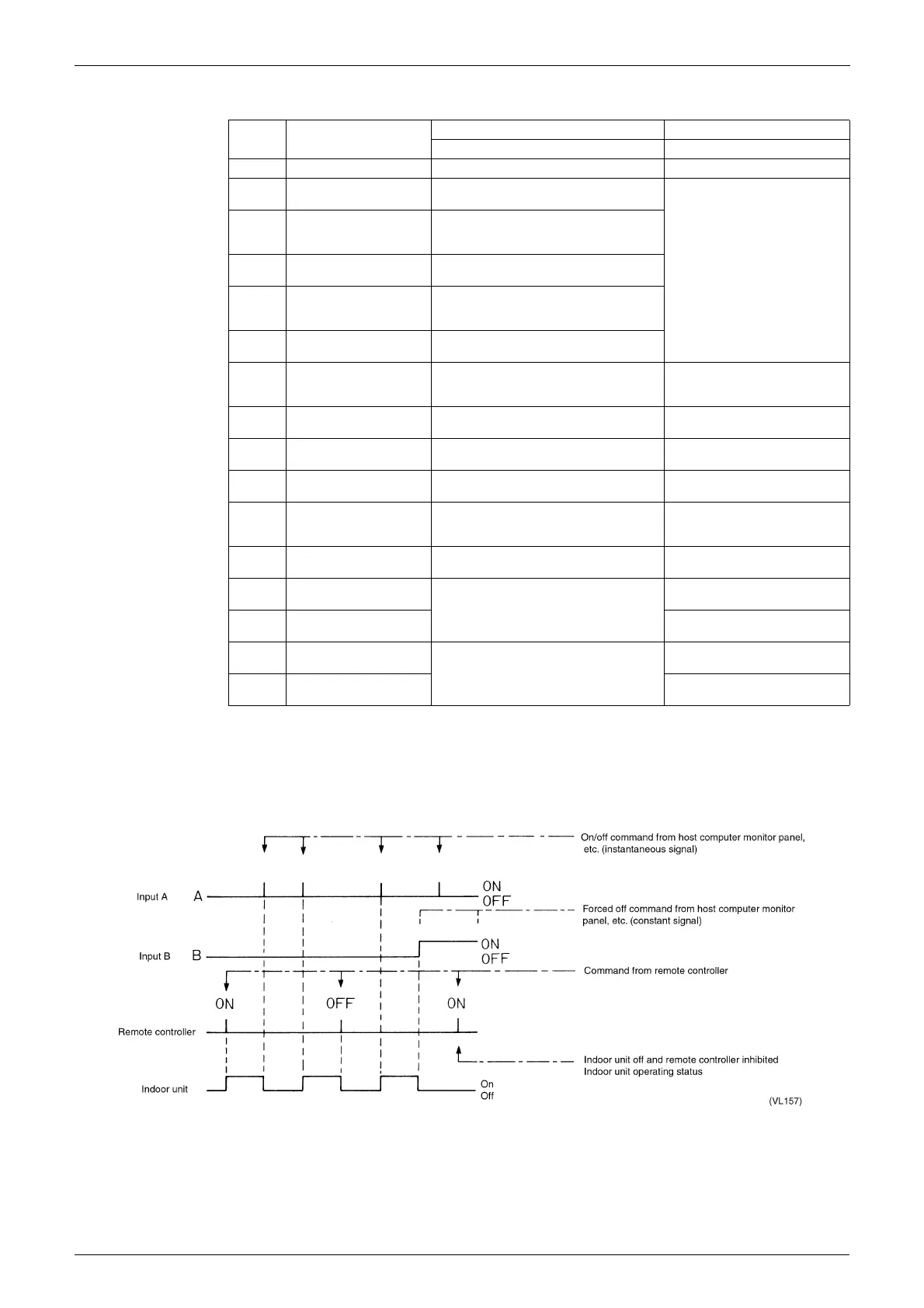

Example of when the remote control selector switch (RS1) is set to No. 6
Below are remote control commands relative to input signal and indoor unit time chart
Position Function Operation by input mode A and B
Input A (between B1~Bc) Input B (between B2~Bc)
0 Disregard input — —
1 Remote controller
inhibited
Operates by ON and stops by OFF Stops by ON, remote controller
inhibited Disregard input A Input
A permitted by OFF
2 Central priority Operates by ON (remote controller
permitted) and stops by OFF (remote
controller inhibited)
3 Remote controller
permitted / inhibited
Same as mode 1 (OFF by remote
controller always permitted)
4 Remote controller
permitted / inhibited /
OFF
ON by remote controller permitted, stops
by OFF (remote controller inhibited)
5 Remote controller
inhibited
ON / OFF (cyclic)
6 Individual Same as mode 5 (only OFF by remote
controller always permitted)
“Stops by ON, remote controller
inhibited Remote controller
permitted by OFF
7 Remote controller
inhibited
Operates by ON Stops by ON
8 Central priority Operates by ON (remote controller
permitted)
Inhibited by ON (remote
controller inhibited)
9 OFF by remote controller
permitted
Same as mode 7 (OFF by remote
controller always permitted)
Same as mode 7
A Remote controller
permitted / inhibited /
OFF
ON by remote controller permitted Remote controller inhibited by
ON
B Individual Same as mode 7 (remote controller
always permitted)
Same as mode 7
C Mode 5 + energy
efficiency control
Same as mode 5 Forced OFF by thermostat by
ON
D Mode 5 + room
temperature setting shift
Room temperature shift
operation by ON
E Mode 6 + energy
efficiency control
Same as mode 6 Forced OFF by thermostat by
ON
F Mode 6 + room
temperature setting shift
Room temperature shift
operation by ON
