PACD011001C2 Interface Adaptor
Appendix 617

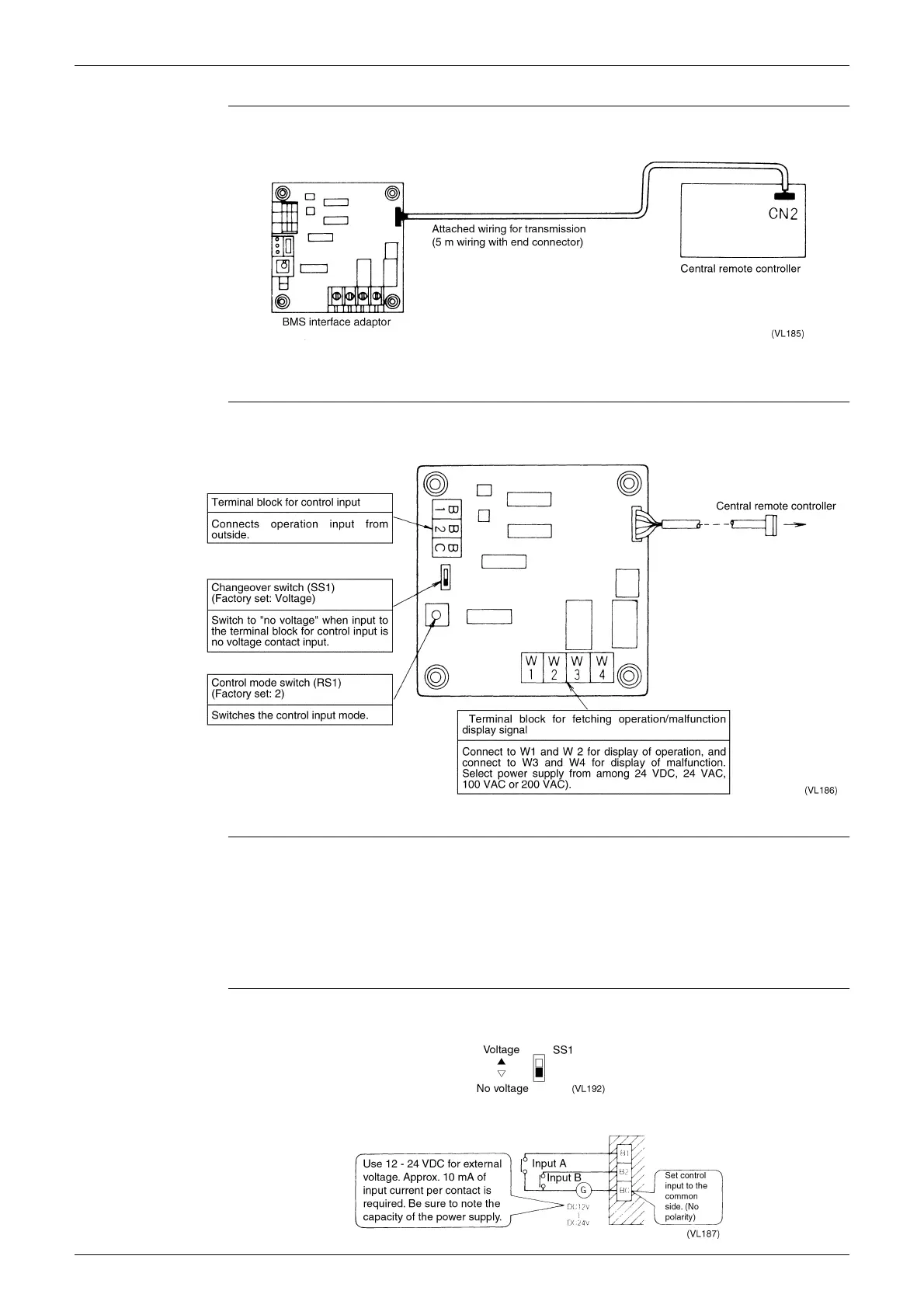

Wiring to Central
Remote Controller
Connect the BMS interface adaptor to connector No. CN2 of the central remote controller with the attached
wiring for transmission.
6.7.3 Wiring
Part Names and
Functions
External Control
Input (Wiring to
Host Computer
Monitor Panel, Etc.)
Specifications of wiring for transmission
‹
0.75~1.25 mm² sheathed vinyl cord or cable (double core), Max. length 150 m
6.7.4 Control Input (Unified ON/OFF Control)
Wire as described below according to whether input is “voltage” or “no voltage.”
Contact a Input for
Both Input A and B
(Voltage)
Set the changeover switch (SS1) to “voltage.”
(Factory set: Voltage)
„
The black part shows the position of the switch.
To Next Page
