Basic Connection
Connecting
to
aTelevision
and
a
Satellite
Receiver
Consult your satellite service provider about the appropriate satellite receiver to use.
Additional coaxial cable and audio/video (AV) cable are required.
If yourTV does not have
AV
IN
terminals (-+ 61).
Note:The
terminals
on
the
rear
of
your
TV
and
Satellite Receiver
may
not
appear
as
shown
below.
Please read
terminal
labels
carefully
to
ensure
correct
connections.
step
o
VHF/UHF
RF
IN
Satellite
anten
na
~'I-----t
step
!
To
a household AC outlet
®(AC 120
V,
60 Hz)
[®]

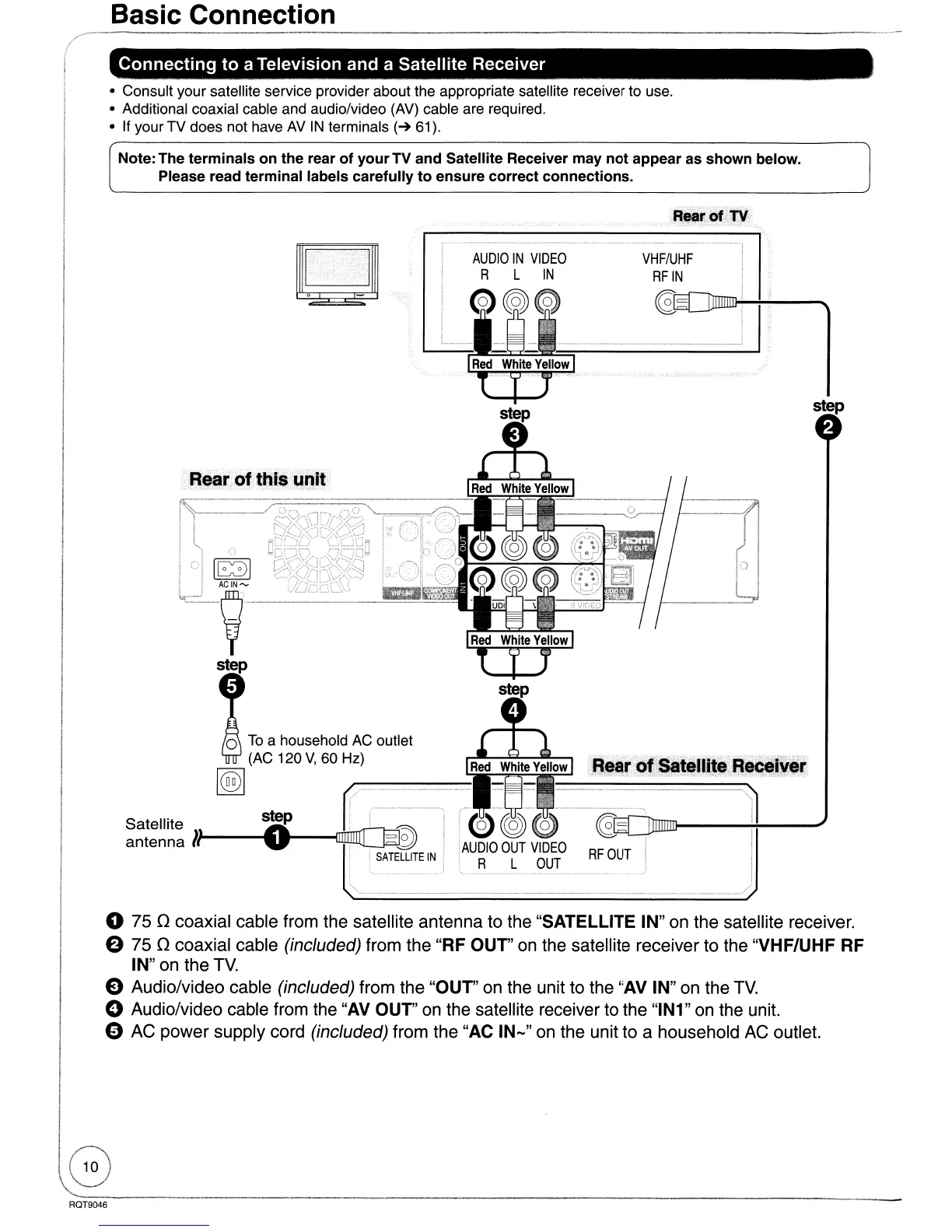

o 75 0 coaxial cable from the satellite antenna to the "SATELLITE IN" on the satellite receiver.
a
750
coaxial cable (included) from the "RF OUT"
on
the satellite receiver to the "VHF/UHF
RF
IN" on the
TV.
a Audio/video cable (included) from the "OUT" on the unit to the "AV IN" on the
TV.
o Audio/video cable from the "AV OUT"
on
the satellite receiver to the "IN1"
on
the unit.
e AC power supply cord (included) from the "AC
IN-"
on the unit to a household
AC
outlet.
G
RQT9046
